Radiator Inlet Hose Replacement (LEA)

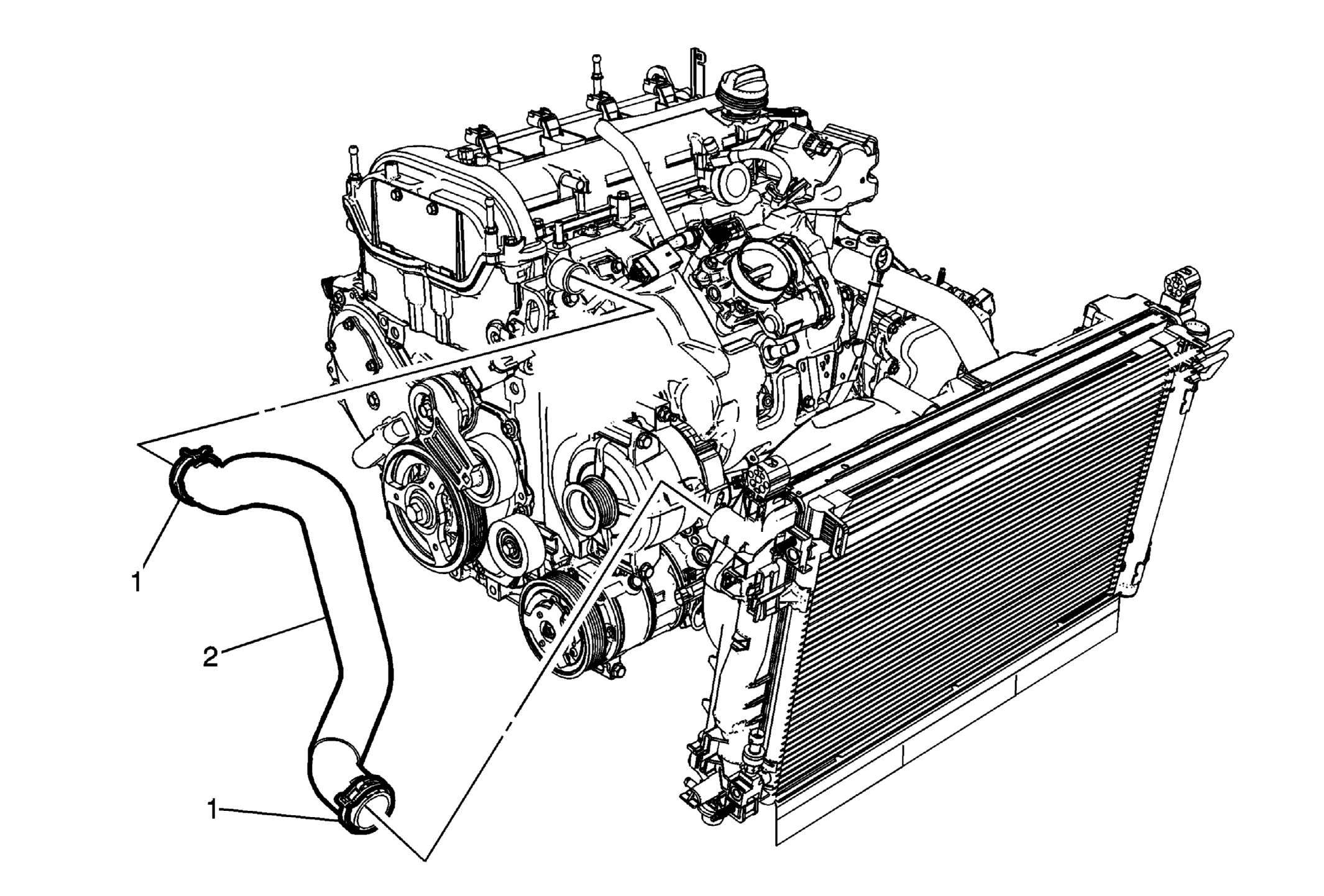

Fig 1: Radiator Inlet Hose (LEA)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) . Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1	Radiator Inlet Hose Clamp Procedure Reposition the radiator inlet hose clamp using BO38185 pliers. Special Tools BO38185 Hose Clamp Pliers For equivalent regional tools, refer to Special Tools .
2	Radiator Inlet Hose

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) .
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .

Radiator Inlet Hose Clamp
Procedure
Reposition the radiator inlet hose clamp using BO38185 pliers.
Special Tools
BO38185 Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools .

Radiator Inlet Hose
