Radiator Air Upper Baffle and Deflector Replacement (LUK)

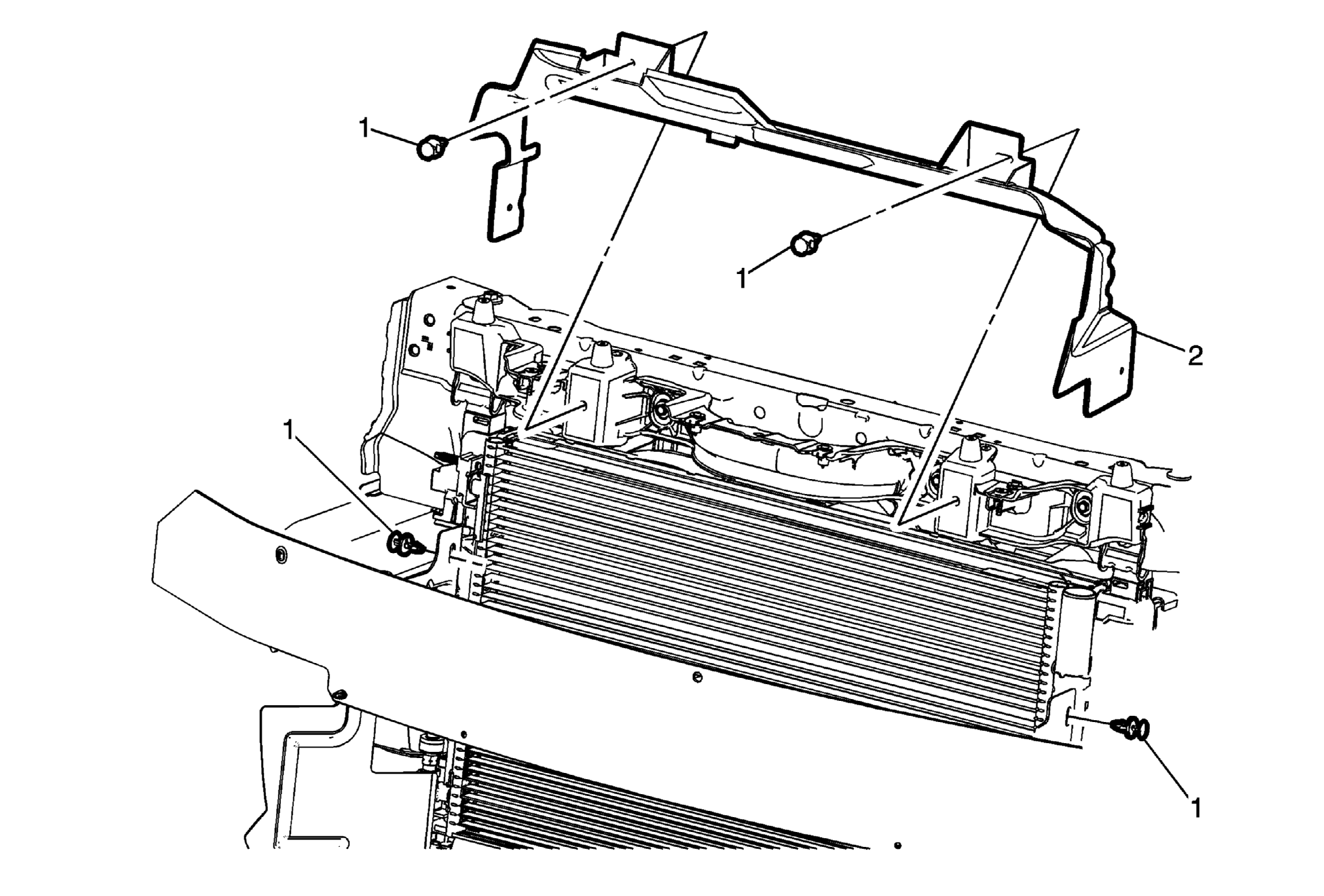

Fig 1: Radiator Air Upper Baffle & Deflector (LUK)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front fascia. Refer to Front Bumper Fascia Replacement . Remove the air cleaner inlet duct. Refer to Air Cleaner Inlet Duct Replacement .
1	Radiator Air Upper Baffle and Deflector Retainer (Qty4)
2	Radiator Air Upper Baffle and Deflector

Callout

Component Name

Preliminary Procedures

Remove the front fascia. Refer to Front Bumper Fascia Replacement .
Remove the air cleaner inlet duct. Refer to Air Cleaner Inlet Duct Replacement .

Radiator Air Upper Baffle and Deflector Retainer (Qty4)

Radiator Air Upper Baffle and Deflector
