Radiator Air Side Upper Baffle Replacement (Right LEA)

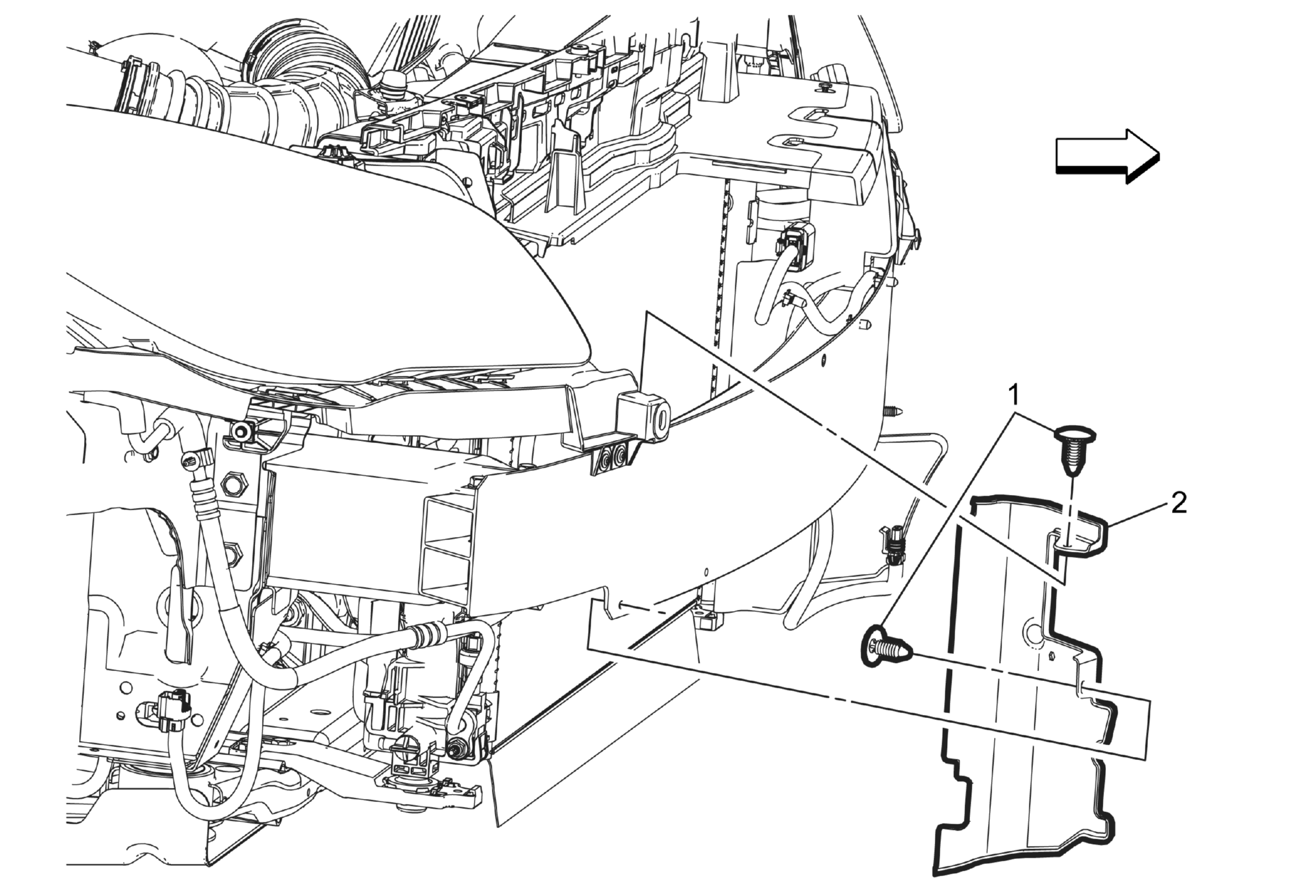

Fig 1: Radiator Air Side Upper Baffle (Right LEA)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the front fascia. Refer to Front Bumper Fascia Replacement .
1	Radiator Air Side Upper Baffle Retainer (Qty:2)
2	Radiator Air Side Upper Baffle
