Radiator Air Side Upper Baffle Replacement (Left LEA, LTG)

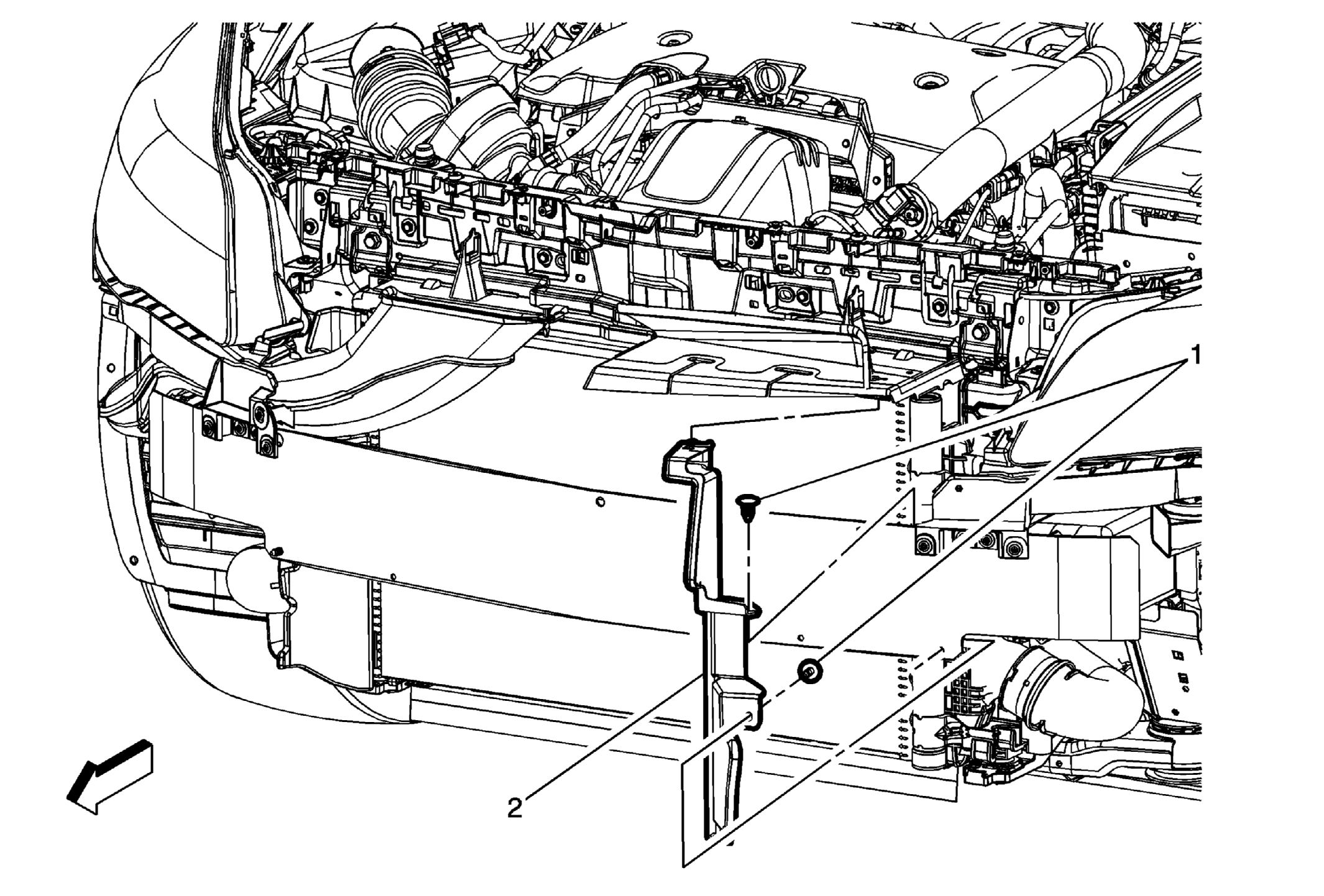

Fig 1: Radiator Air Side Upper Baffle (Left LEA, LTG)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front fascia. Refer to Front Bumper Fascia Replacement .
1	Radiator Air Side Upper Baffle Retainer (Qty:2)
2	Radiator Air Side Upper Baffle Procedure  Unclip the radiator air side upper baffle from the radiator air upper baffle and deflector.
