Radiator Air Side Baffle and Deflector Replacement (Right LUK)

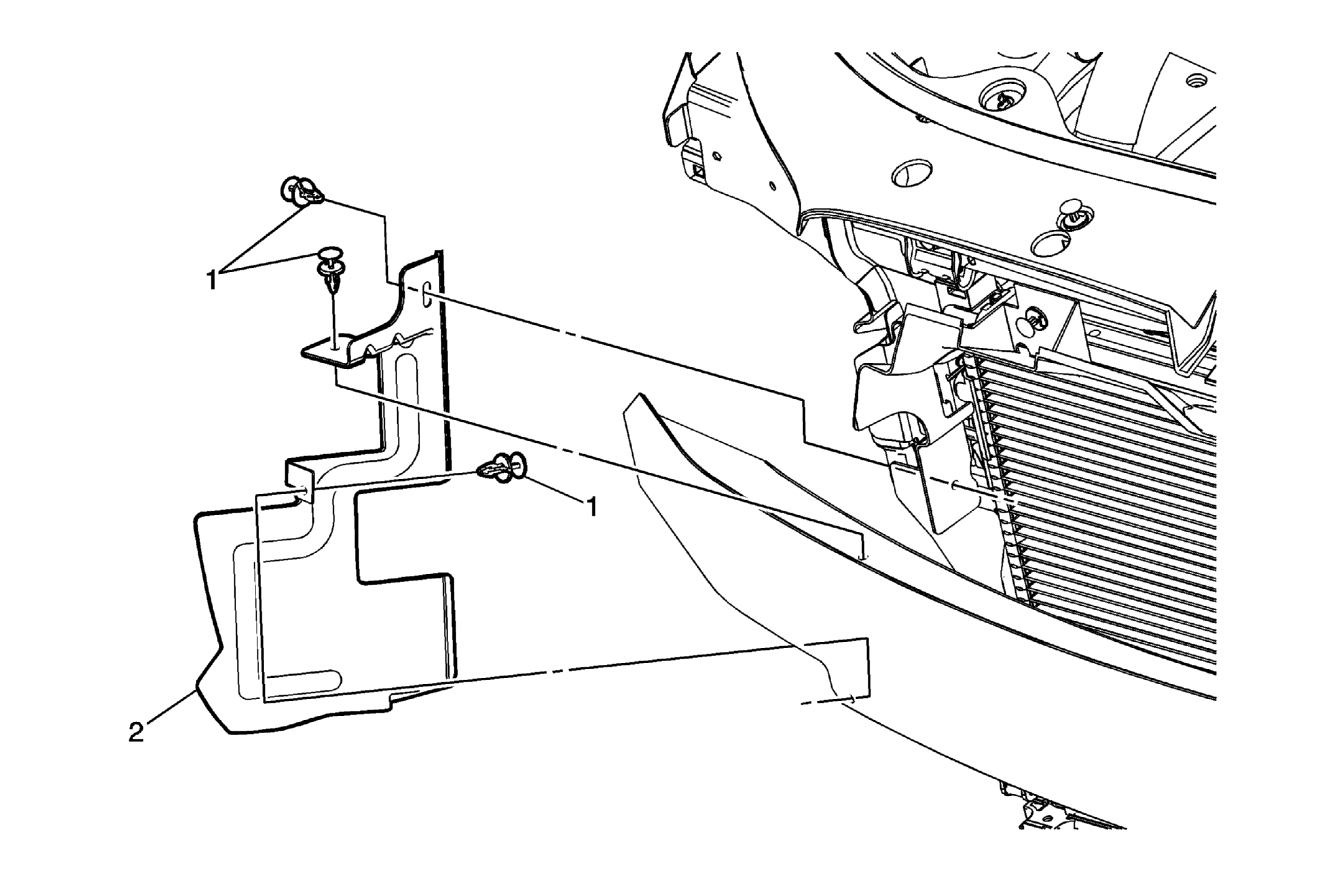

Fig 1: Radiator Air Side Baffle & Deflector (Right LUK)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the front fascia. Refer to Front Bumper Fascia Replacement .
1	Radiator Air Side Baffle and Deflector Retainer (Qty:3)
2	Radiator Air Side Baffle and Deflector
