Radiator Air Side Baffle and Deflector Replacement (Left LUK)

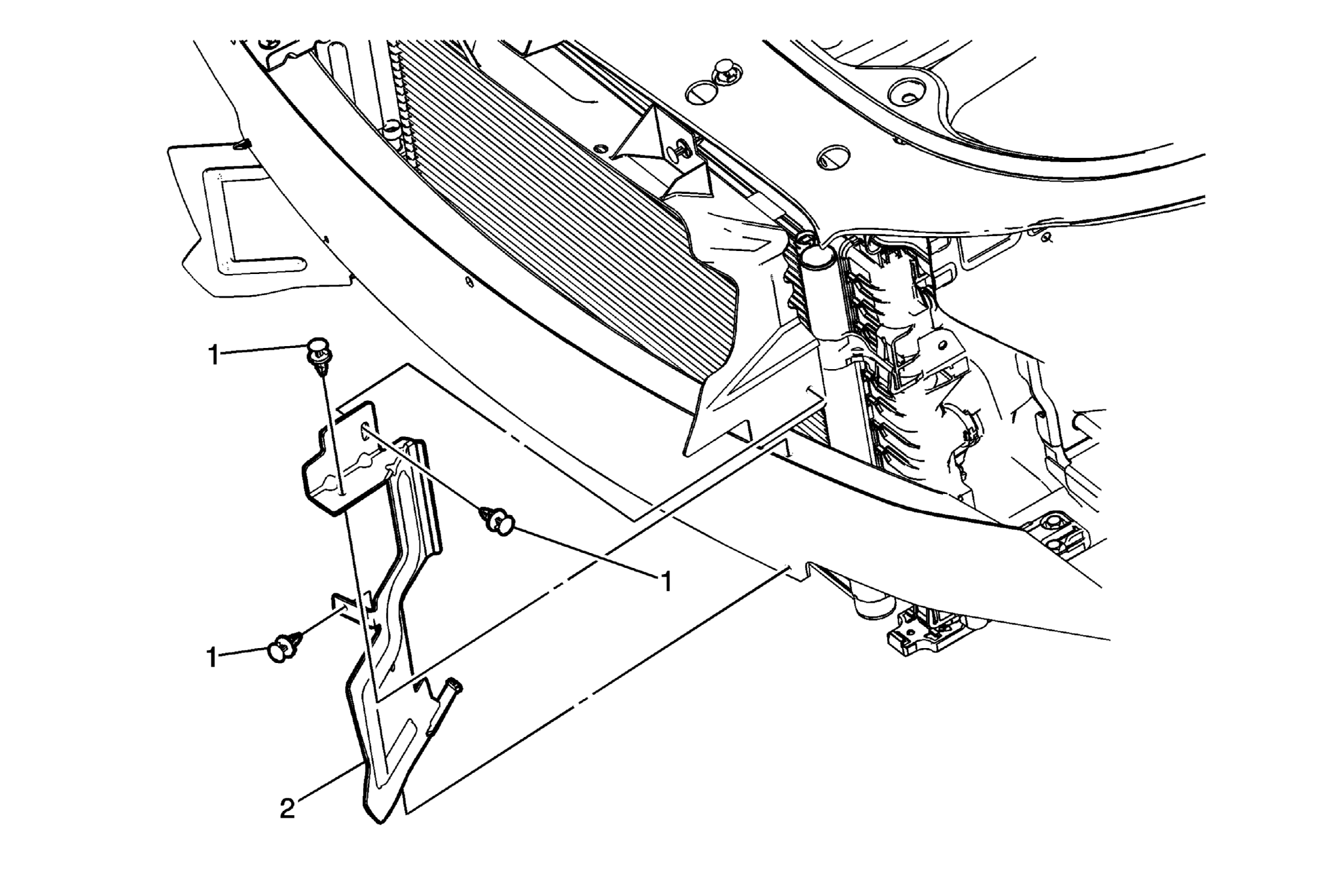

Fig 1: Radiator Air Side Baffle & Deflector (Left LUK

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the front fascia. Refer to Front Bumper Fascia Replacement
1	Radiator Air Side Baffel and Deflector Retainers (Qty3)
2	Radiator Air Side Baffel and Deflector
