Engine Coolant Fan Replacement (LUK)

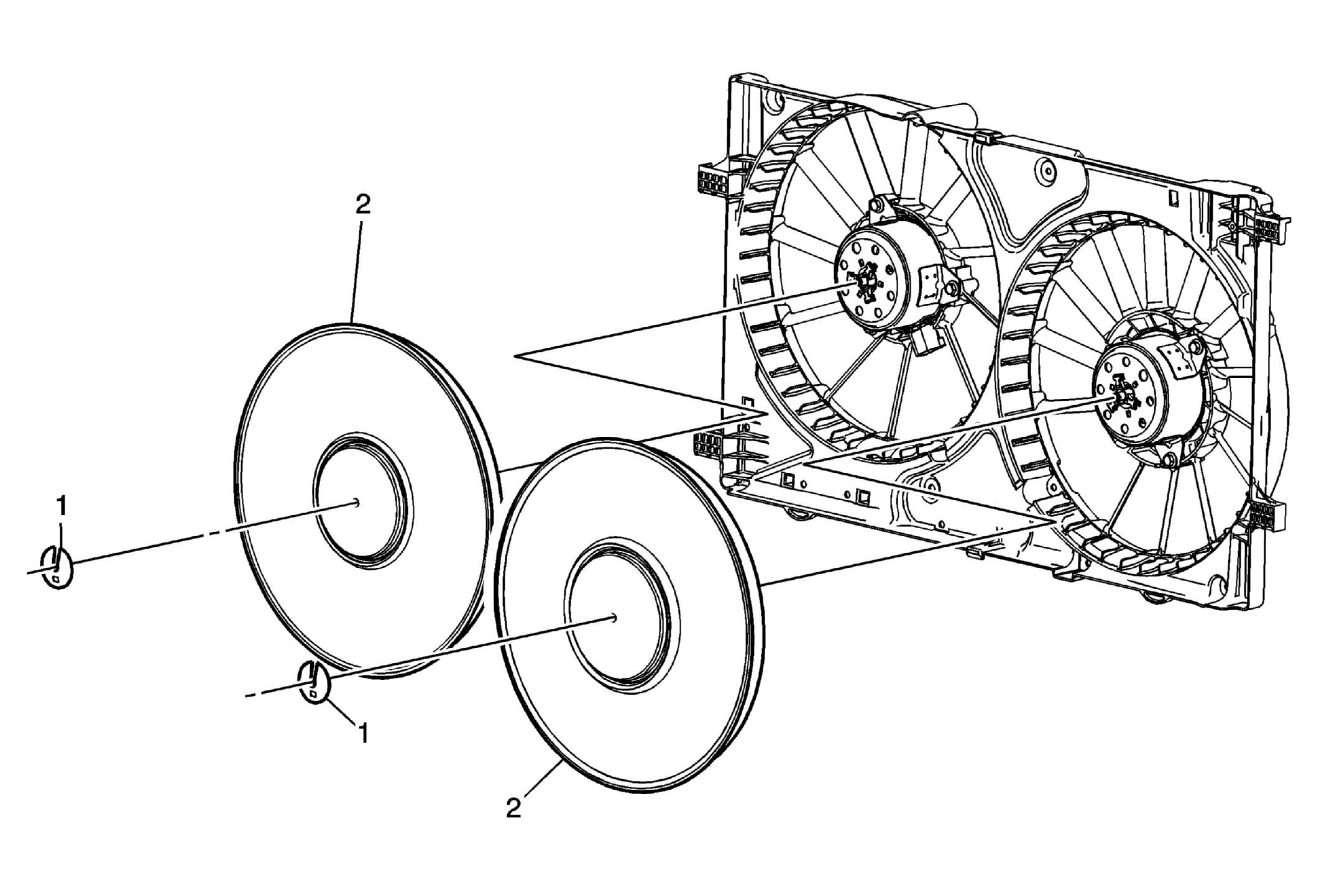

Fig 1: Engine Coolant Fan Components (LUK)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the engine coolant fan shroud. Refer to Engine Coolant Fan Shroud Replacement (LUK) .
1	Engine Coolant Fan Retainer (Qty:2)
2	Engine Coolant Fan (Qty:2)
