Engine Coolant Fan Motor Replacement (LUK)

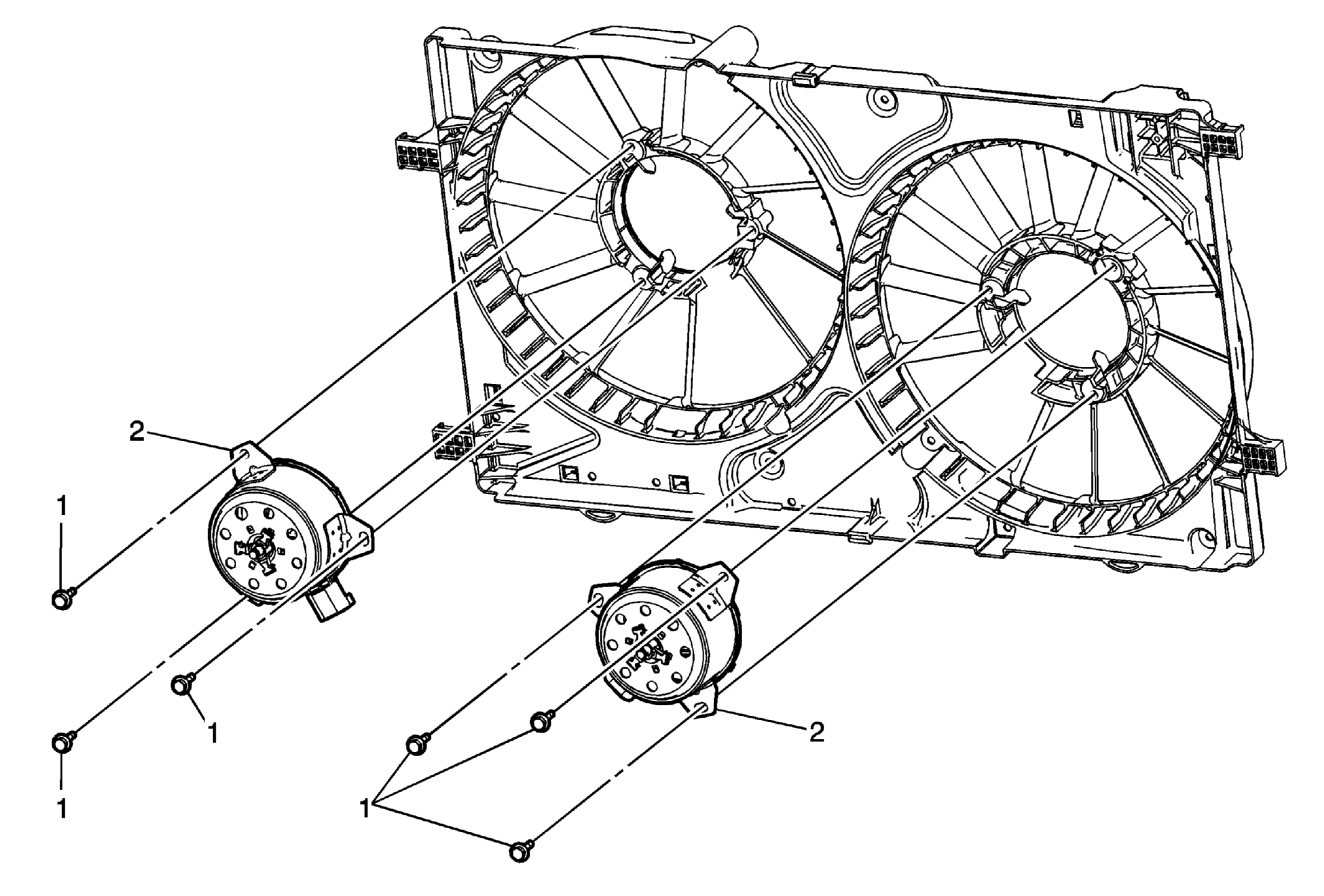

Fig 1: Engine Coolant Fan Motor (LUK)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the engine coolant fan. Refer to Engine Coolant Fan Replacement (LUK) .
1	Engine Coolant Fan Motor Bolt (Qty:6) CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Engine Coolant Fan Motor (Qty:2)
