Wiring Systems And Power Management - Wiring Harness Routing Views
>>
Wiring Harness Routing Diagrams
>>
Wiring Harness Routing Views
>>
Harness Routing ViewsEngine Harness Routing (LDK)
Harness Routing ViewsEngine Harness Routing (LDK)

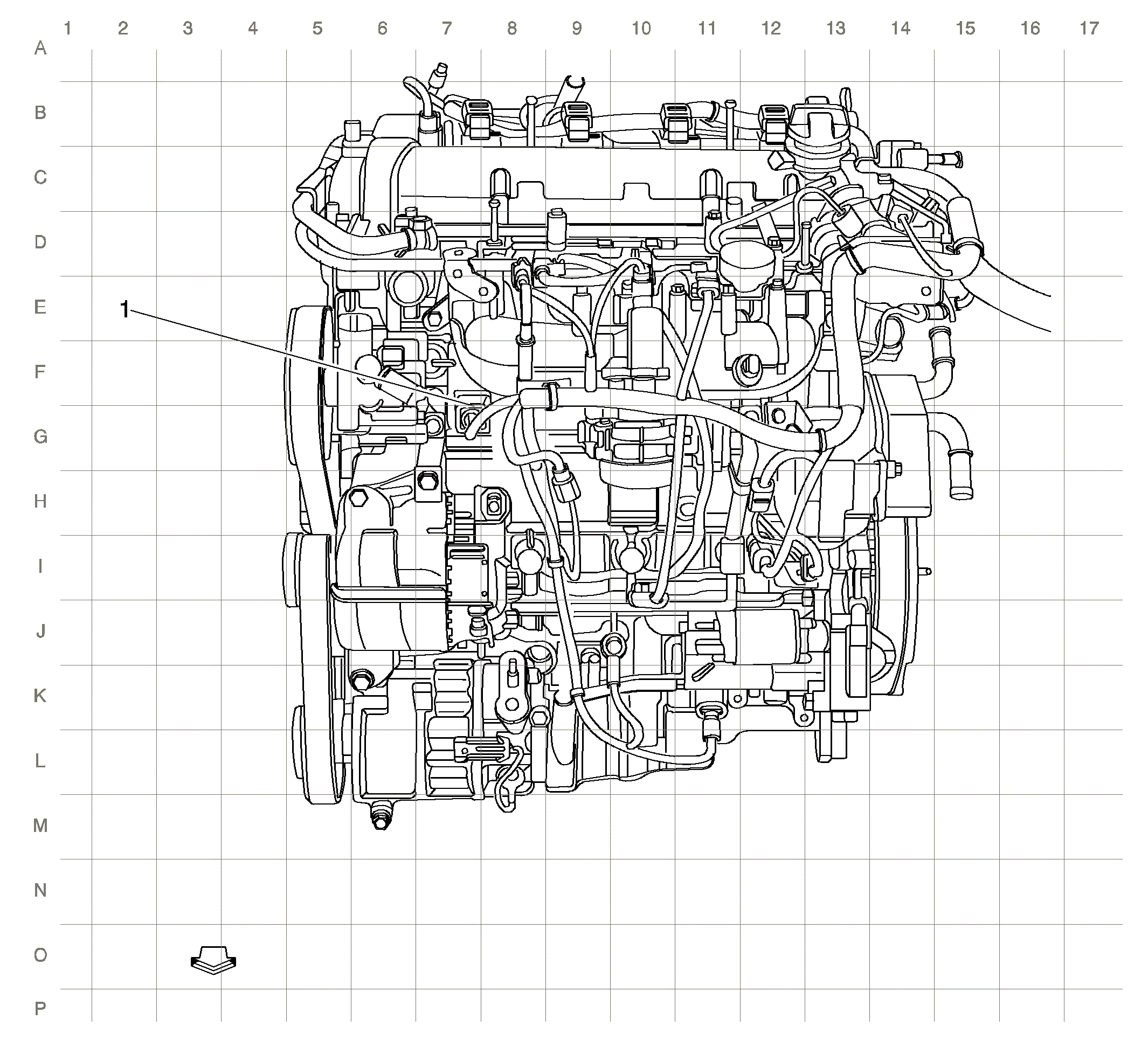

Fig 1: Engine Harness Routing (LDK)
Courtesy of GENERAL MOTORS COMPANY
Items
1:X160
X160 Engine Harness to Fuel Rail Harness
