Body Harness Routing - Left Front of Vehicle

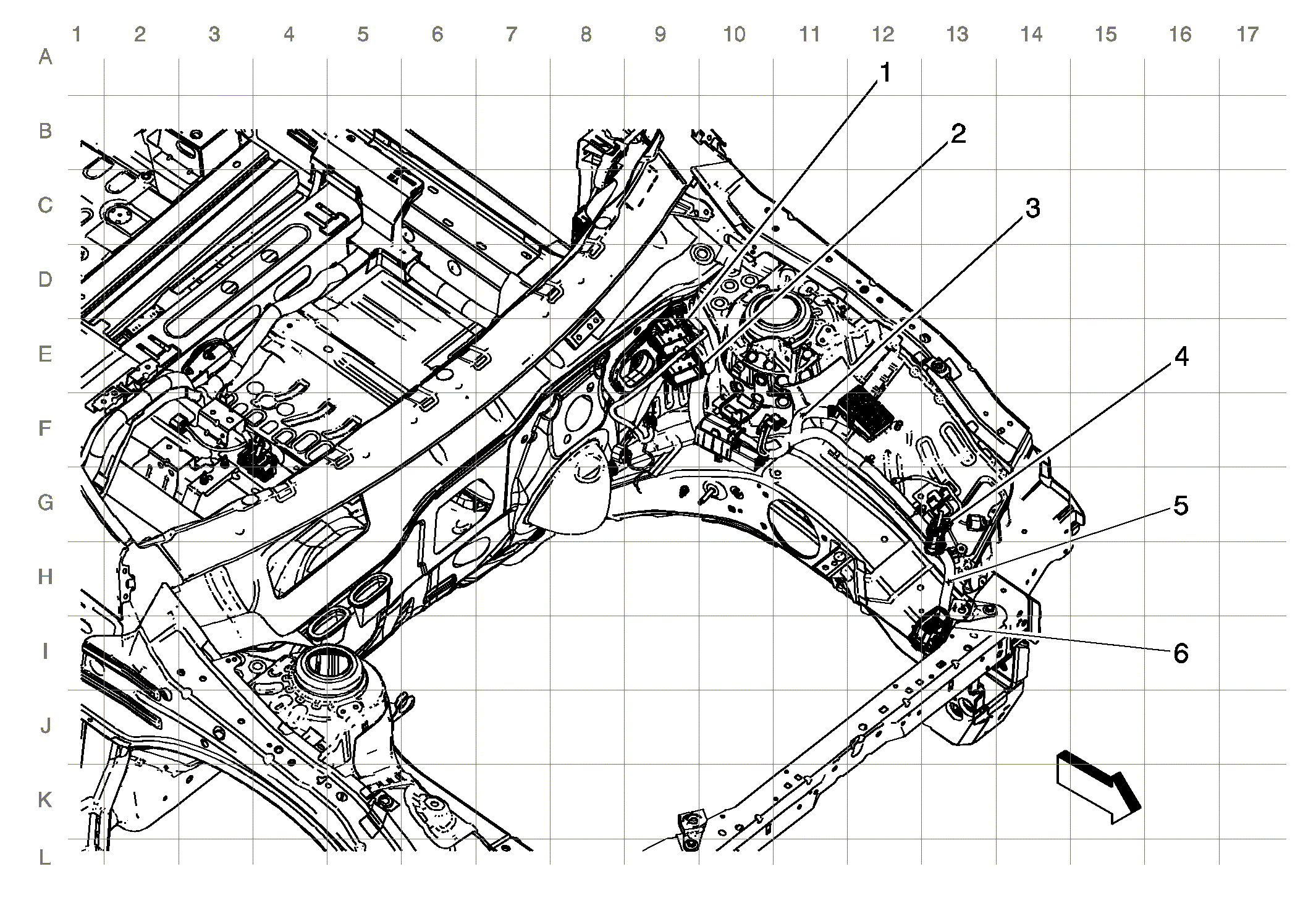

Fig 1: Body Harness Routing - Left Front of Vehicle

Courtesy of GENERAL MOTORS COMPANY

Items
1:X150 X150 Forward Lamp Harness to Body Harness
2:X151 (F45) X151 Forward Lamp Harness to Body Harness
3:J121 (LUK)
4:X122 (NU6) X122 Engine Harness to Body Harness (NU6)
5:J126 (MH8/MHH/M7U/M7W)
6:X115 X115 Engine Harness to Body Harness LUK/LEA/LTG
