Underhood Electrical Center or Junction Block Replacement

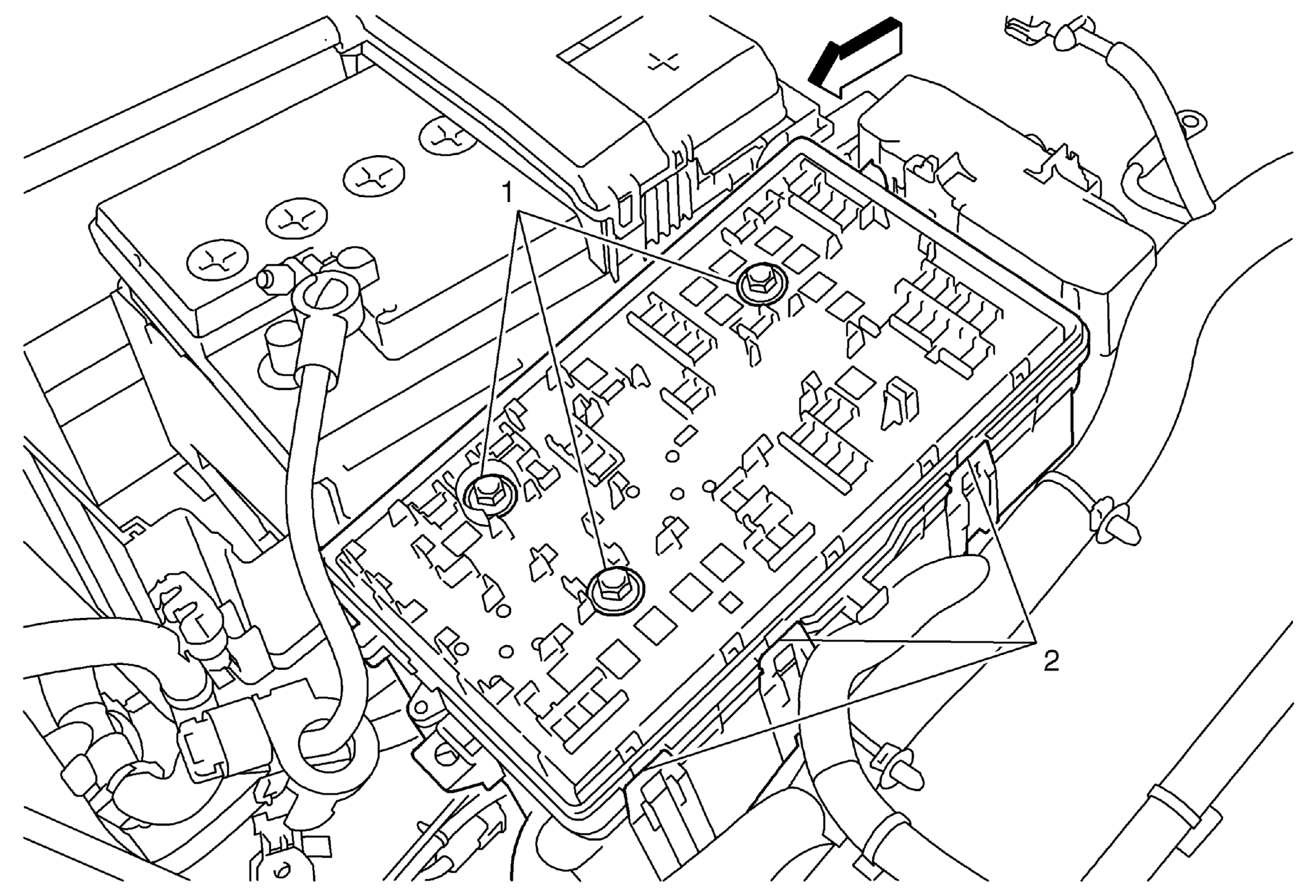

Fig 1: Underhood Electrical Center or Junction Block & Fasteners
GM2194326Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect the battery ground cable. Refer to Battery Negative Cable Replacement .
  2. Disconnect the battery positive and negative cable. Refer to Battery Positive and Negative Cable Replacement (LTG) or Battery Positive and Negative Cable Replacement (LEA, LUK) .
  3. Remove the front compartment fuse block housing cover. Refer to Front Compartment Fuse Block Housing Cover Replacement .
1 Underhood Electrical Center Fastener (Qty:3)
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Unscrew the underhood electrical center fasteners.

    Release the bolts far enough so that the wiring harness plug under the electrical center can drop down.

  2. After installing and tightening the underhood electrical center fasteners, it is necessary to check, if the green indicator rings under the fasteners be flush with the electrical center.

Tighten
7.2 N.m (64 lb in)
2 Front Compartment Fuse Block

Procedure

  1. Release the front compartment fuse block.
  2. Lift the underhood fuse block to remove.
  3. Transfer fuses and relays as needed.
