Front Compartment Fuse Block Housing Cover Replacement
Front Compartment Fuse Block Housing Cover Replacement

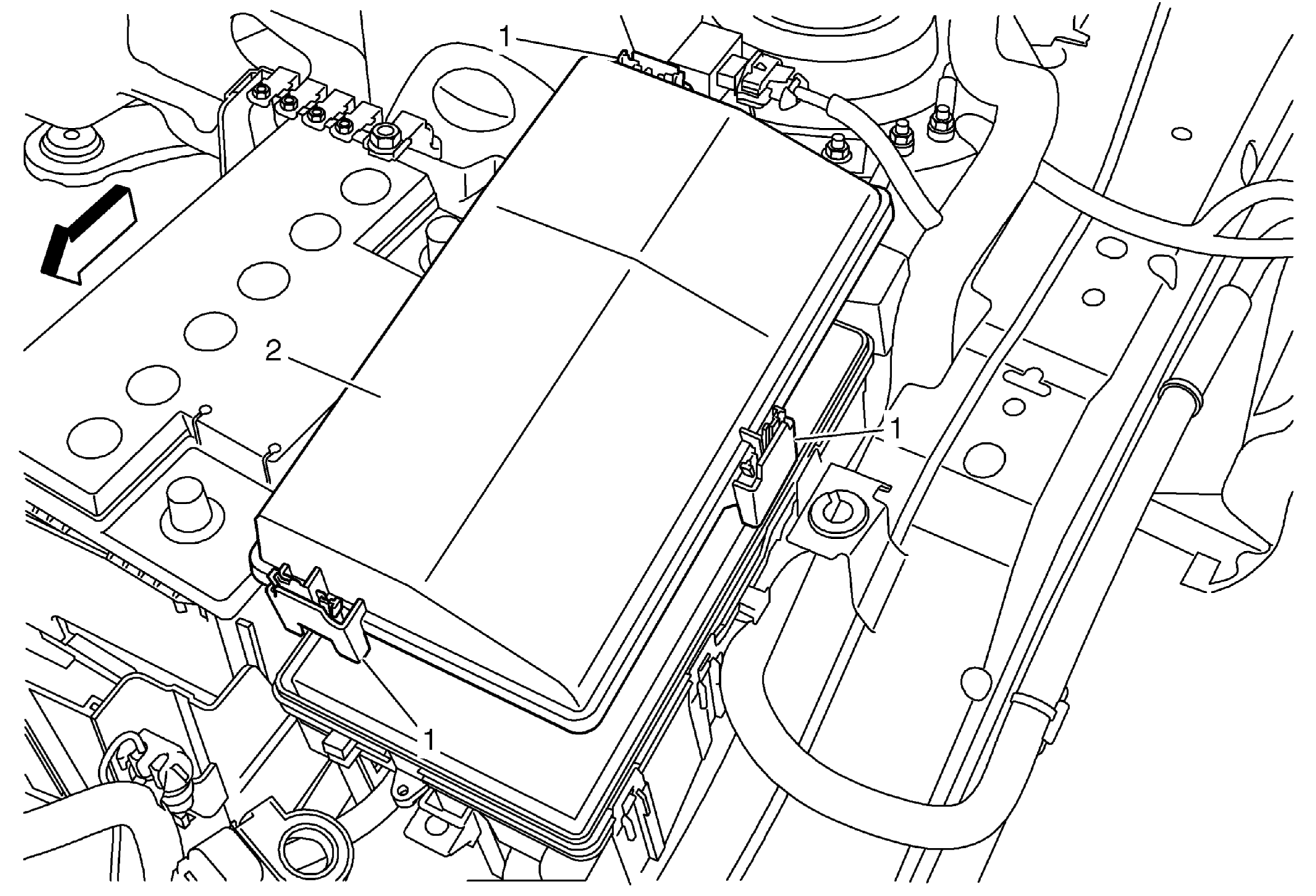

Fig 1: Front Compartment Fuse Block Housing Cover
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Front Compartment Fuse Block Housing Cover Latch
Procedure
Release the front compartment fuse block housing cover on 3 points.
2
Front Compartment Fuse Block Housing Cover
Procedure
Lift the front compartment fuse block housing cover.
