Ignition and Start Switch Housing Replacement

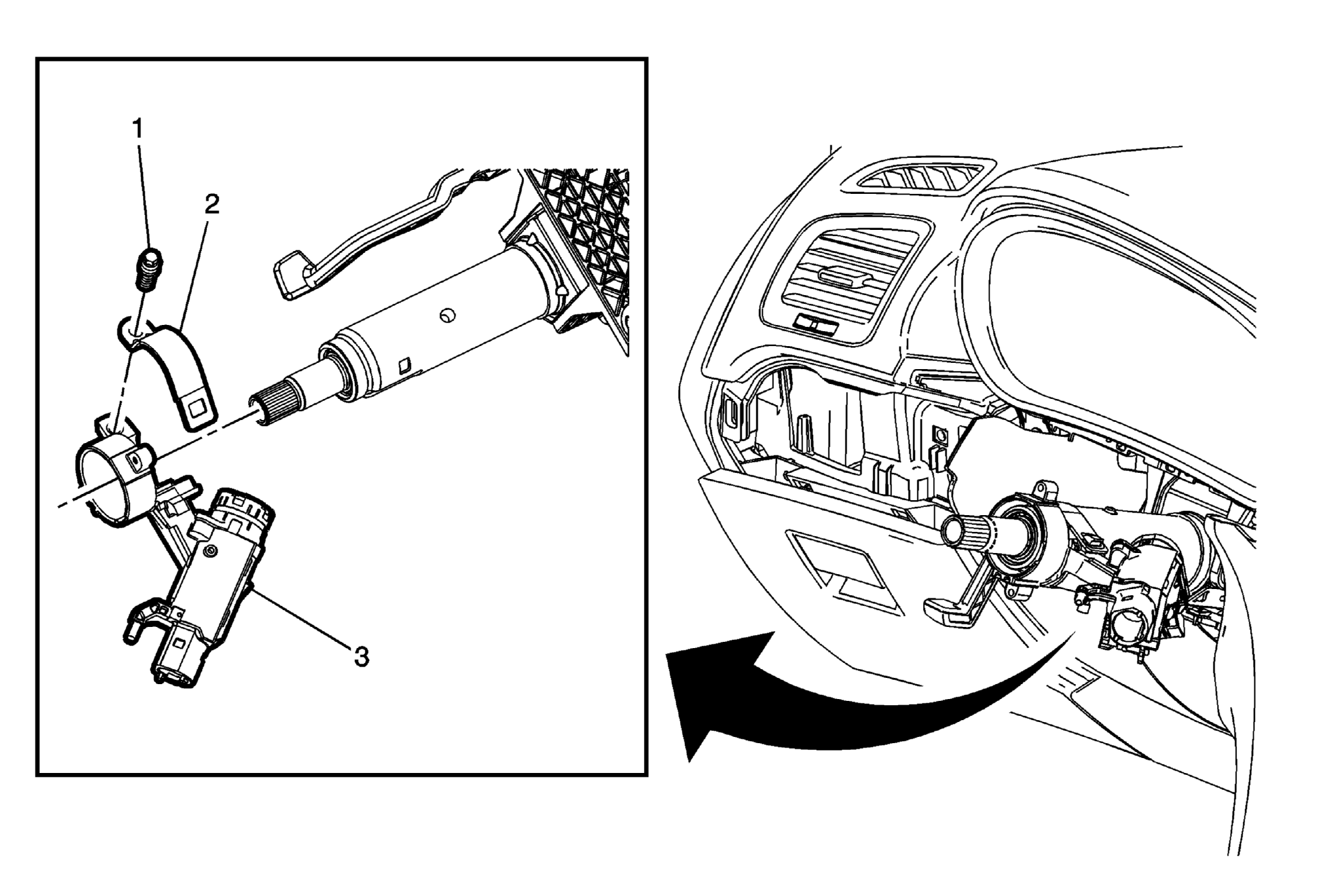

Fig 1: Ignition and Start Switch Housing
GM3423586Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Turn Signal Switch Bracket Replacement (Without BTM) or Turn Signal Switch Bracket Replacement (With BTM)
1 Ignition and Start Switch Housing Bolt
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Use a small hammer and chisel to remove the OLD ignition and start switch housing bolt.

    DISCARD the bolt.

  2. Install the NEW ignition and start switch housing bolt and tighten until the bolt head breaks off.
2 Ignition and Start Switch Housing Strap
3 Ignition and Start Switch Housing

Procedure

  1. Disconnect the electrical connector.
  2. Transfer components as necessary.
