120-Volt Accessory Power Receptacle Replacement

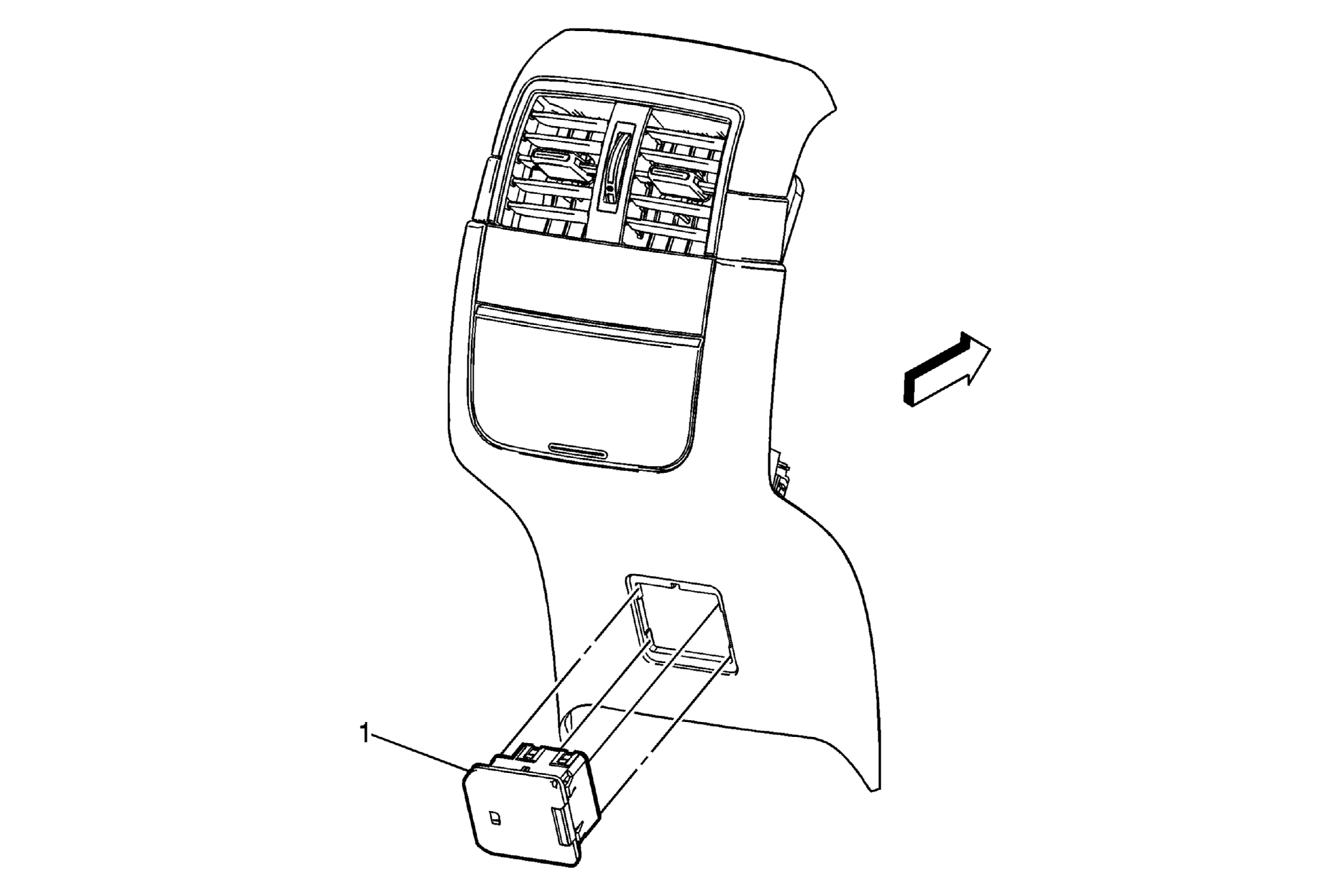

Fig 1: 120-Volt Accessory Power Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front floor console rear cover panel. Refer to Front Floor Console Rear Cover Replacement .
1	Accessory Power Receptacle Assembly Procedure  Push in the 4 tabs to release the accessory power receptacle from the rear console trim plate.
