Accessory Switch Replacement

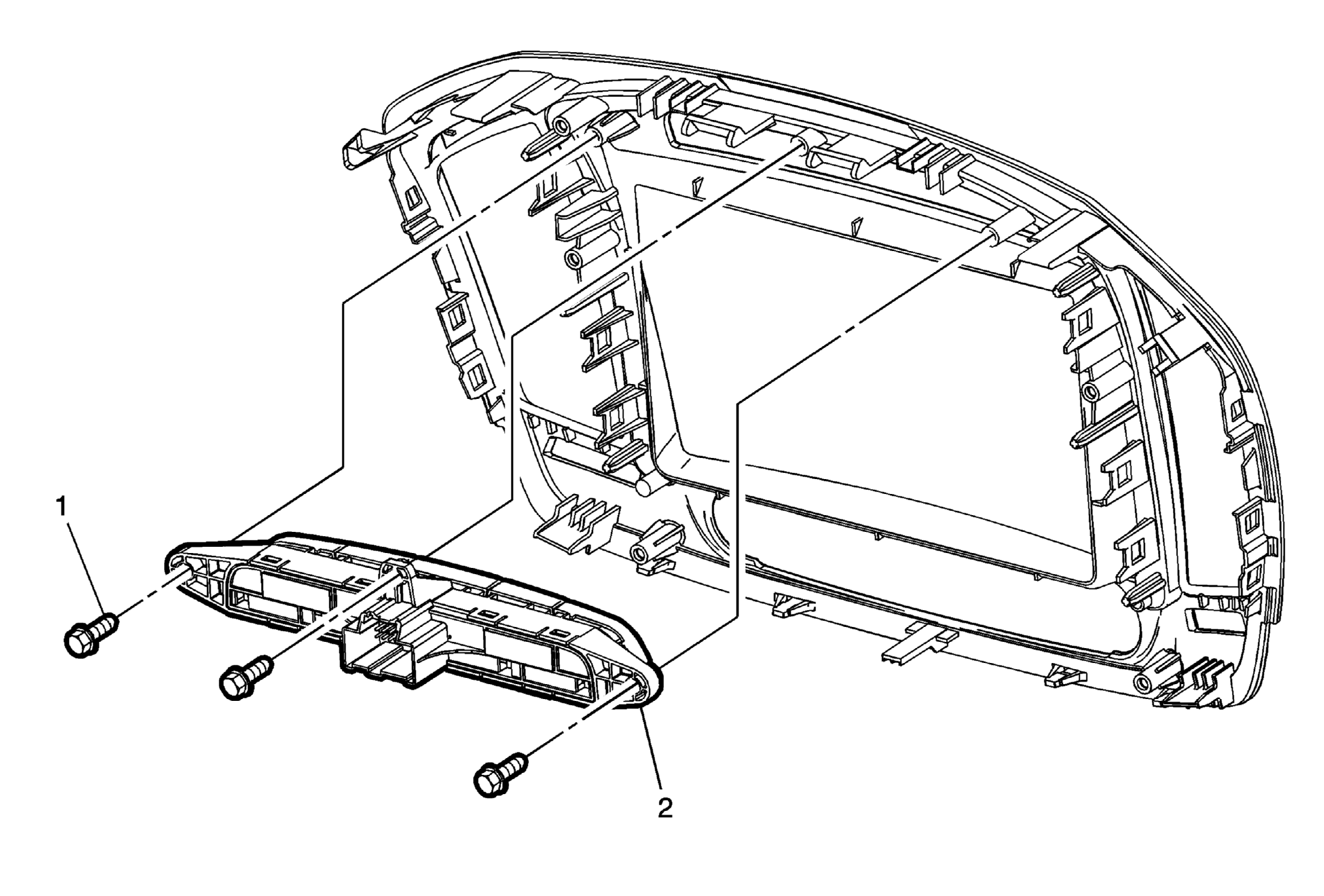

Fig 1: Accessory Switch
GM3431706Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel upper center trim panel. Refer to Instrument Panel Upper Center Trim Panel Replacement .
1 Accessory Switch Panel Fasteners (Qty:3)
CAUTION:

Refer to Fastener Caution .


Tighten
10.75 N.m (95 lb in )
2 Accessory Switch
