Limited Slip Differential Clutch Pipe Connector Replacement

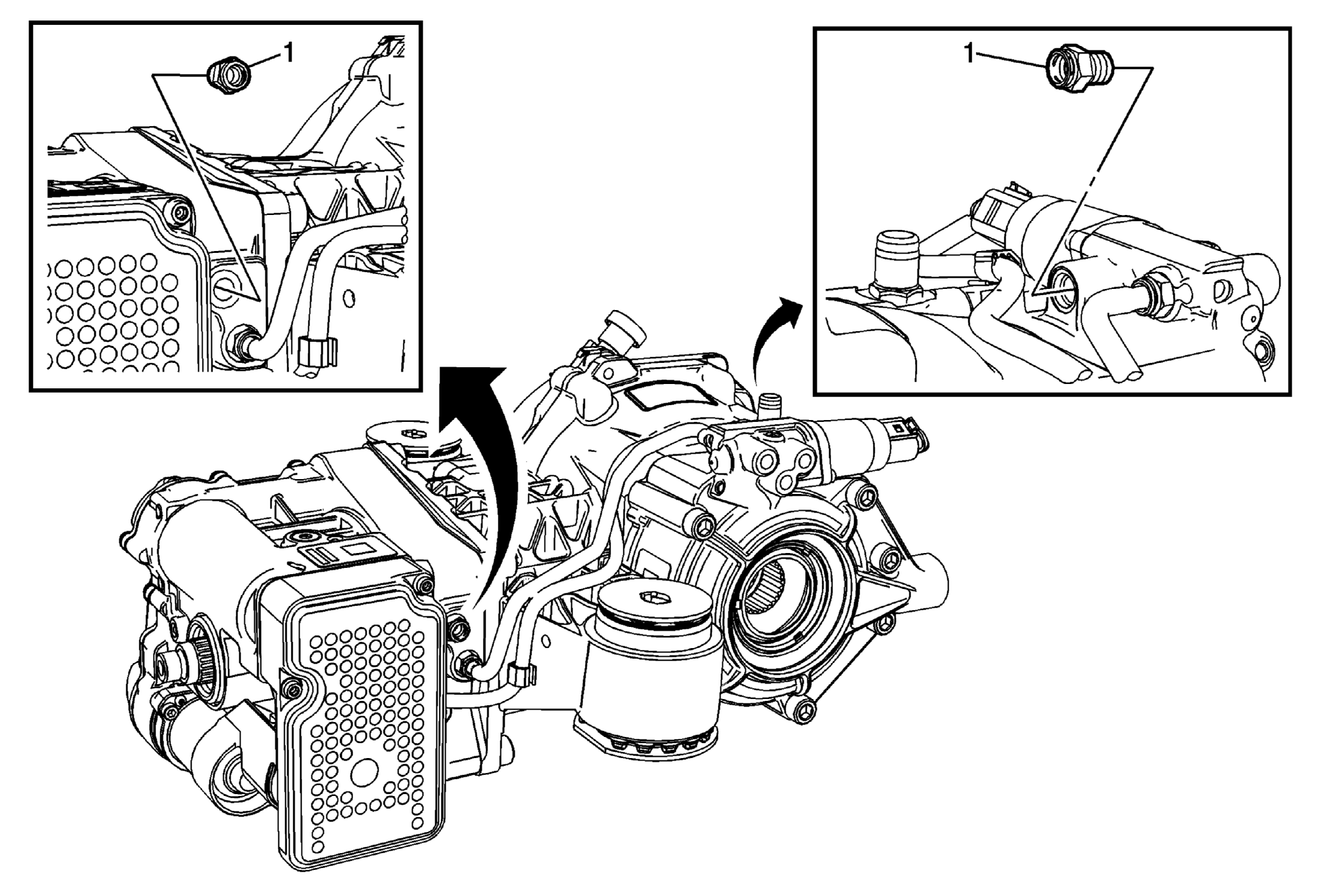

Fig 1: Limited Slip Differential Clutch Pipe Connectors

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAUTION: It is very important to observe maximum cleanliness when working on the differential clutch. Dirt particles can seriously damage the function and service life of the differential clutch. Preliminary Procedure Remove the rear differential carrier assembly. Refer to Differential Carrier Assembly Replacement .
1	Limited Slip Differential Clutch Pipe Connectors (Qty:4) WARNING: The hydraulic pressure in the differential clutch is very high. To prevent personal injury, wait for at least 10 minutes before removing any parts from the differential clutch. CAUTION: Refer to Fastener Caution . Procedure Remove the limited slip differential clutch low pressure pipe, refer to Limited Slip Differential Clutch Low Pressure Pipe Replacement , or limited slip differential clutch high pressure pipe, refer to Limited Slip Differential Clutch High Pressure Pipe Replacement . Check the fluid level of the rear differential clutch. Refer to Differential Clutch Oil Inspection . Tighten 7 N.m (62 lb in)

Callout

Component Name

CAUTION:

It is very important to observe maximum cleanliness when working on the differential clutch. Dirt particles can seriously damage the function and service life of the differential clutch.

Preliminary Procedure Remove the rear differential carrier assembly. Refer to Differential Carrier Assembly Replacement .

Limited Slip Differential Clutch Pipe Connectors (Qty:4)

WARNING:

The hydraulic pressure in the differential clutch is very high. To prevent personal injury, wait for at least 10 minutes before removing any parts from the differential clutch.

CAUTION:

Refer to Fastener Caution .

Procedure

Remove the limited slip differential clutch low pressure pipe, refer to Limited Slip Differential Clutch Low Pressure Pipe Replacement , or limited slip differential clutch high pressure pipe, refer to Limited Slip Differential Clutch High Pressure Pipe Replacement .
Check the fluid level of the rear differential clutch. Refer to Differential Clutch Oil Inspection .

Tighten
7 N.m (62 lb in)
