Limited Slip Differential Clutch Low Pressure Pipe Replacement

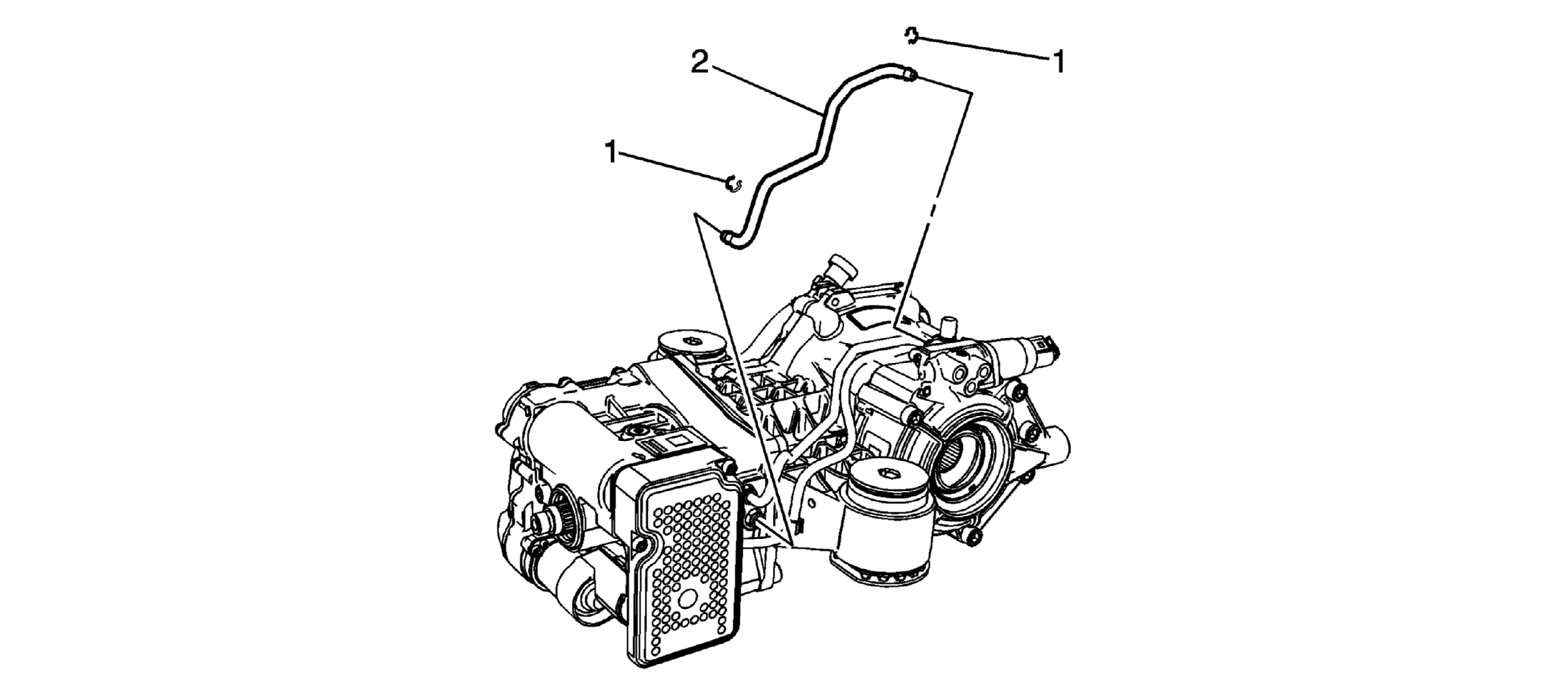

Fig 1: View Of Limited Slip Differential Clutch Low Pressure Pipe & Springs

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAUTION: It is very important to observe maximum cleanliness when working on the differential clutch. Dirt particles can seriously damage the function and service life of the differential clutch. Preliminary Procedure Remove the differential carrier assembly. Refer to Differential Carrier Assembly Replacement .
1	Limited Slip Differential Clutch Low Pressure Pipe Spring (Qty:2) Procedure Using a small pick or flat bladed screwdriver, remove and discard the spring from the connector and replace with NEW. TIP: Ensure that the pipe is fully inserted into the connector before installing the spring.
2	Limited Slip Differential Clutch Low Pressure Pipe WARNING: The hydraulic pressure in the differential clutch is very high. To prevent personal injury, wait for at least 10 minutes before removing any parts from the differential clutch. Procedure Check the fluid level of the rear differential clutch. Refer to Differential Clutch Oil Inspection .
