Installation Procedure

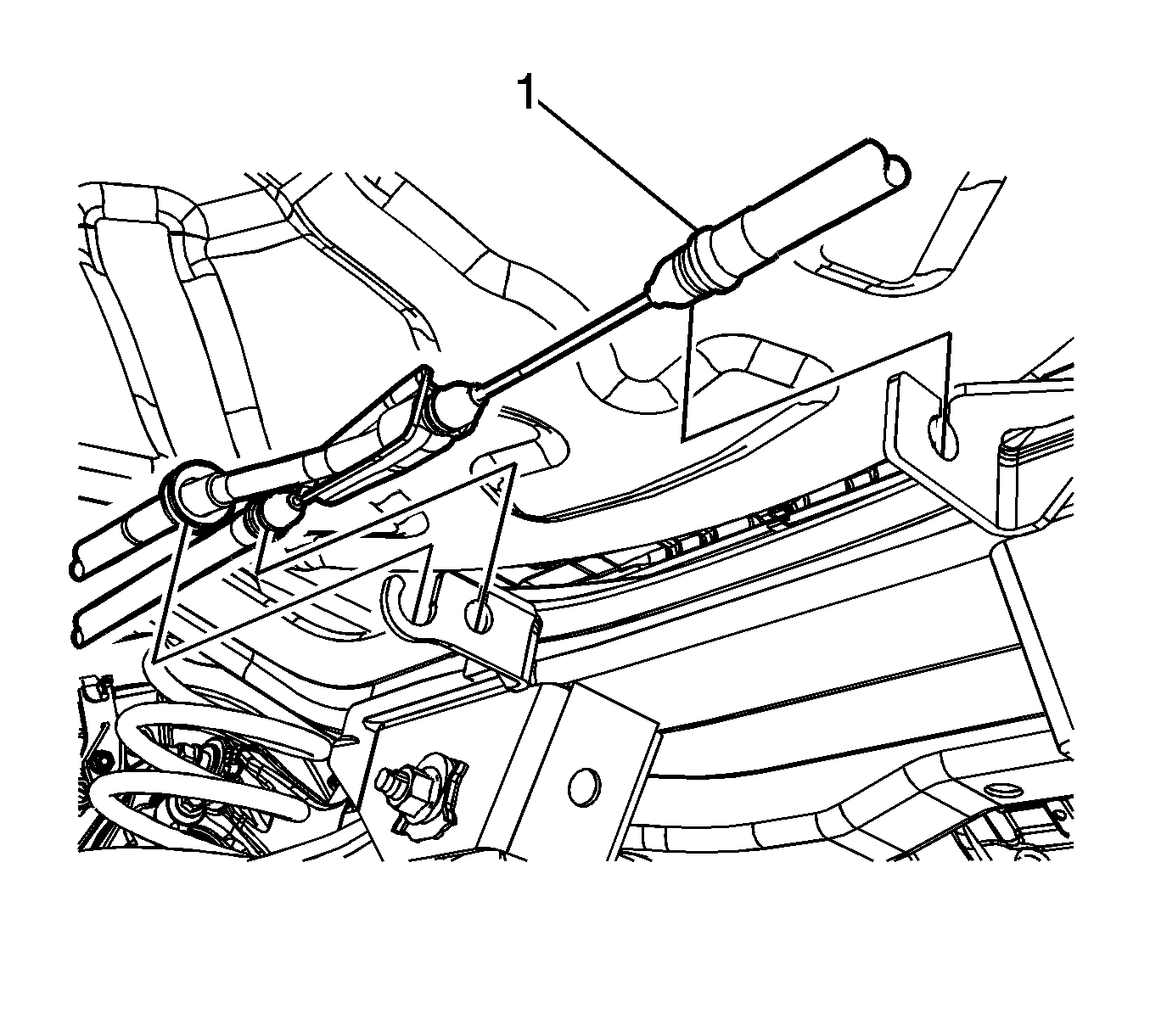

    Fig 1: Rear Parking Brake Cable
    GM2347613Courtesy of GENERAL MOTORS COMPANY
  1. Install the rear parking brake cable (1).

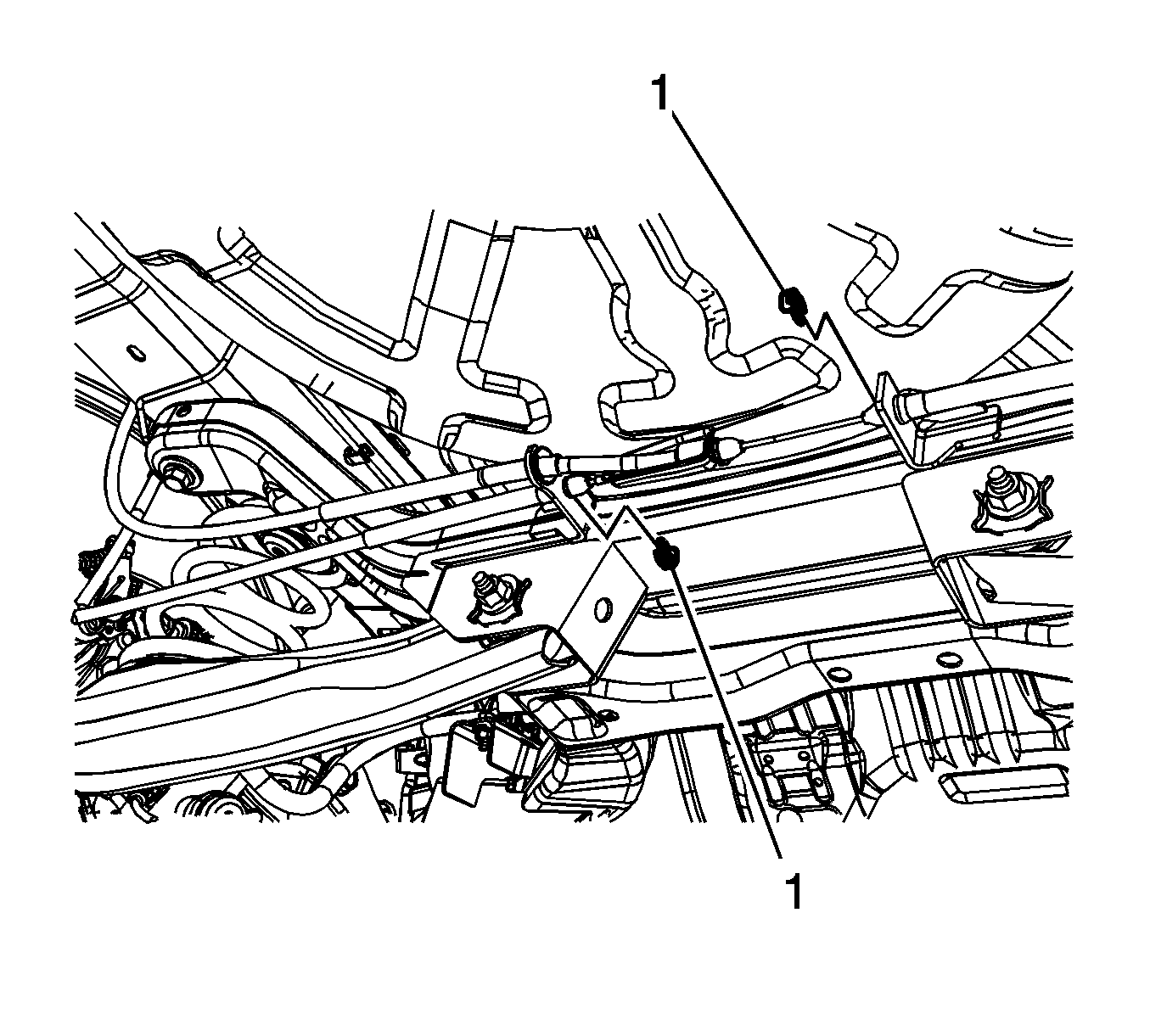

    2. Fig 2: Rear Parking Brake Cable Retainers And Rear Frame
    GM2347597Courtesy of GENERAL MOTORS COMPANY
  2. Install the rear parking brake cable retainers (1) on the rear frame.

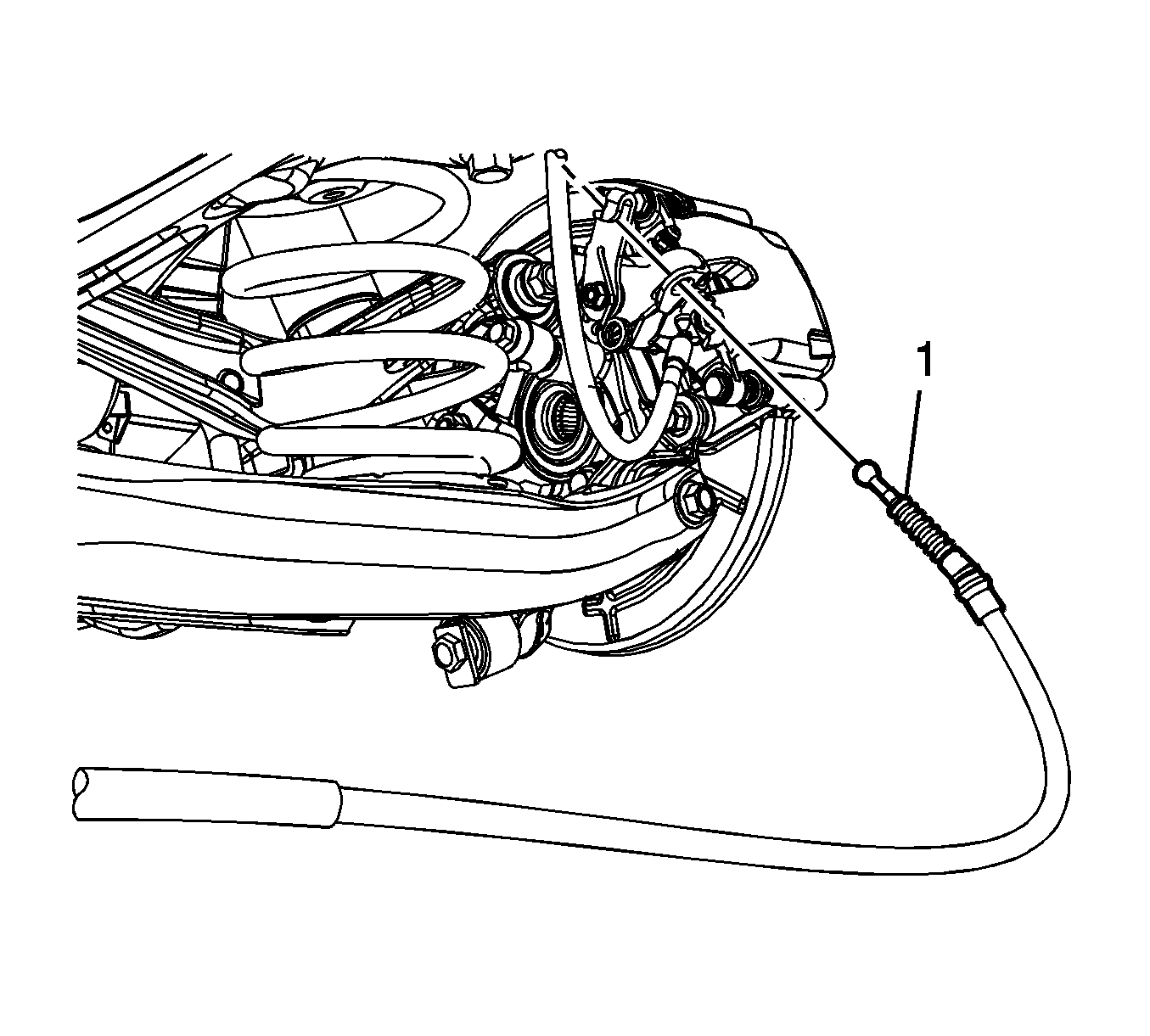

    3. Fig 3: Rear Parking Brake Cable, Parking Brake Actuator Lever And Right Rear Brake Caliper
    GM2347593Courtesy of GENERAL MOTORS COMPANY
  3. Install the rear parking brake cable (1) to the right rear brake caliper and connect the cable to the parking brake actuator lever.

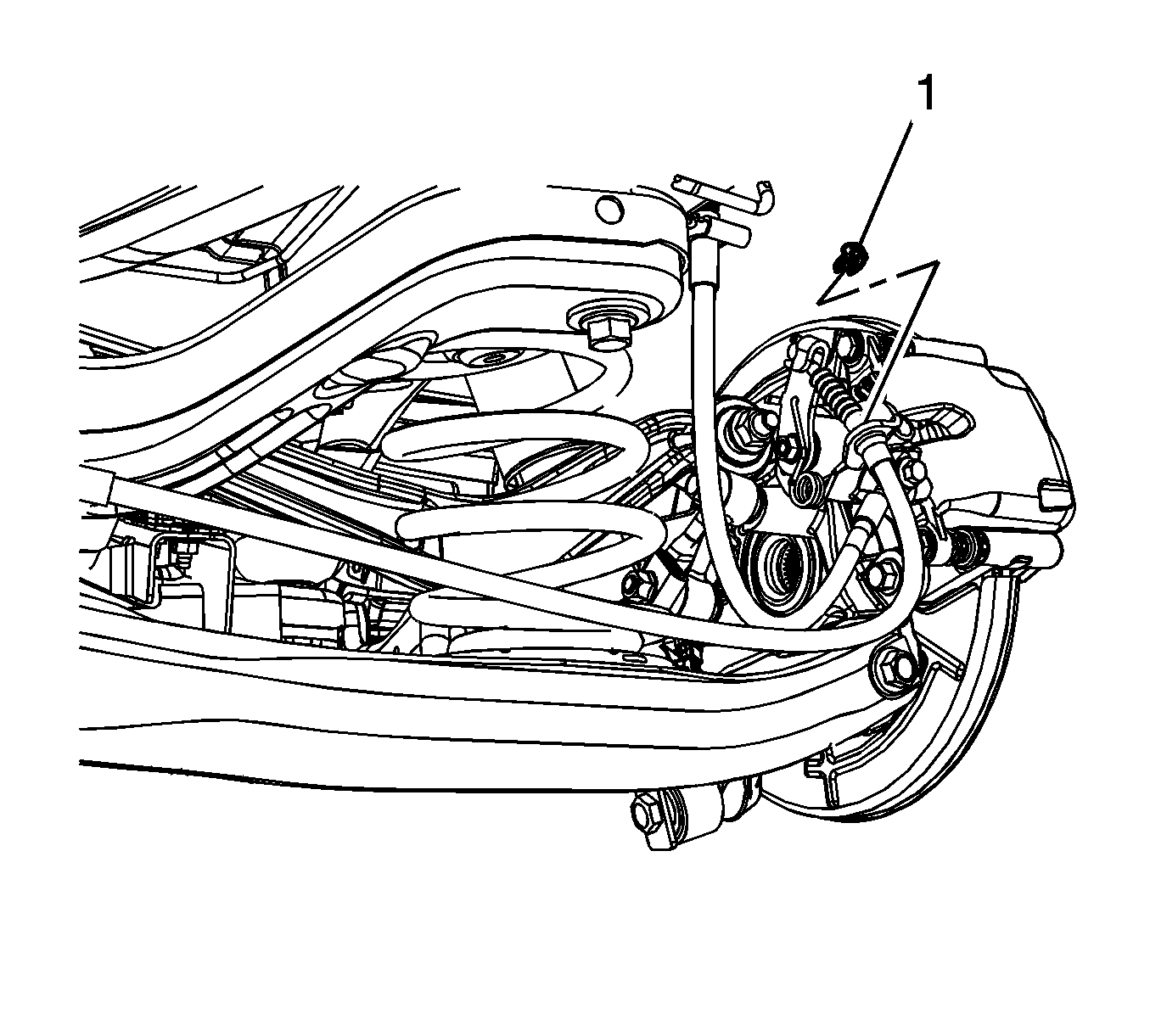

    4. Fig 4: Right Rear Parking Brake Cable Retainer
    GM2347590Courtesy of GENERAL MOTORS COMPANY
  4. Install the right rear parking brake cable retainer (1).

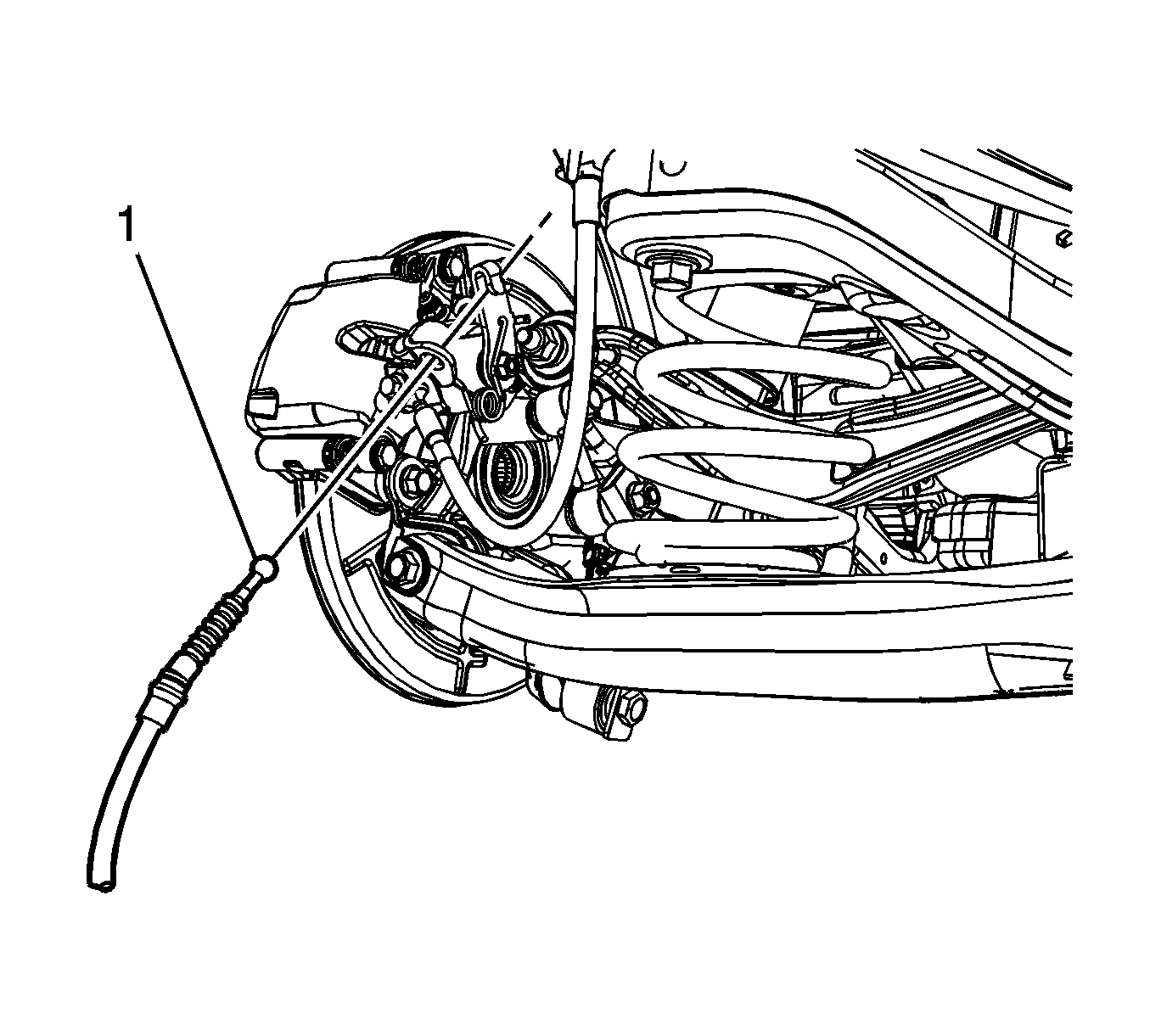

    5. Fig 5: Rear Parking Brake Cable And Parking Brake Actuator Lever
    GM2347586Courtesy of GENERAL MOTORS COMPANY
  5. Install the rear parking brake cable (1) to the left rear brake caliper and connect the cable to the parking brake actuator lever.

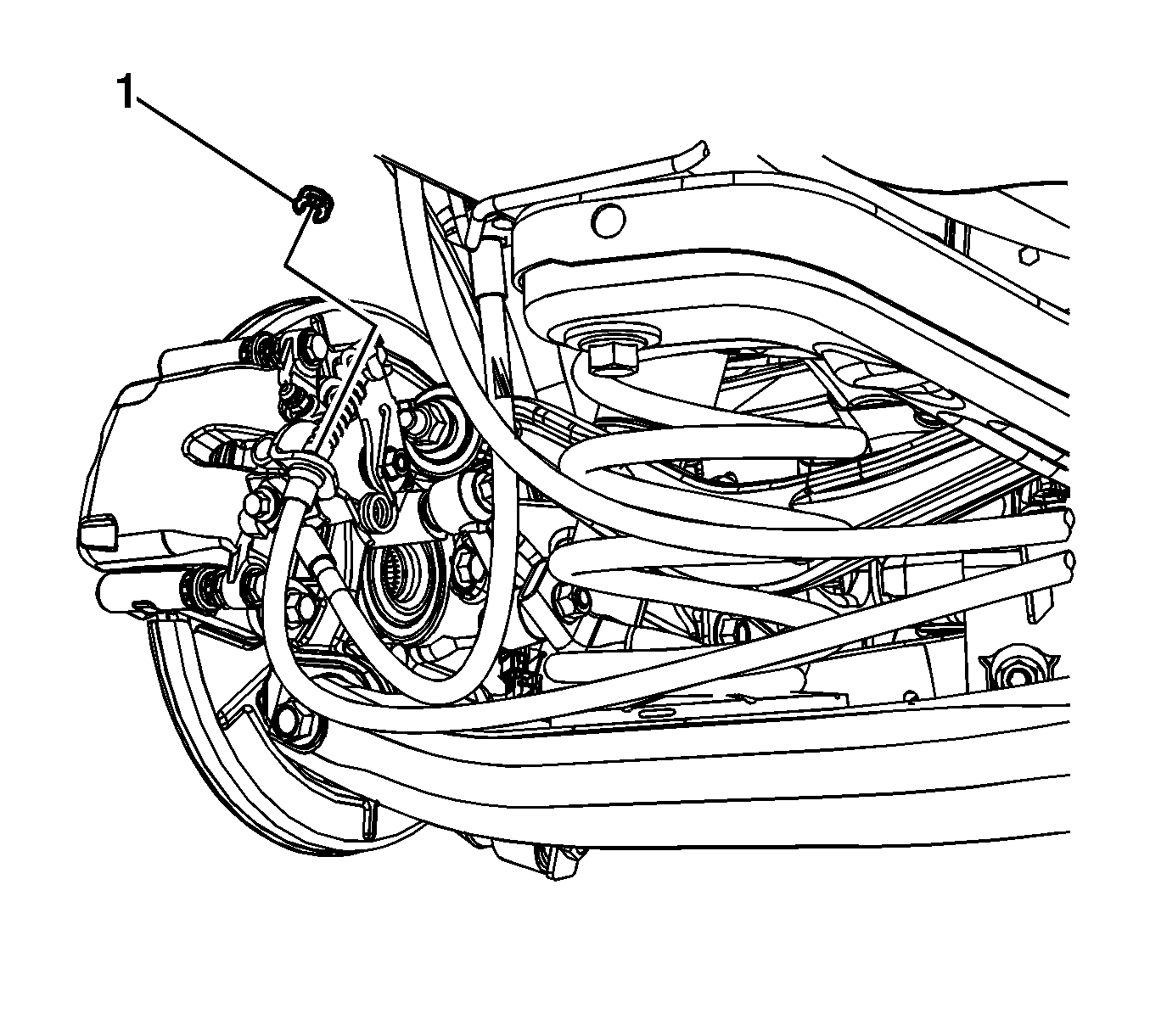

    6. Fig 6: Left Rear Parking Brake Cable Retainer
    GM2347583Courtesy of GENERAL MOTORS COMPANY
  6. Install the left rear parking brake cable retainer (1).

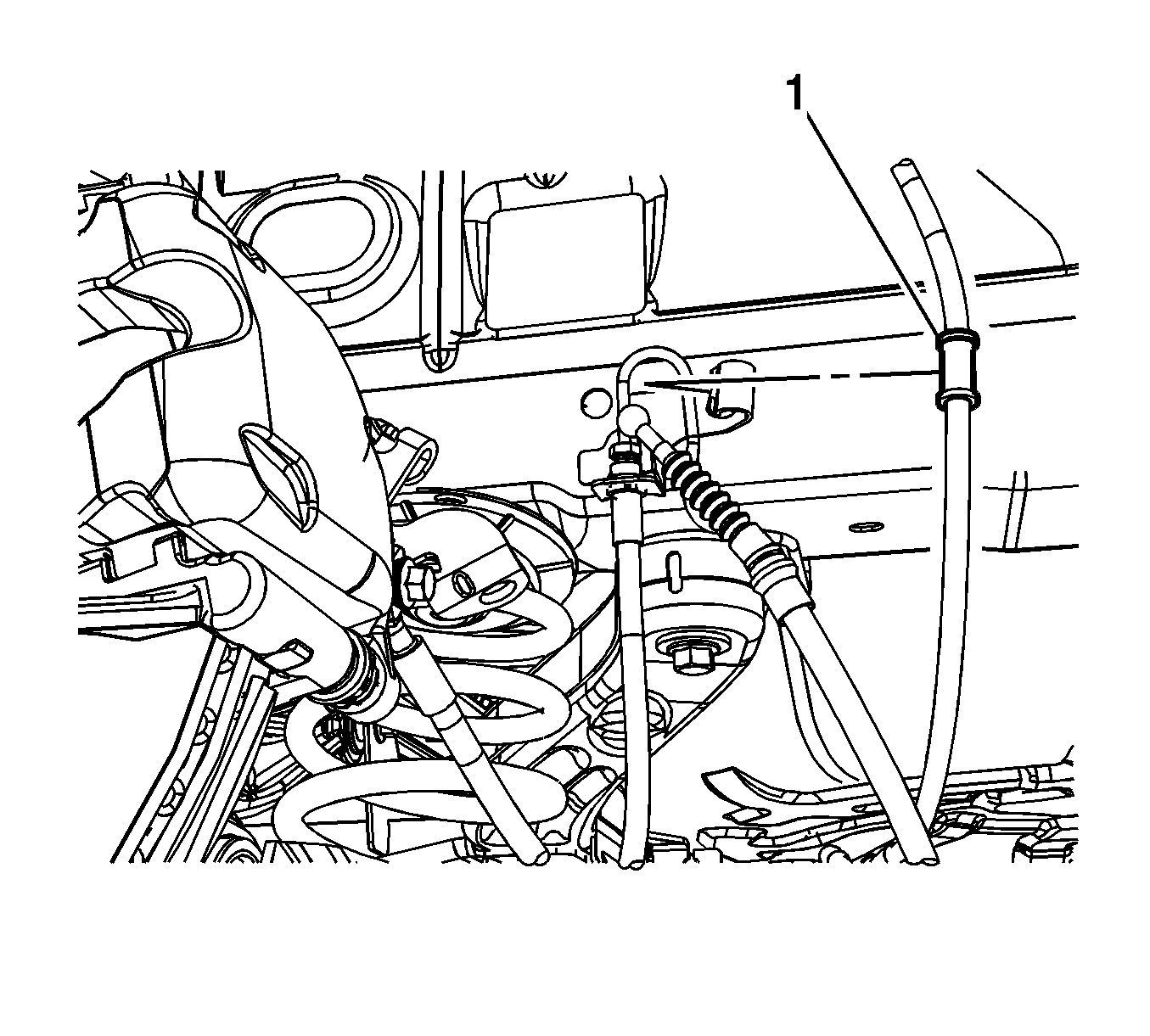

    7. Fig 7: Rear Parking Brake Cable
    GM2347609Courtesy of GENERAL MOTORS COMPANY
  7. Install the rear parking brake cable (1) to the left rear brake hose bracket.

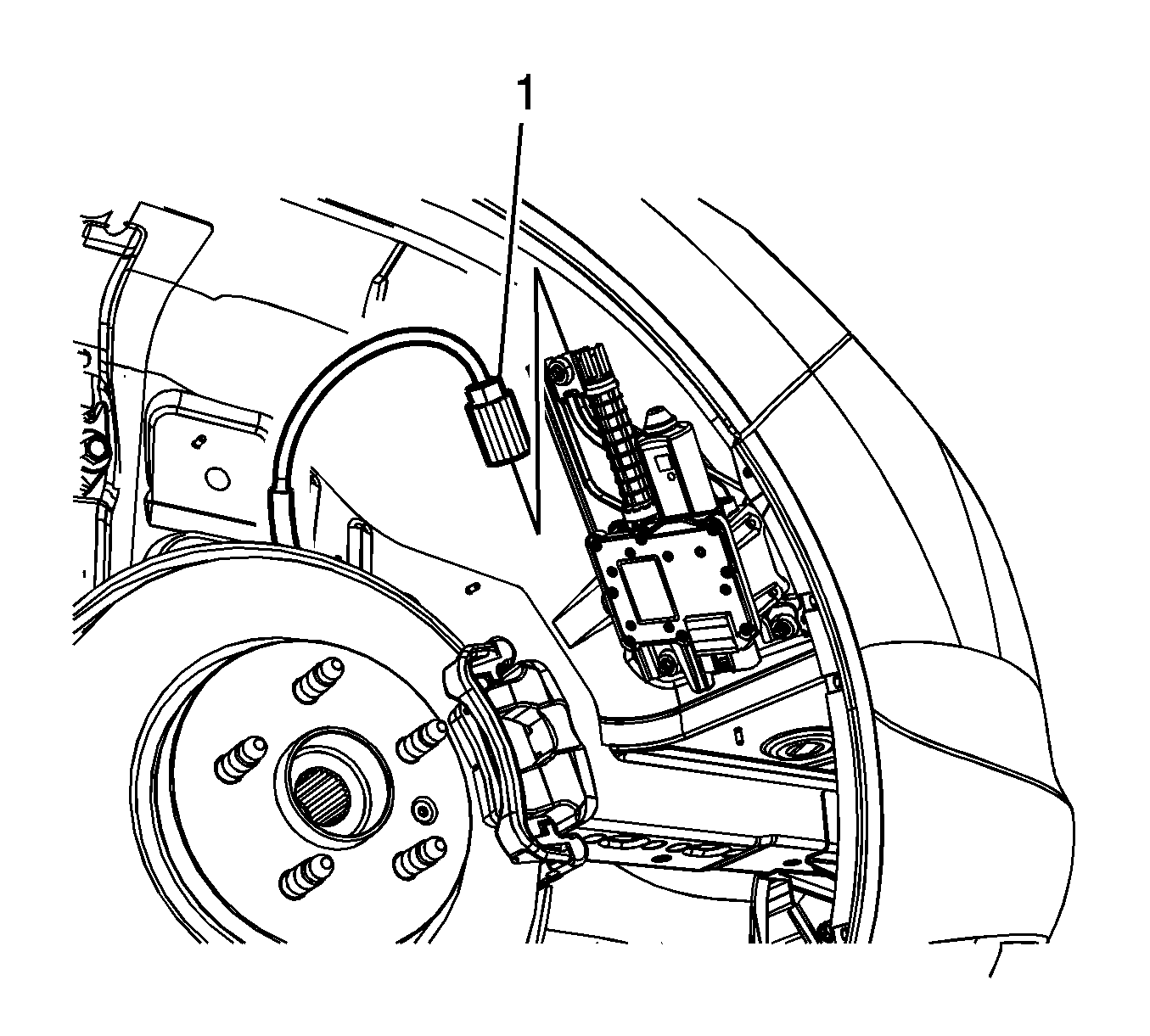

    8. Fig 8: Rear Parking Brake Cable Nut And Electronic Parking Brake Control Module
    GM2347578Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  8. Install the rear parking brake cable nut (1) to the electronic parking brake control module and tighten to 6 N.m (53 lb in).
  9. Install the left rear wheelhouse liner. Refer to Rear Wheelhouse Liner Replacement .
  10. Enable the parking brake cable adjuster. Refer to Parking Brake Cable Adjuster Enabling .
