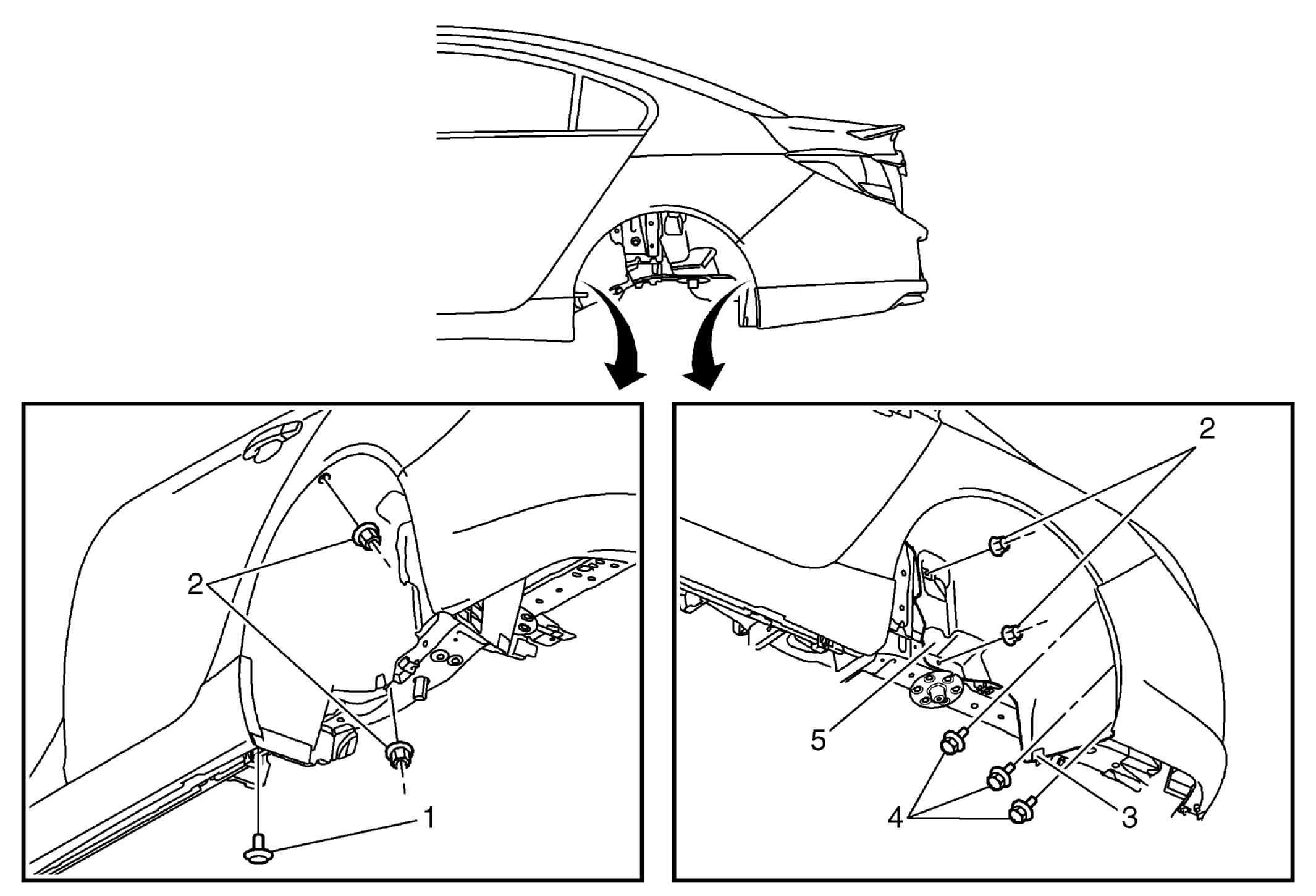

Rear Wheelhouse Liner Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . |
|
| 1 | Rear Wheelhouse Liner Panel Retainer |
| 2 | Rear Wheelhouse Liner Panel Fastener (Qty:4)
CAUTION:
Refer to Fastener Caution . |
| 3 | Rear Wheelhouse Liner Panel Retainer |
| 4 | Rear Wheelhouse Liner Panel Fastener (Qty:3) |
| 5 | Rear Wheelhouse Liner Panel |
