Installation Procedure

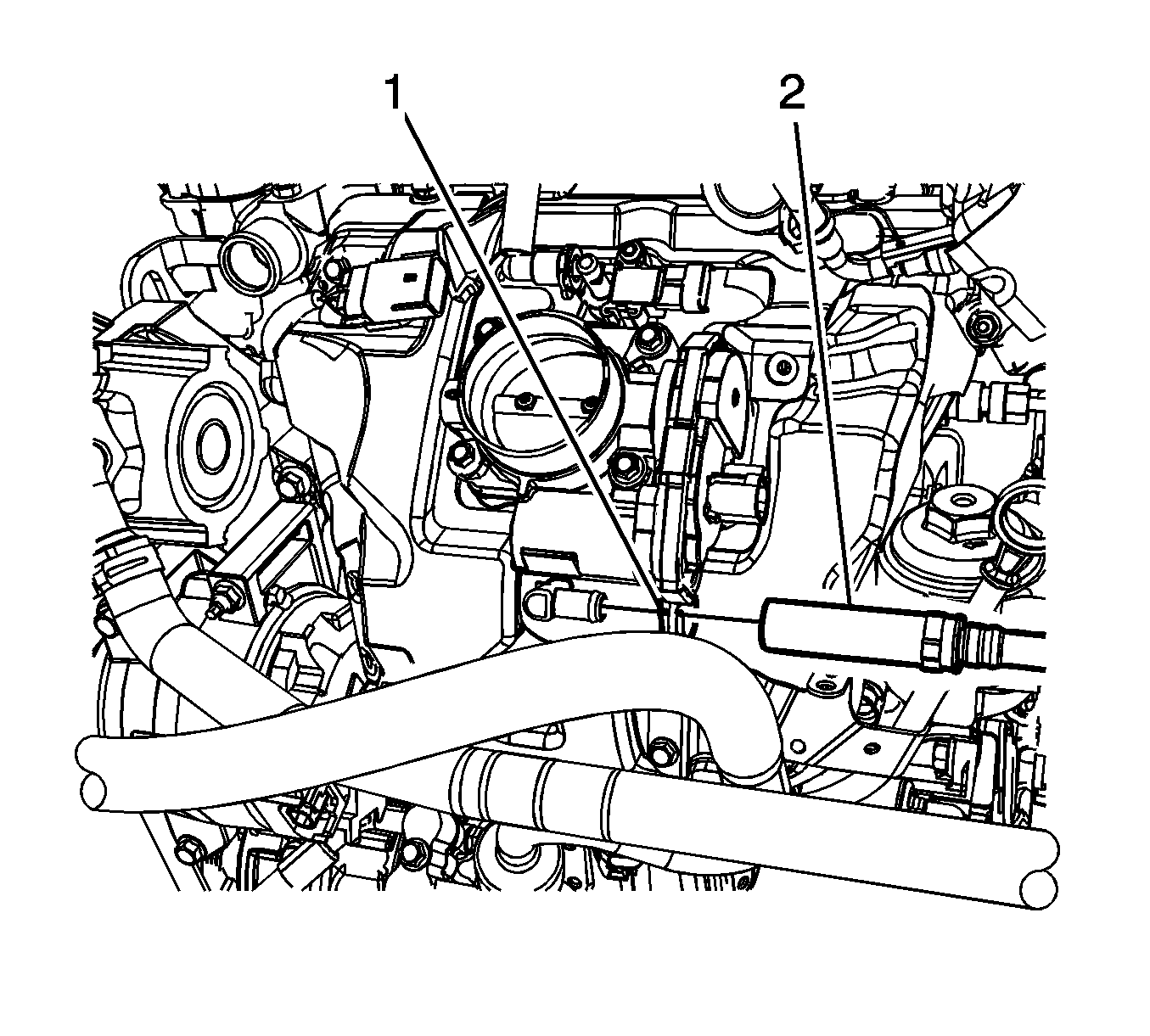

    Fig 1: Power Brake Booster Vacuum Pipe And Clamp
    GM2321606Courtesy of GENERAL MOTORS COMPANY
  1. Install the clamp (1) and install the power brake booster vacuum pipe (2) to the intake manifold vacuum port.

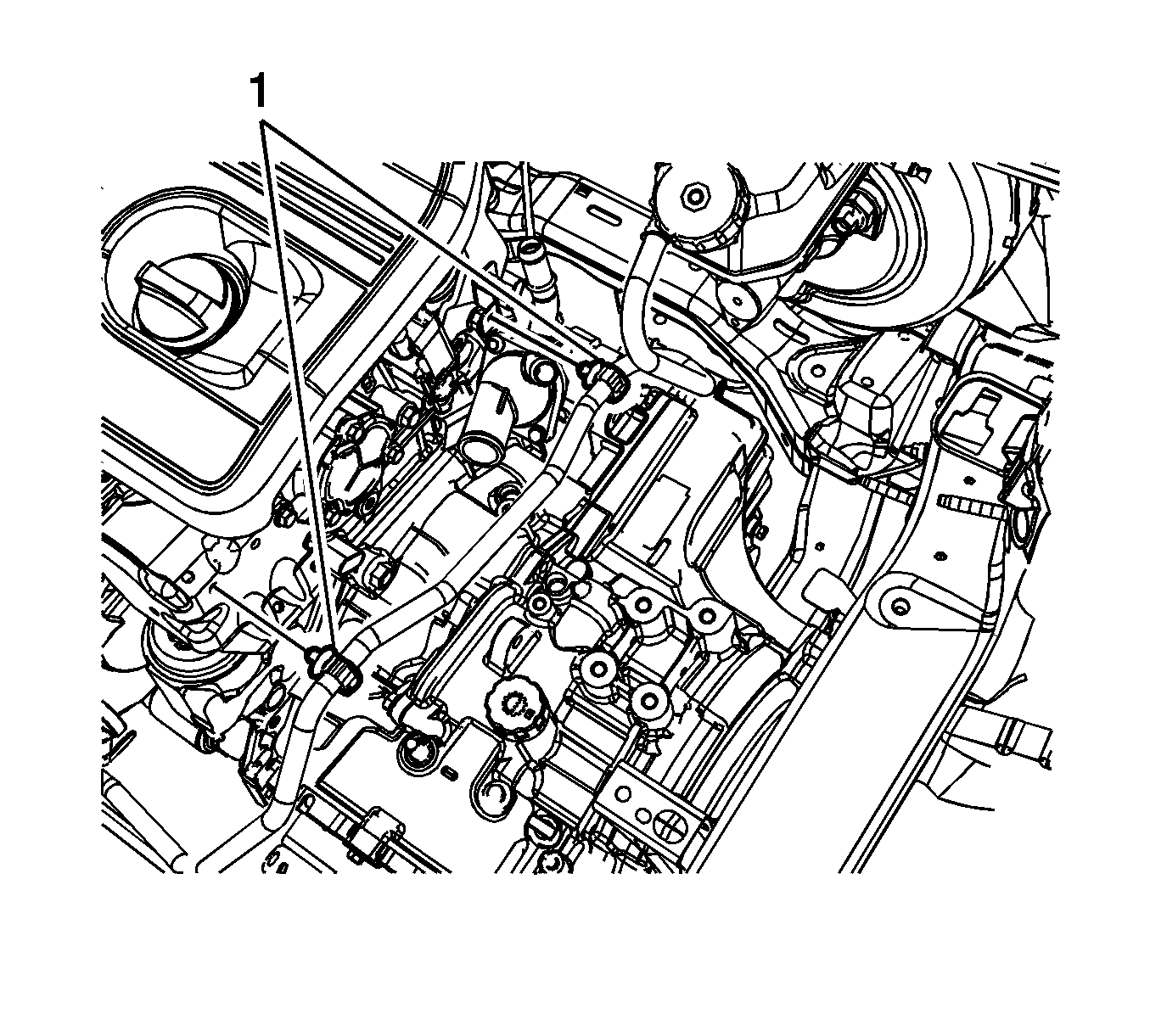

    2. Fig 2: Power Brake Booster Vacuum Pipe Clips
    GM2321602Courtesy of GENERAL MOTORS COMPANY
  2. Install the power brake booster vacuum pipe to the clips (1) .

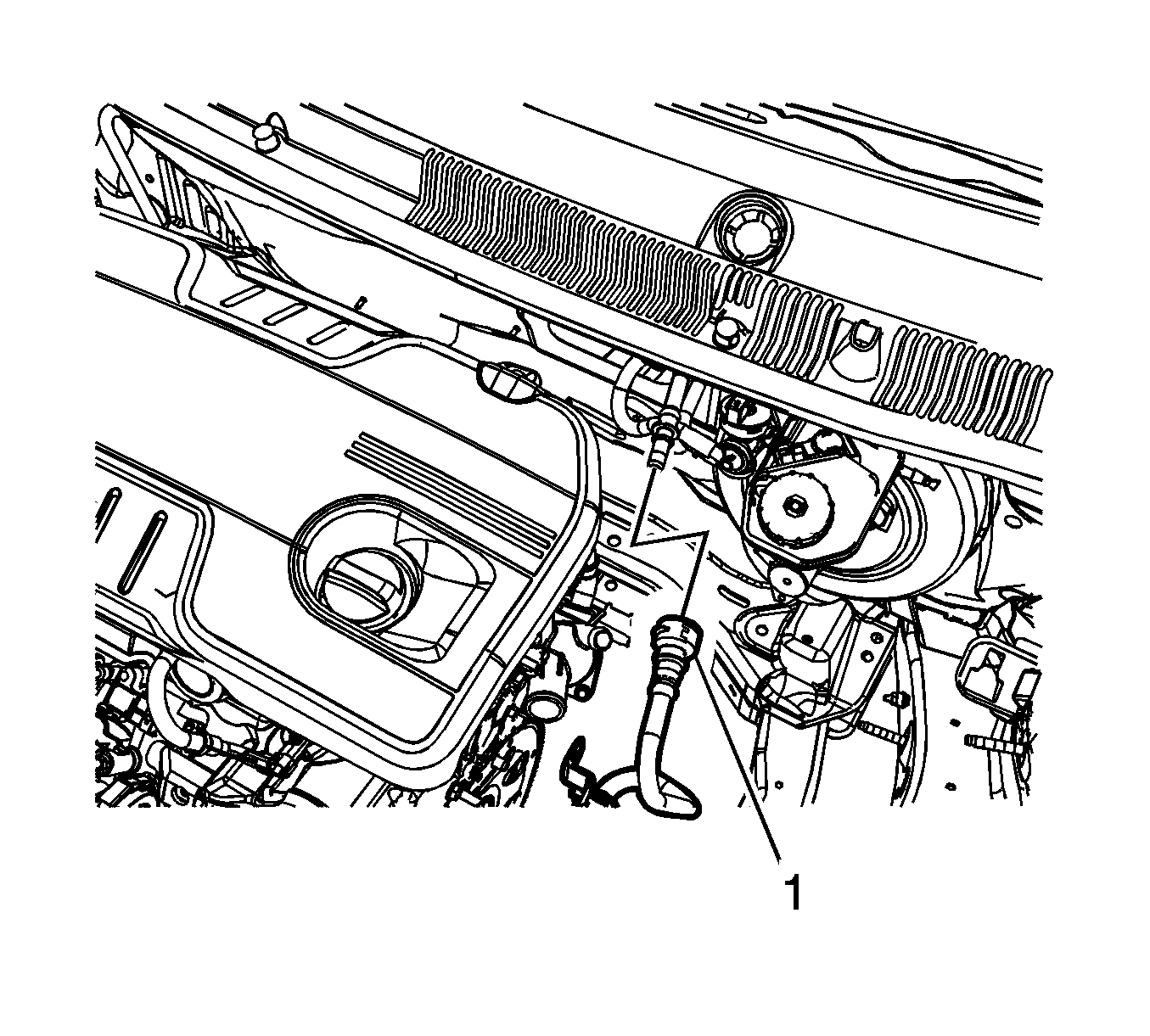

    3. Fig 3: Power Brake Booster Vacuum Pipe Quick Connect
    GM2321600Courtesy of GENERAL MOTORS COMPANY
  3. Connect the power brake booster vacuum pipe quick connect (1) .
  4. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
