Installation Procedure

  1. Install the brake pedal assembly.

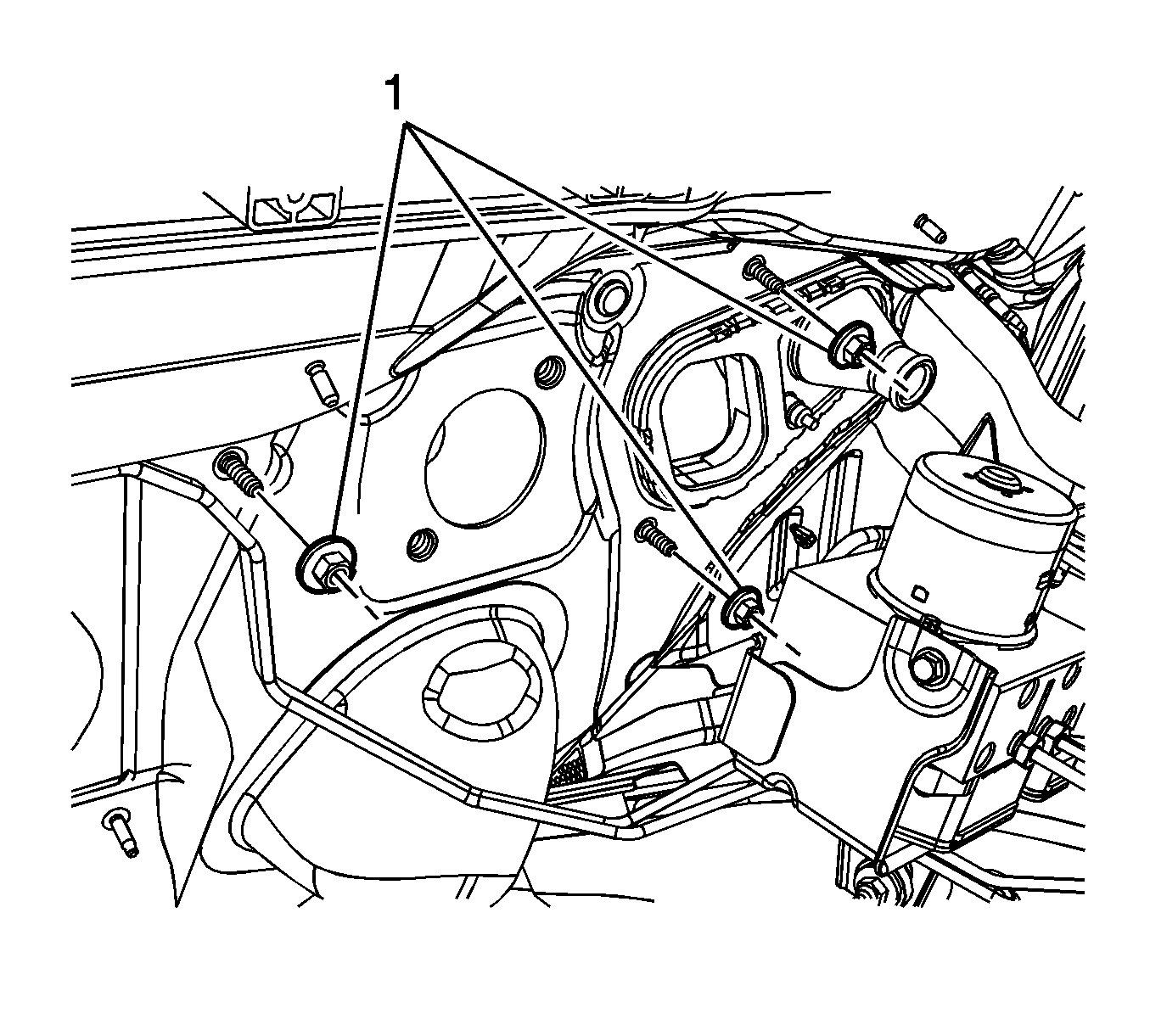

    2. Fig 1: Brake Pedal Assembly And Nuts
    GM2347575Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

  2. Install the brake pedal assembly nuts (1) and tighten to 22 N.m (16 lb ft) .
  3. Install the power vacuum brake booster. Refer to Power Vacuum Brake Booster Replacement

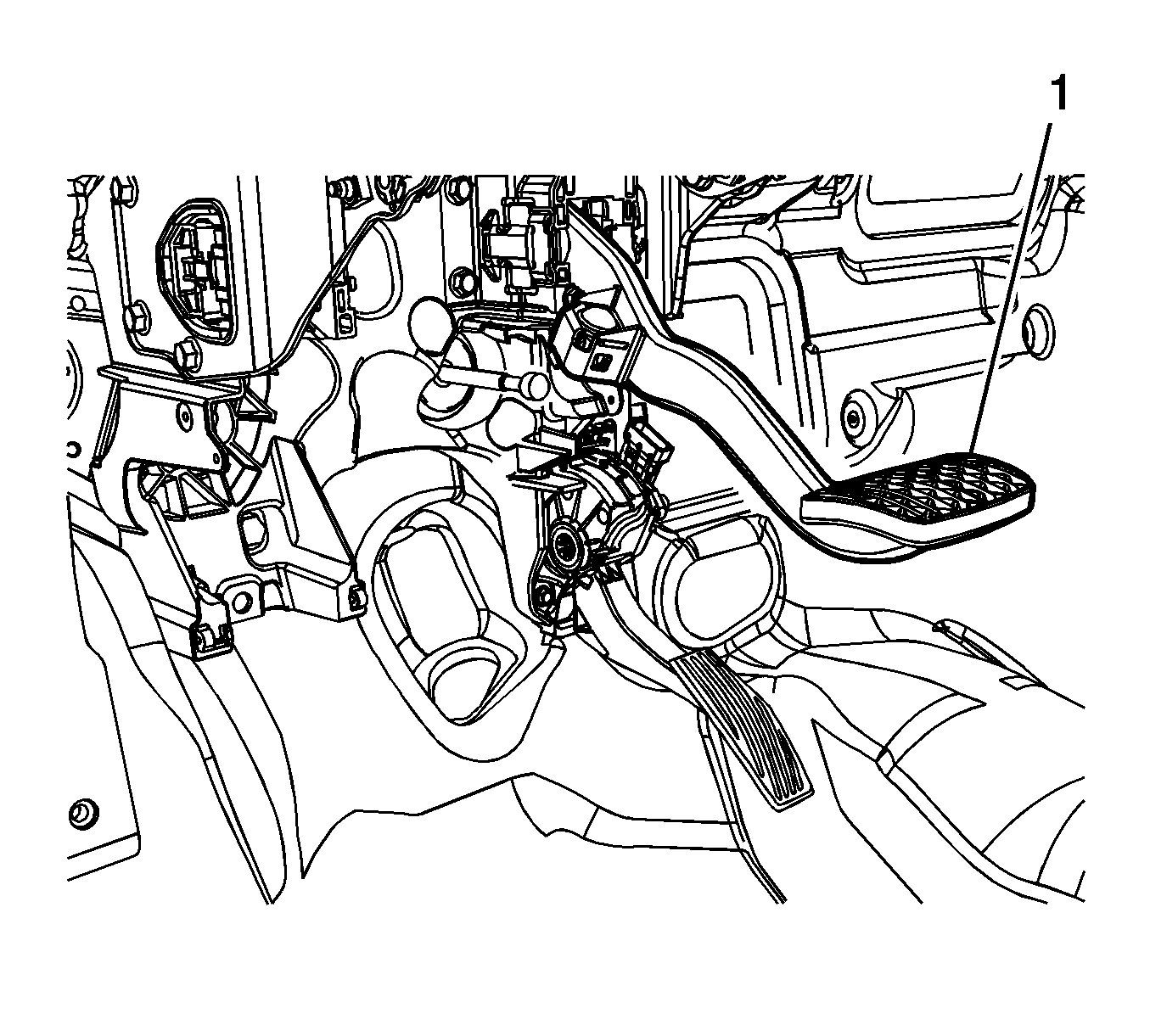

    4. Fig 2: Brake Pedal
    GM2347572Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Install a new power vacuum brake booster pushrod retainer.

  4. Install a new power vacuum brake booster pushrod retainer to the power vacuum brake booster pushrod.
    5. NOTE:

    Ensure the power vacuum brake booster pushrod retainer is fully seated in the brake pedal arm.

  5. Install the power vacuum brake booster pushrod retainer to the brake pedal (1) .
  6. Install the brake pedal position sensor. Refer to Brake Pedal Position Sensor Replacement
  7. Connect the accelerator pedal position sensor electrical connector.
  8. Install the instrument panel tie bar. Refer to Instrument Panel Tie Bar Replacement
