Removal Procedure

    WARNING:

    Do not use a service jack in locations other than those specified to lift this vehicle. Lifting the vehicle with a jack in those other locations could cause the vehicle to slip off the jack and roll; this could cause injury or death.

    WARNING:

    Refer to Brake Dust Warning .

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Remove the front wheel bearing and hub assembly. Refer to Front Wheel Bearing and Hub Replacement (GNA) or Front Wheel Bearing and Hub Replacement (GNB) .

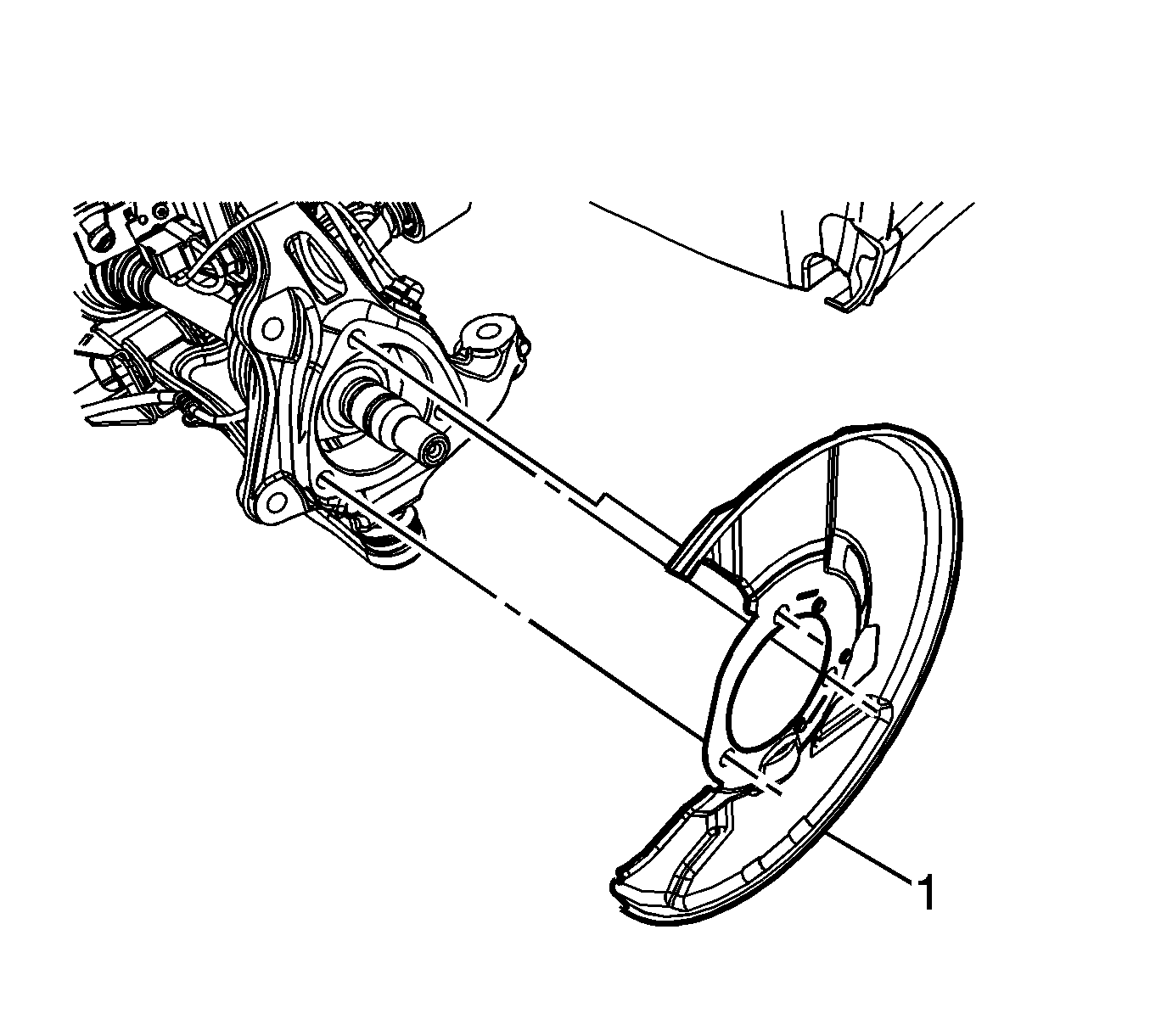

    4. Fig 1: Front Brake Shield
    GM2332714Courtesy of GENERAL MOTORS COMPANY
  4. Remove the front brake shield (1).
