Rear Side Door Window Replacement

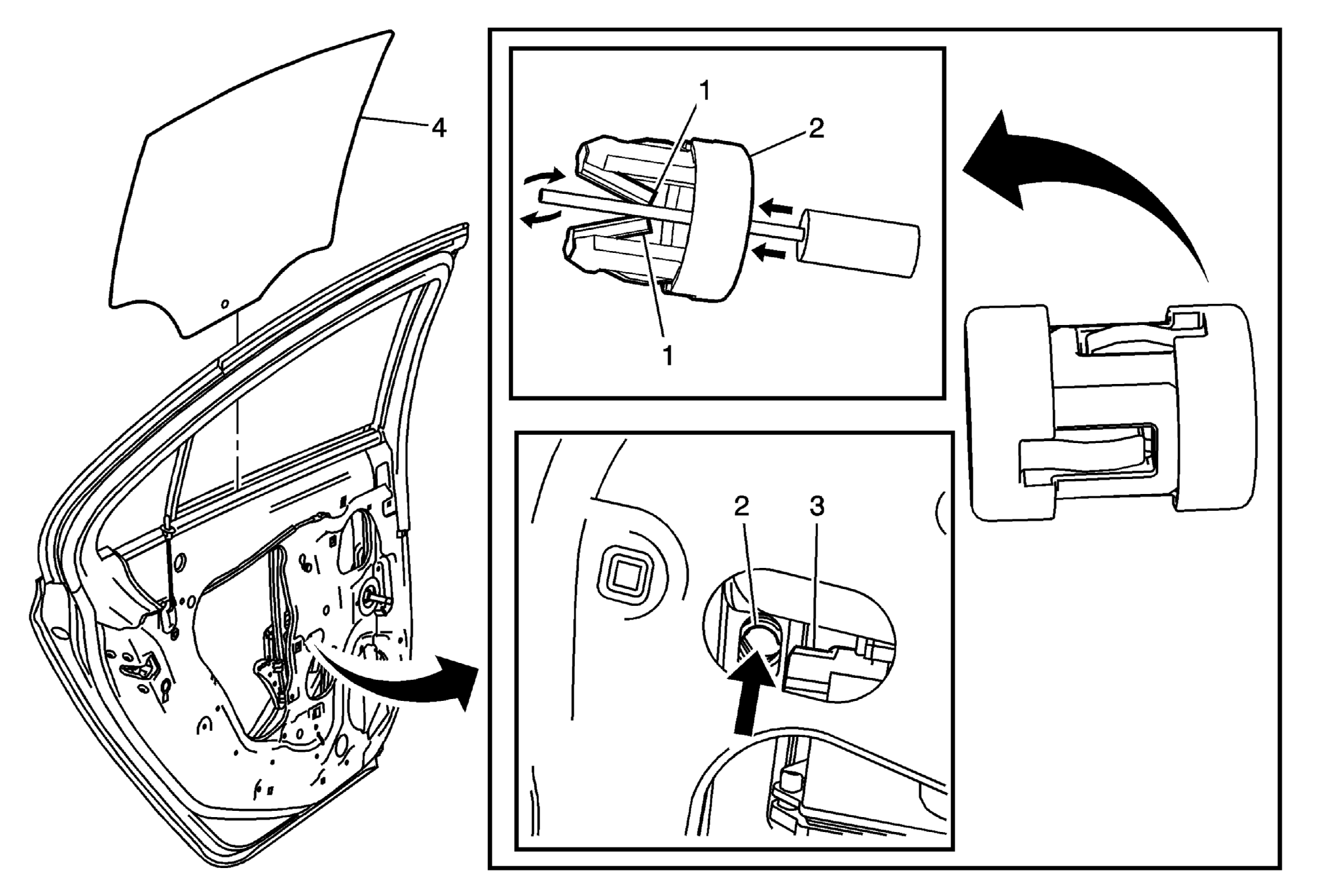

Fig 1: Rear Side Door Window, Retainer & Tabs

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAUTION: Refer to Paint Damage Caution . Preliminary Procedure Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the rear side door stationary window. Refer to Rear Side Door Stationary Window Replacement .
1	Rear Side Door Window Guide Retainer Tabs Procedures Apply masking tape to the outer applique and frame. Raise the window. Remove the rear side door water deflector. Remove the energy absorber retainers and energy absorber from the door. Loosen the rear side door window run channel guide fastener. Position the window half way down or enough in order to gain access through the inner panel. Install a suitable tool in the center of the center guide retainer, push inward to release the tabs.
2	Rear Side Door Window Guide Retainer Procedures Separate the window guide retainer in half.
3	Rear Side Door Window Guide Procedures Lift upward on the window until it released from the guide.
4	Rear Side Door Window Procedures After replacing the window it will be necessary to reprogram. Refer to Control Module References . NOTE: Inspect the window for proper operation before install the trim panel.
