Rear Side Door Stationary Window Replacement

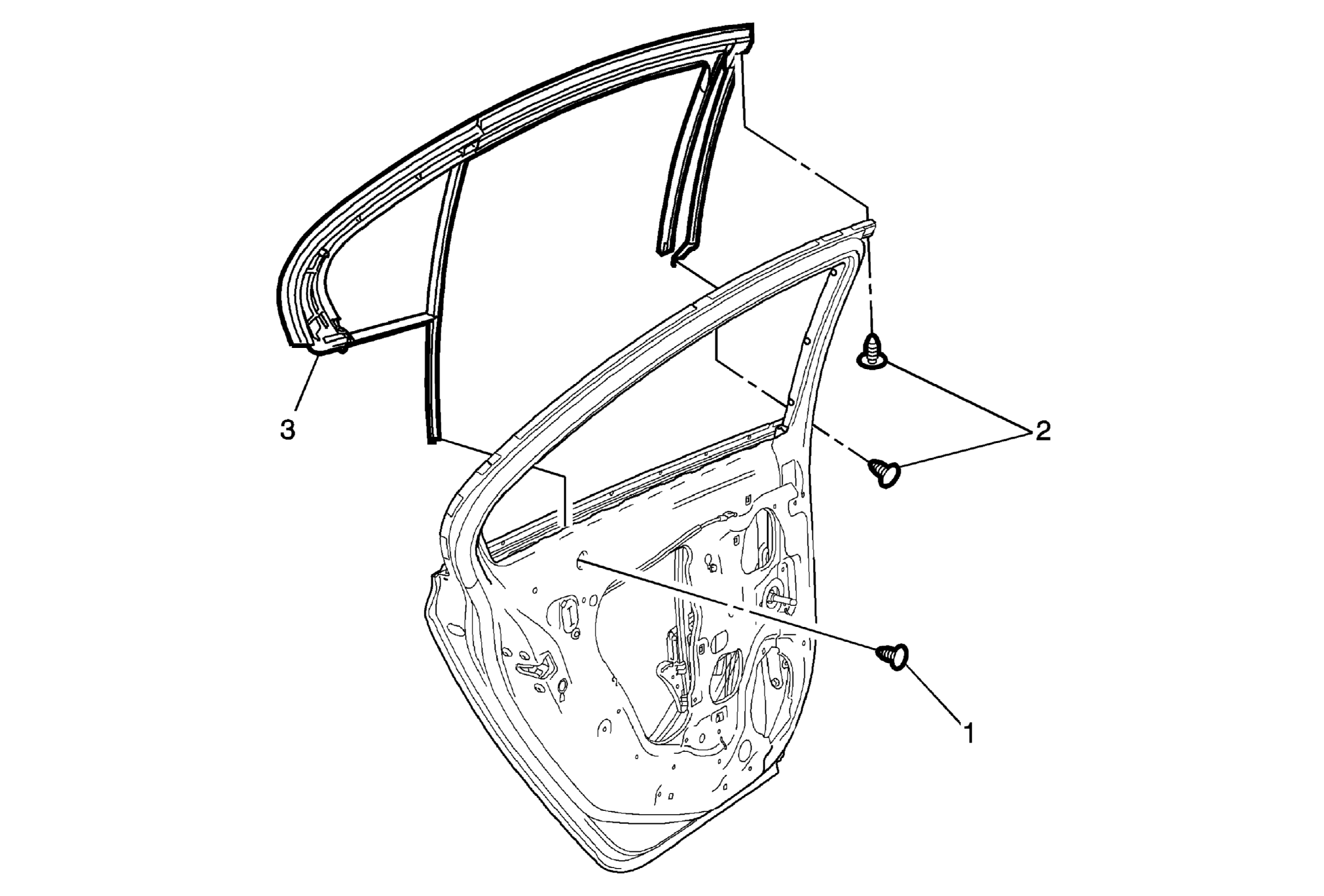

Fig 1: Rear Side Door Window Weatherstrip & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAUTION: Refer to Paint Damage Caution . Preliminary Procedure Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement .
1	Rear Side Door Stationary Window Rear Channel Fastener (Qty:2)
2	Rear Side Door Stationary Window Rear Channel Fastener CAUTION: Refer to Fastener Caution . Procedures Apply masking tape to the outer applique and frame. Lower the window. Remove the rear side door water deflector. Tighten 10 (89 lb in)
3	Rear Side Door Stationary Window NOTE: When replacing the rear side door window weatherstrip it is necessary to transfer the rear side door stationary window.
