Rear Side Door Window Regulator Replacement

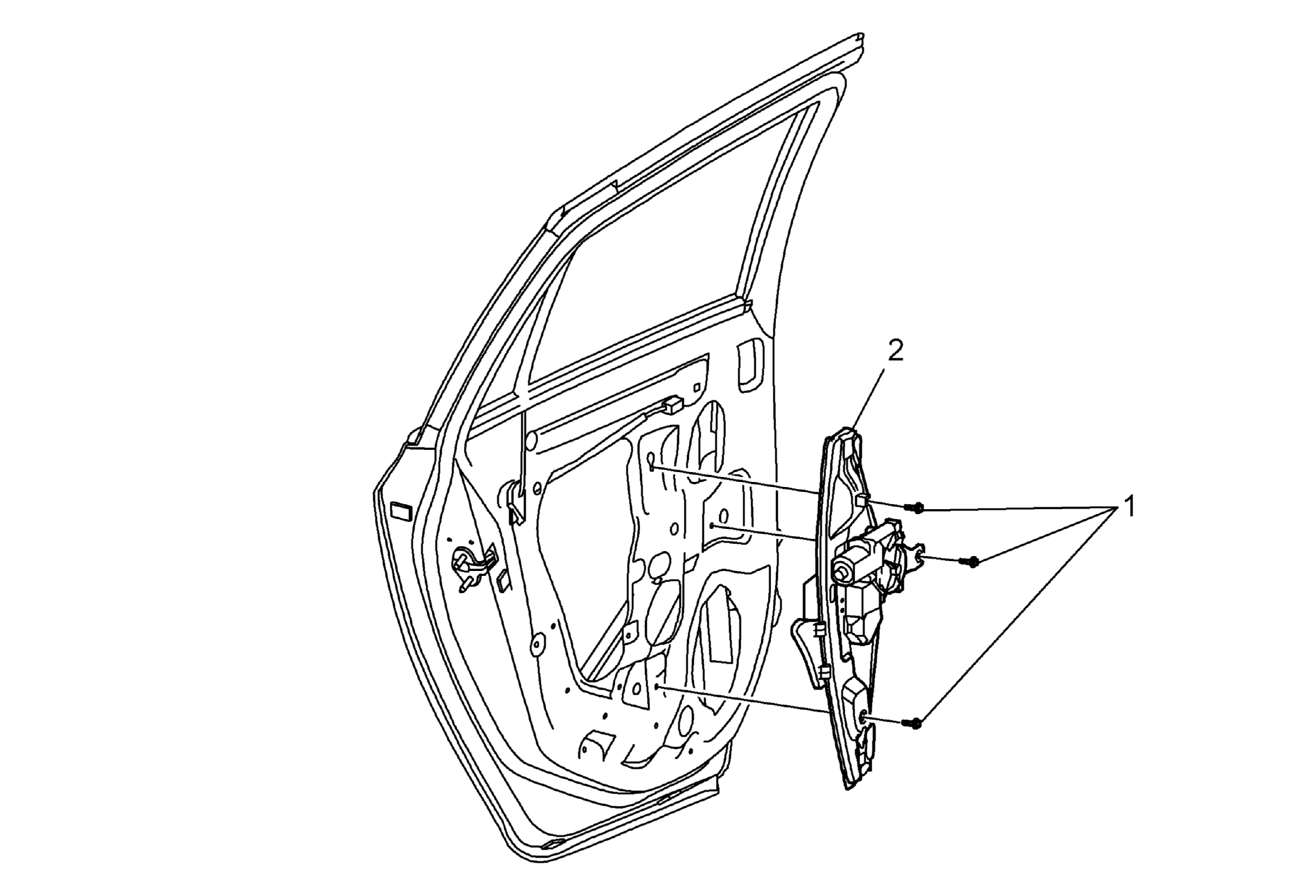

Fig 1: Rear Side Door Window Regulator & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement . Release the door window from the guide retaining clips. Refer to Rear Side Door Window Replacement
1	Rear Side Door Window Regulator Fasteners (Qty:3) CAUTION: Refer to Fastener Caution . Procedure After detaching window from regulator, manually move window to full up position and securely tape the window to the door frame. Tighten 10 (89 lb in)
2	Rear Side Door Window Regulator Procedures Disconnect the electrical connector. Transfer all parts as necessary. TIP: Inspect the window for proper operation, adjust if necessary.

Callout

Component Name

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedures

Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement .
Release the door window from the guide retaining clips. Refer to Rear Side Door Window Replacement

Rear Side Door Window Regulator Fasteners (Qty:3)

CAUTION:

Refer to Fastener Caution .

Procedure
After detaching window from regulator, manually move window to full up position and securely tape the window to the door frame.
Tighten
10 (89 lb in)

Rear Side Door Window Regulator

Procedures

Disconnect the electrical connector.
Transfer all parts as necessary.

TIP: Inspect the window for proper operation, adjust if necessary.
