Rear Side Door Window Regulator Motor Replacement

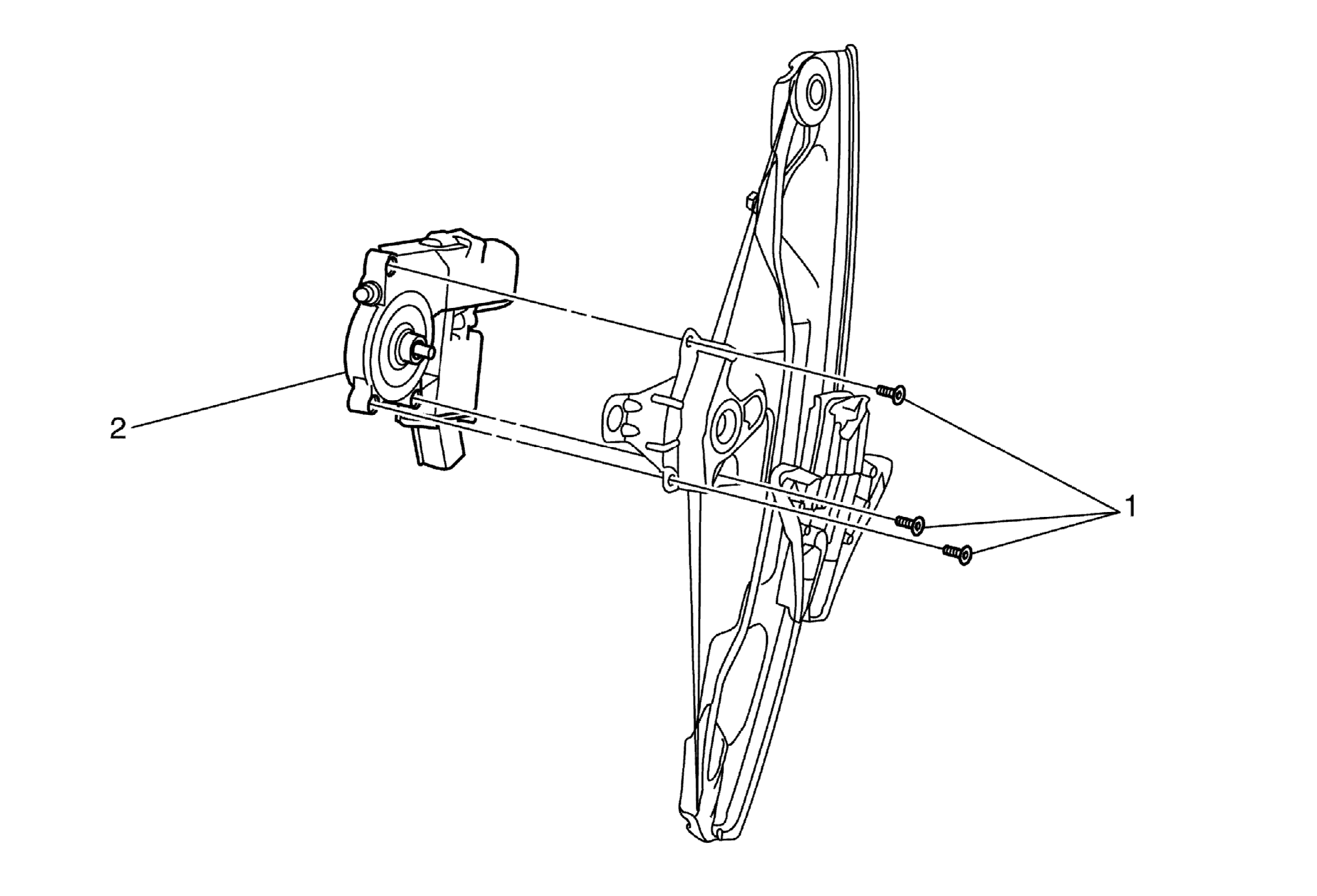

Fig 1: View Of Rear Side Door Window Regulator Motor & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the rear side door window regulator. Refer to Rear Side Door Window Regulator Replacement .
1	Rear Side Door Window Regulator Motor Fasteners (Qty:3) CAUTION: Refer to Fastener Caution . Tighten 10 (89 lb in)
2	Rear Side Door Window Regulator Motor Procedure Disconnect the electrical connector. Transfer all parts as necessary. TIP: Inspect the window for proper operation.

Callout

Component Name

Preliminary Procedures

Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement .
Remove the rear side door window regulator. Refer to Rear Side Door Window Regulator Replacement .

Rear Side Door Window Regulator Motor Fasteners (Qty:3)

CAUTION:

Tighten
10 (89 lb in)

Rear Side Door Window Regulator Motor

Procedure

TIP: Inspect the window for proper operation.
