Sunroof Window Motor Replacement

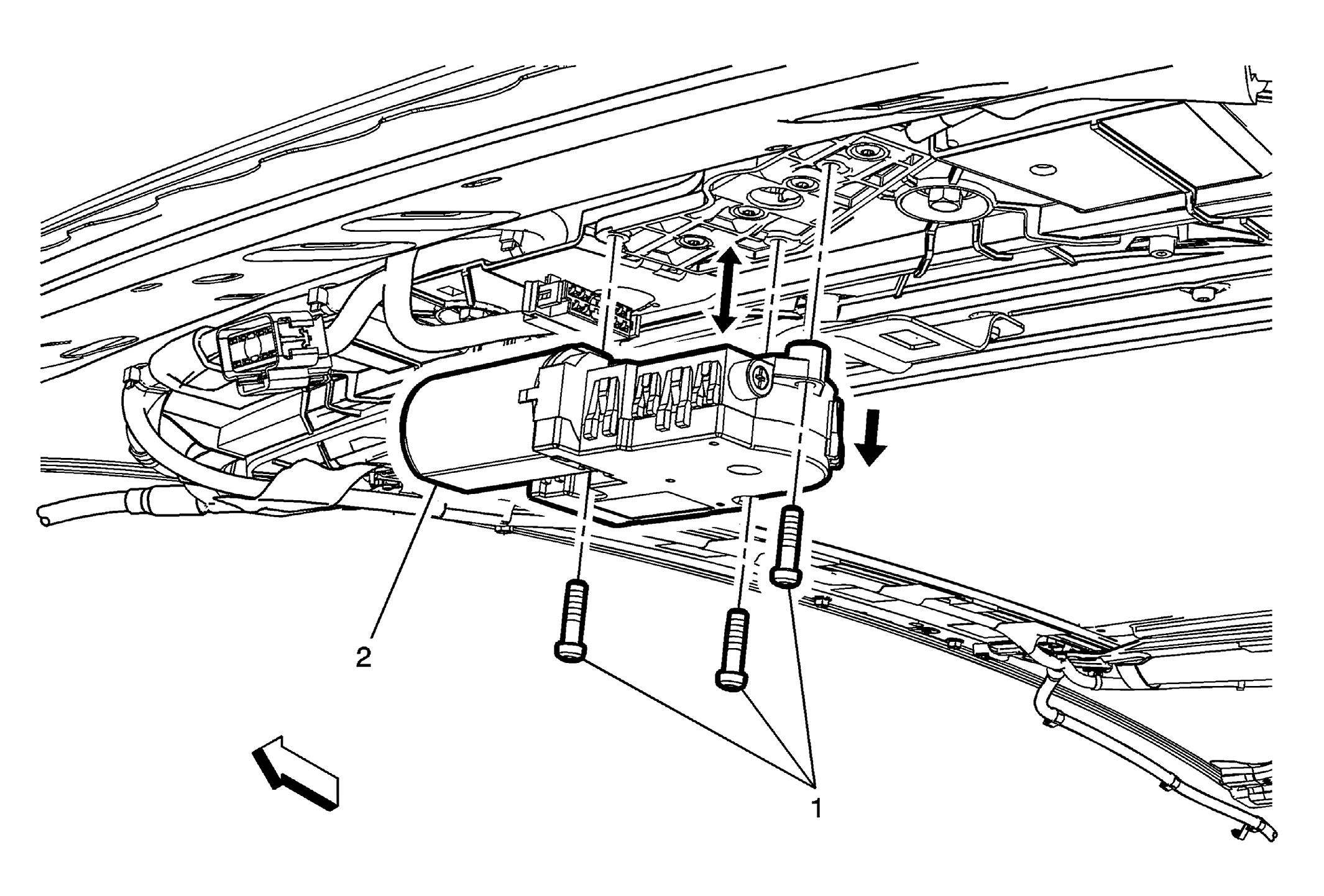

Fig 1: Sunroof Window Motor & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the roof console. Refer to Roof Console Replacement .
1	Sunroof Window Motor Fastener (Qty:3) CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical wiring harness connector. Tighten 4 N.m (35 lb in)
2	Sunroof Window Motor Procedure When replacing the sunroof motor, refer to Sunroof Motor/Actuator Initialization/Teach Process . Verify the operation of the sunroof before installing the headliner trim.

Callout

Component Name

Preliminary Procedure
Remove the roof console. Refer to Roof Console Replacement .

Sunroof Window Motor Fastener (Qty:3)

CAUTION:

Procedure
Disconnect the electrical wiring harness connector.
Tighten
4 N.m (35 lb in)

Sunroof Window Motor

Procedure

When replacing the sunroof motor, refer to Sunroof Motor/Actuator Initialization/Teach Process .
Verify the operation of the sunroof before installing the headliner trim.
