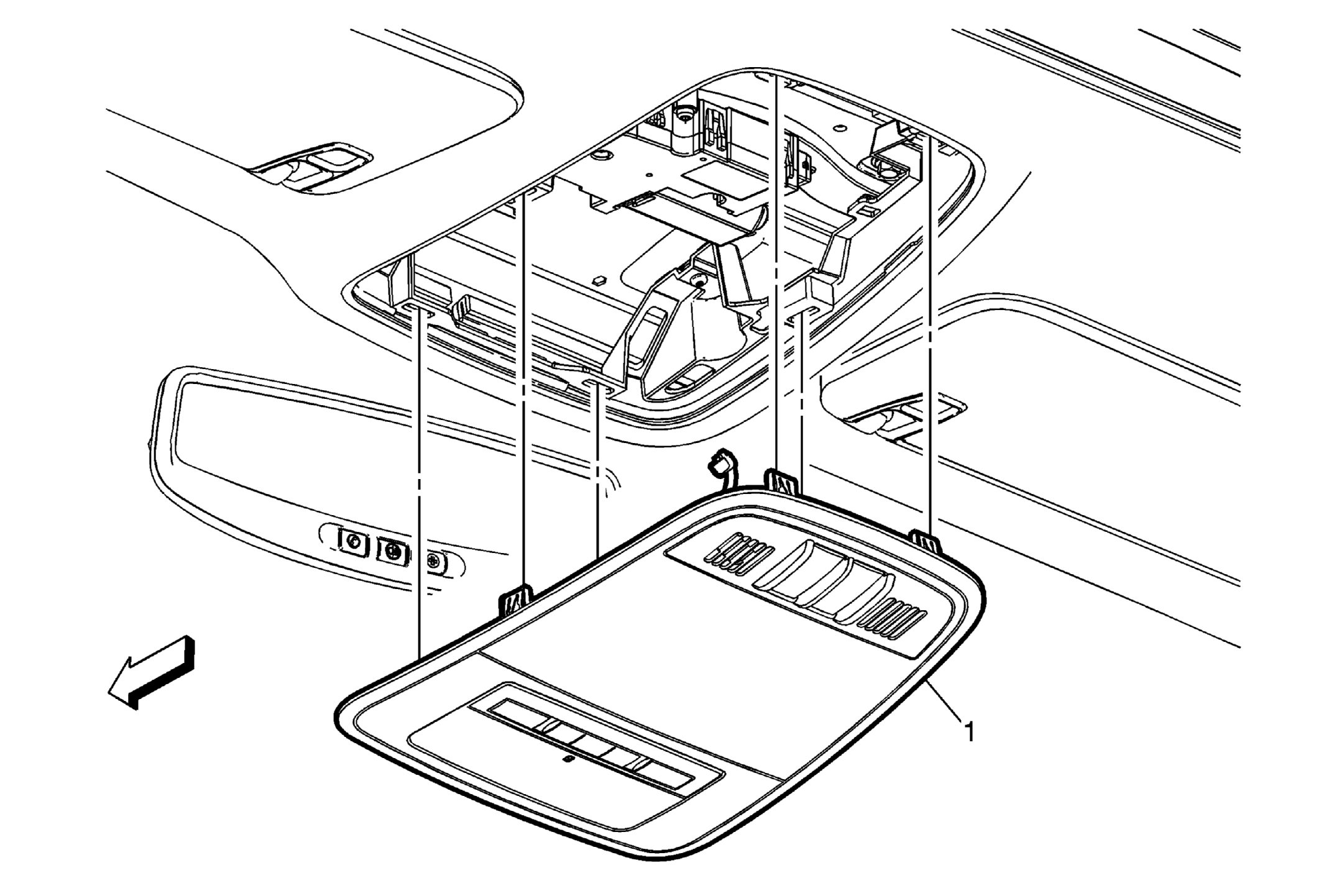

Roof Console Assembly Procedure
- Use a flat-bladed plastic trim tool to release the 6 retainers securing the roof console to the headliner.
- Disconnect the electrical connections.
- When replacing the roof console assembly, transfer all necessary components.
|
