Rear Seat Head Restraint Guide Replacement

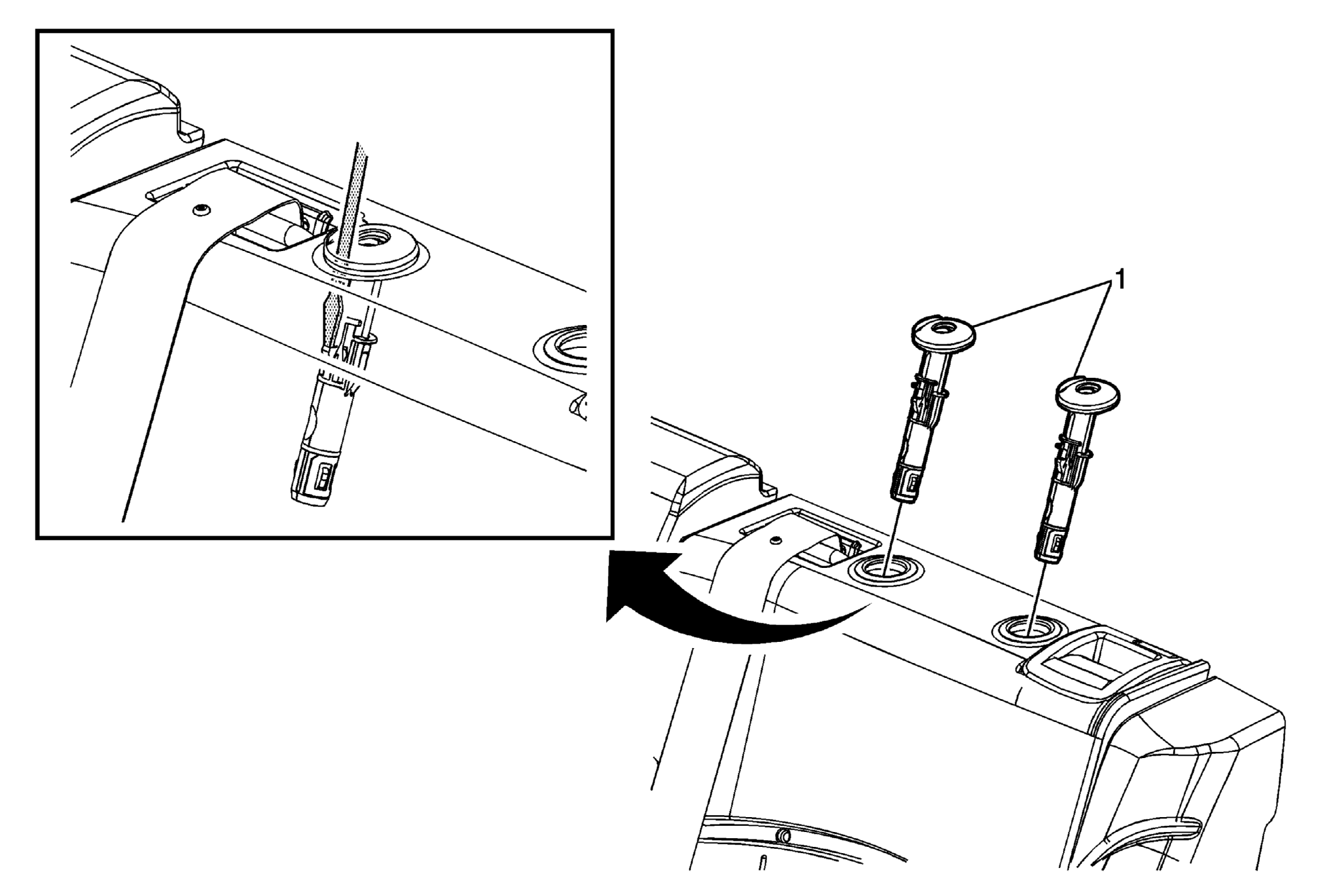

Fig 1: Rear Seat Head Restraint Guide

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear seat head restraint. Refer to Rear Seat Head Restraint Replacement .
1	Rear Seat Head Restraint Guide Procedure  Using a suitable flat-bladed tool, slide the tool between the cushion and the guide until you find the slot on the outboard side of the guide. Push inward on the guide slot tab , while pulling upward to remove the guide from the seat back frame.
