Rear Seat Head Restraint Replacement

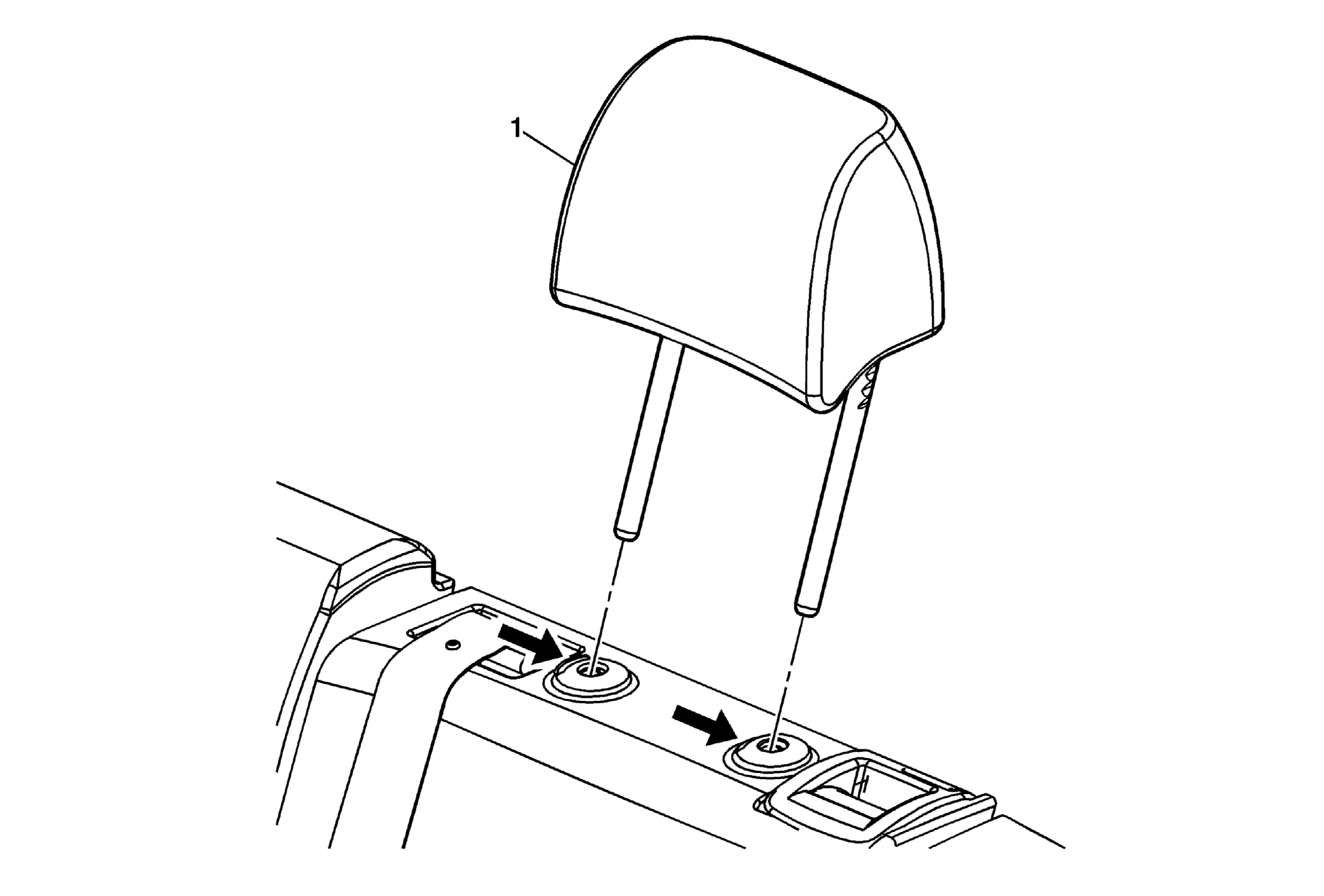

Fig 1: Rear Seat Head Restraint
GM2210949Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Seat Head Restraint

Procedure

  1. Tilt the seat forward to gain space between the head restraint and the roof.
  2. Depress the large button on the head restraint guide and raise the head restraint to the full up position.
  3. Depress the small button on the opposite head restraint guide and pull upward to remove from the seat.
