Front Seat Recliner Control Replacement (Driver or Passenger Seat 2 and 4-Way)

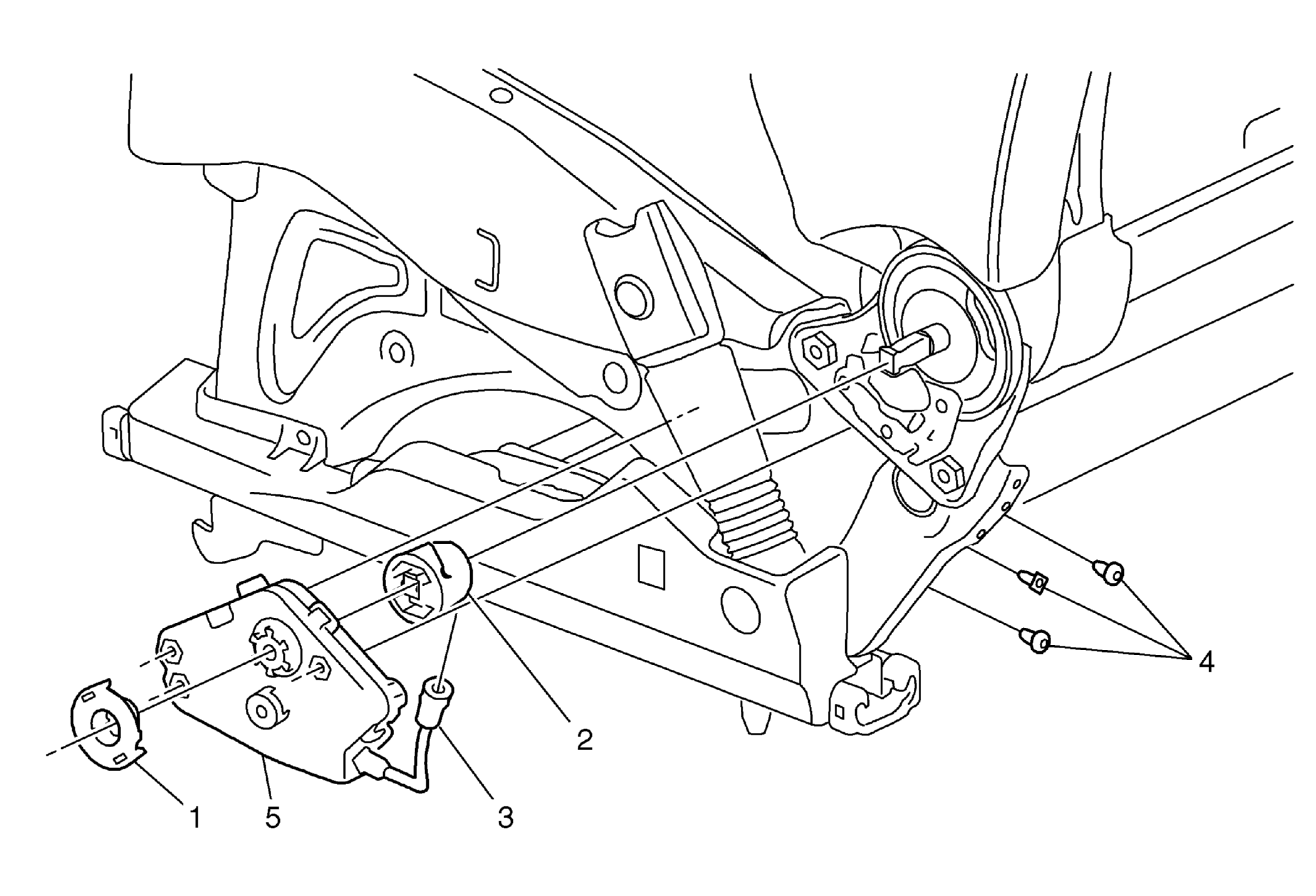

Fig 1: Front Seat Recliner Control Components (Driver Or Passenger Seat 2 and 4-Way)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures SIR disabling and enabling. Refer to SIR Disabling and Enabling . Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation (Oshawa 2/4/6-Way Hybrid, 6-Way Sport) . Remove the driver or passenger seat adjuster finish cover. Refer to Driver or Passenger Seat Adjuster Finish Cover Replacement (8-Way-Power) .
1	Securing Recliner Control Shaft
2	Retainer Recliner Control Shaft
3	Bowden Cable Recliner Control
4	Front Seat Recliner Control Fastener (Qty:3) CAUTION: Refer to Fastener Caution . Tighten 20 N.m (15 lb ft)
5	Front Seat Recliner Control
