Installation Procedure

  1. Install the front seat cushion cover to the cushion pad with new hog rings.
    2. Fig 1: Seat Side Inflatable Restraint Module And Textile Straps
    GM2019890Courtesy of GENERAL MOTORS COMPANY
  2. Install the seat side inflatable restraint module (1) to the cushion cover with the textile straps (2).
    3. Fig 2: Front Seat Back Cushion With Cushion Pad And Backrest Frame
    GM2019888Courtesy of GENERAL MOTORS COMPANY
  3. Install the front seat back cushion with cushion pad (1) to the backrest frame (2).
    4. Fig 3: Wiring Harness Connector And From Seat Side Inflatable Restraint Module
    GM2019887Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Check the correct locking of wiring harness connector (2).

  4. Connect the wiring harness connector (2) to the seat side inflatable restraint module (1).
    5. Fig 4: Seat Side Inflatable Restraint Module And Nuts
    GM2019886Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  5. Position the seat side inflatable restraint module (3) to the backrest frame. Tighten both fasteners (1, 2) to the seat side inflatable restraint module (3).

    Tighten

    3.25 N.m (29 lb in)

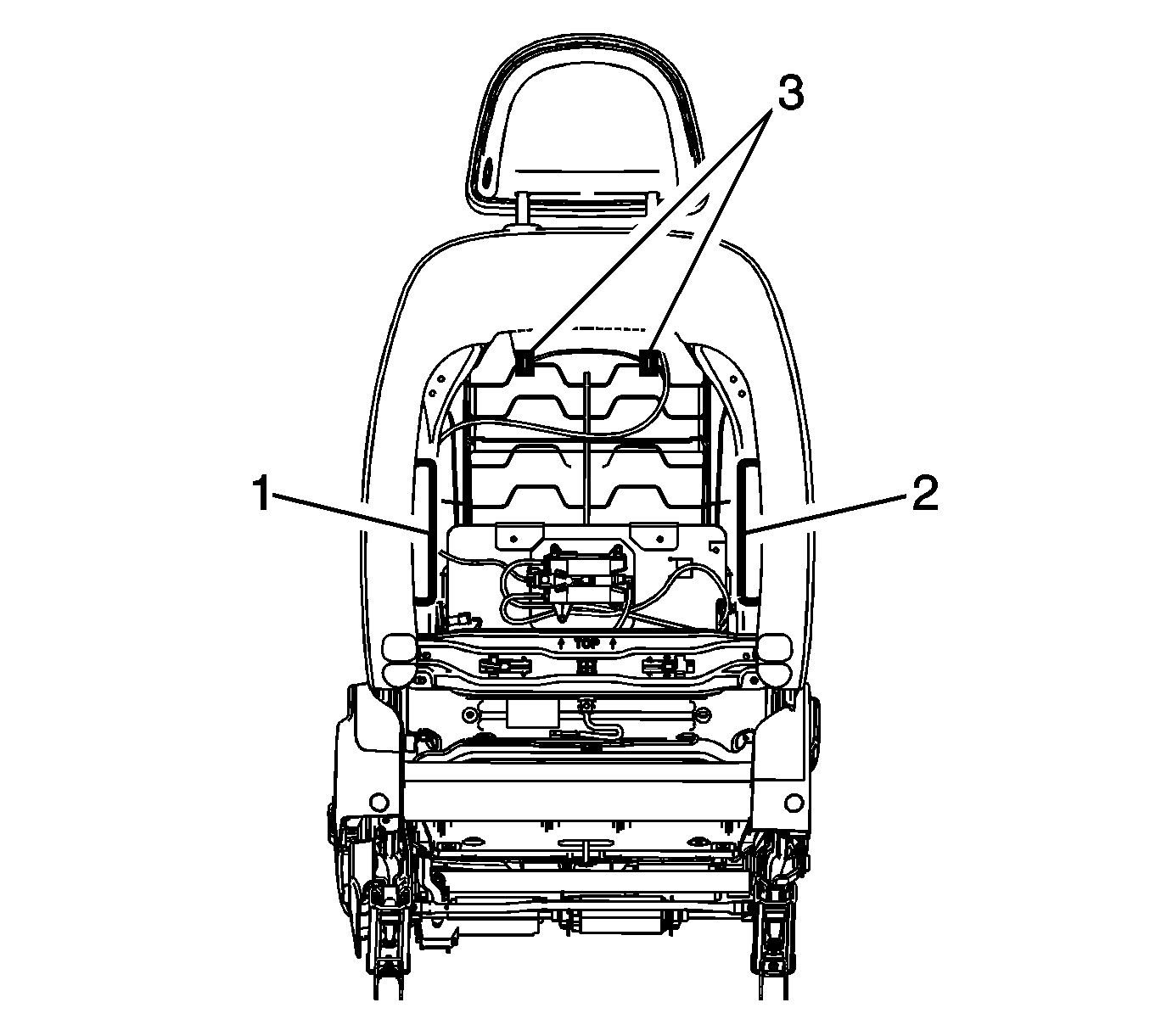

    6. Fig 5: Front Seat Back Cushion From The Backrest
    GM2194116Courtesy of GENERAL MOTORS COMPANY
  6. Install the front seat back cushion to the backrest left side (1) and right side (2).
  7. Install the front seat head restraint guide bezel. Refer to Front Seat Head Restraint Guide Bezel Replacement (2/4/6-Way Hybrid, 6-Way Hybrid Sport) .
  8. Install the front seat head restraint. Refer to Driver or Passenger Seat Head Restraint Replacement (without AHS) .
  9. Close the cushion at backrest rear side.
  10. Install the driver or passenger seat inner recliner finish cover. Refer to Driver or Passenger Seat Inner Recliner Finish Cover Replacement (2/4/6-Way Hybrid, 6-Way Hybrid Sport) .
  11. Install the driver or passenger seat adjuster finish cover. Refer to Driver or Passenger Seat Adjuster Finish Cover Replacement (8-Way-Power) .
  12. Install the front seat outer adjuster finish cover. Refer to Driver or Passenger Seat Outer Adjuster Finish Cover Replacement (8-Way Power) .
  13. Install driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation (Oshawa 2/4/6-Way Hybrid, 6-Way Sport) .
