Driver or Passenger Seat Vertical Adjuster Actuator Replacement (4/6/8-Way)

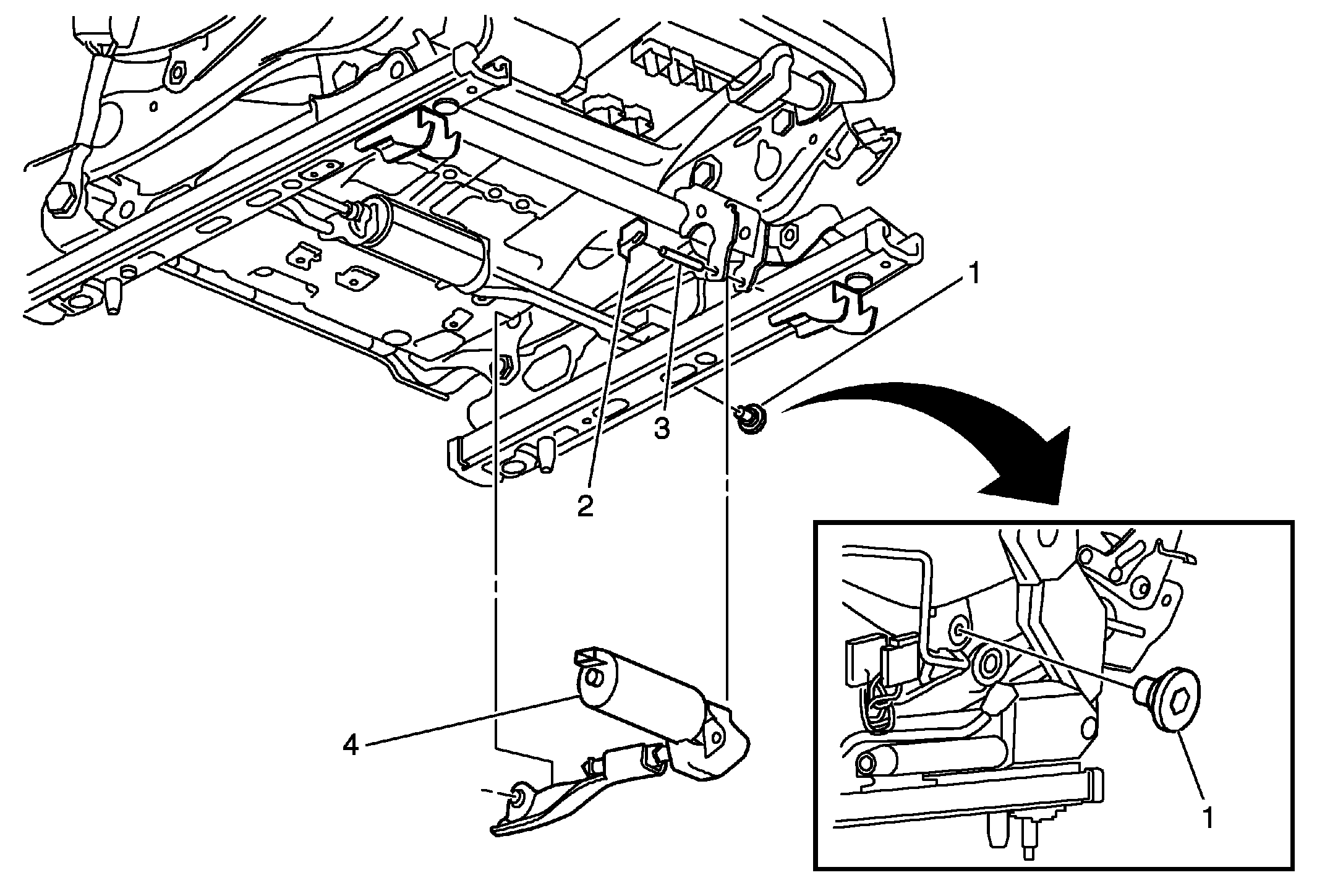

Fig 1: Driver or Passenger Seat Vertical Adjuster Actuator (4/6/8-Way)
GM2019876Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Disable the SIR system. Refer to SIR Disabling and Enabling .
  3. Remove the driver or passenger seat . Refer to Driver or Passenger Seat Removal and Installation .
  4. Remove the front seat adjuster track finish cover. Refer to Front Seat Adjuster Track Finish Cover Replacement .
1 Driver or Passenger Seat Adjuster Vertical Actuator Fastener
CAUTION:

Refer to Fastener Caution .


Procedure
Disconnect the electrical connector.
Tighten
20 N.m (15 lb ft)
2 Securing Clip
3 Roll Pin
4 Driver or Passenger Seat Adjuster Vertical Actuator
