Driver Seat Adjuster Memory Switch Replacement

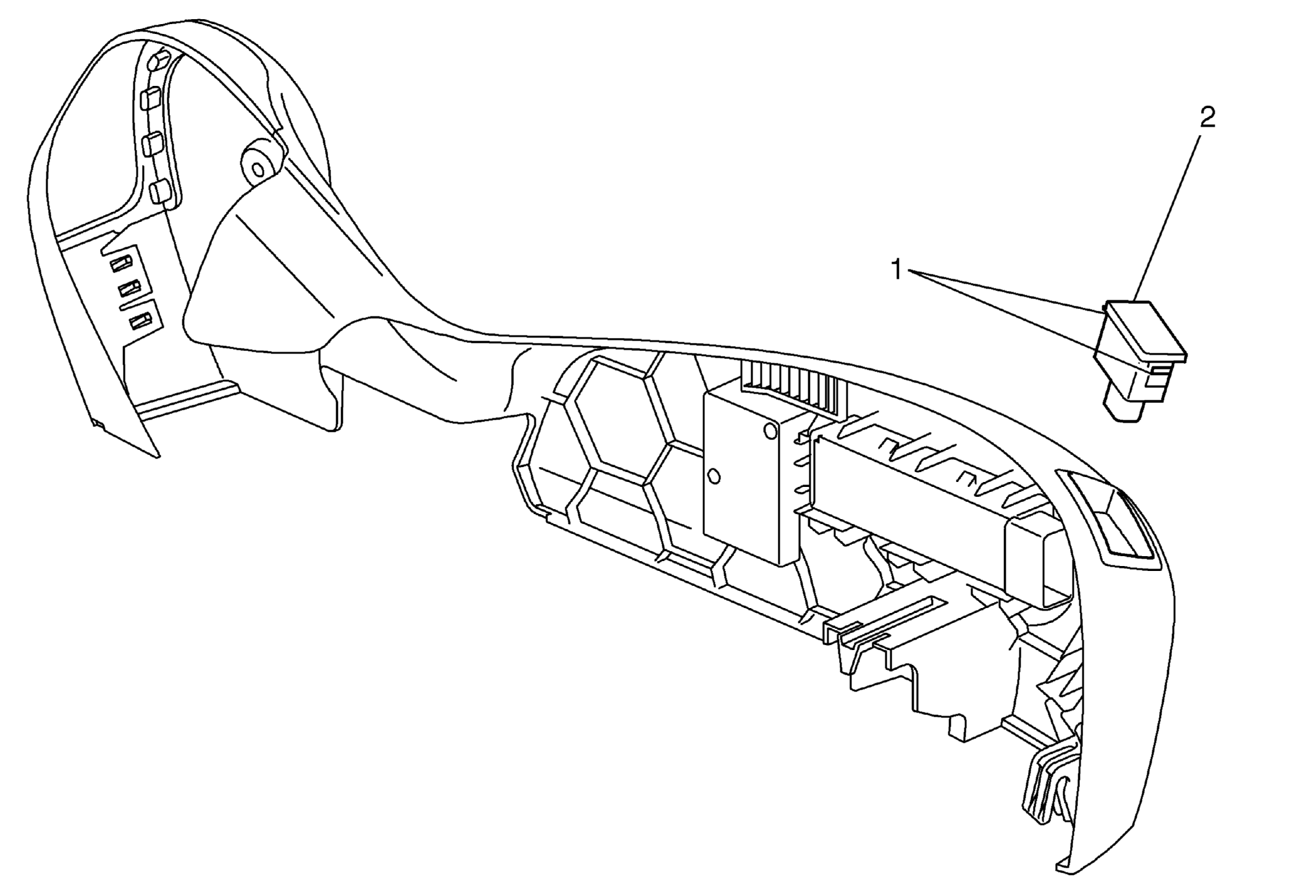

Fig 1: Driver Seat Adjuster Memory Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the front door. Remove the front seat adjuster finish cover. Refer to Driver or Passenger Seat Adjuster Finish Cover Replacement .
1	Driver Seat Adjuster Memory Retainer (Qty:2)
2	Driver Seat Adjuster Memory Switch

Callout

Component Name

Preliminary Procedures

Open the front door.
Remove the front seat adjuster finish cover. Refer to Driver or Passenger Seat Adjuster Finish Cover Replacement .

Driver Seat Adjuster Memory Retainer (Qty:2)

Driver Seat Adjuster Memory Switch
