Outside Rearview Mirror Inner Actuator Replacement

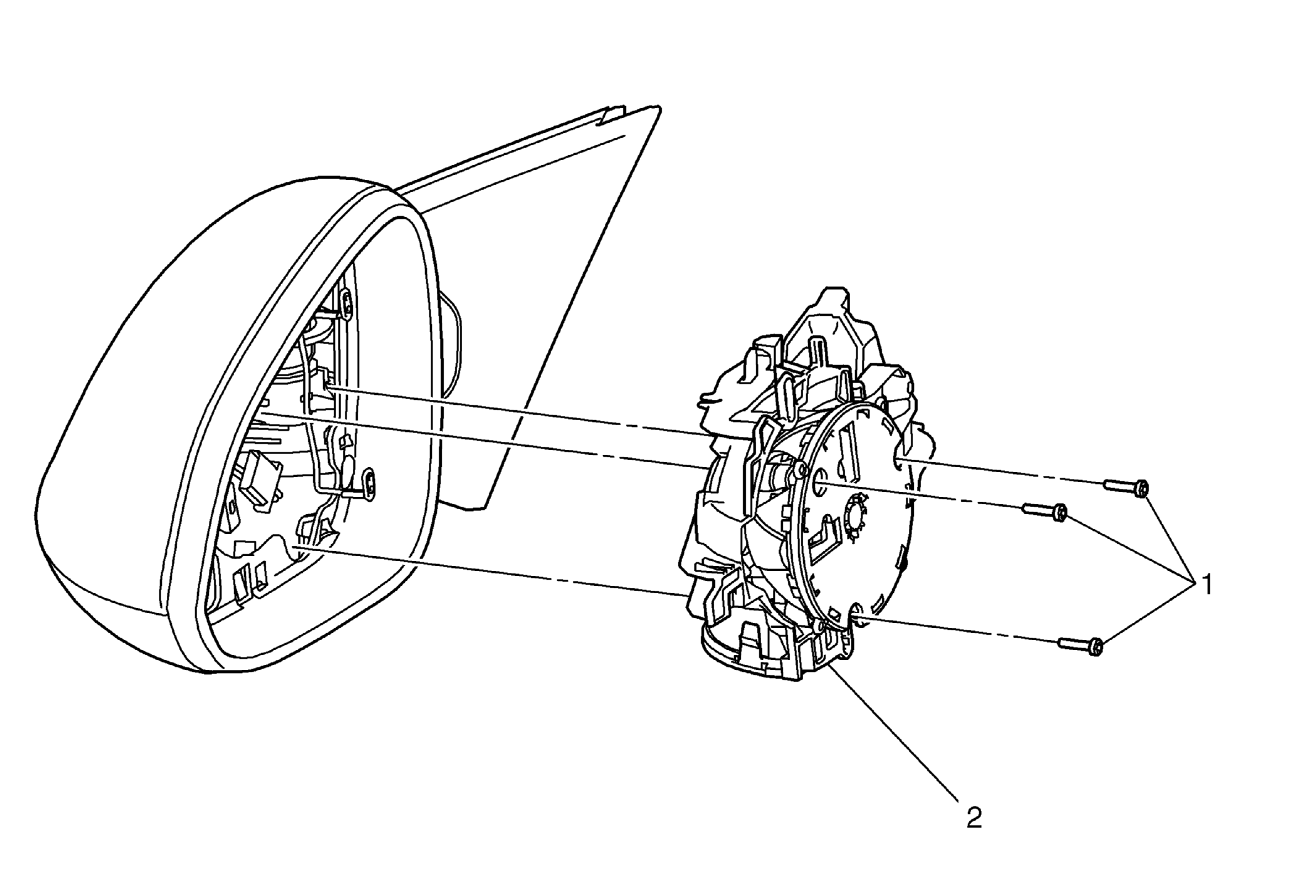

Fig 1: Outside Rearview Mirror Inner Actuator & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the outside rearview mirror glass. Refer to Outside Rearview Mirror Glass Replacement .
1	Outside Rearview Mirror Inner Actuator Fastener (Qty:3) CAUTION: Refer to Fastener Caution . Procedure  Disconnect the mirror electrical connector. Tighten  1.2 N.m (11 lb in)
2	Outside Rearview Mirror Inner Actuator
