Outside Rearview Mirror Glass Replacement

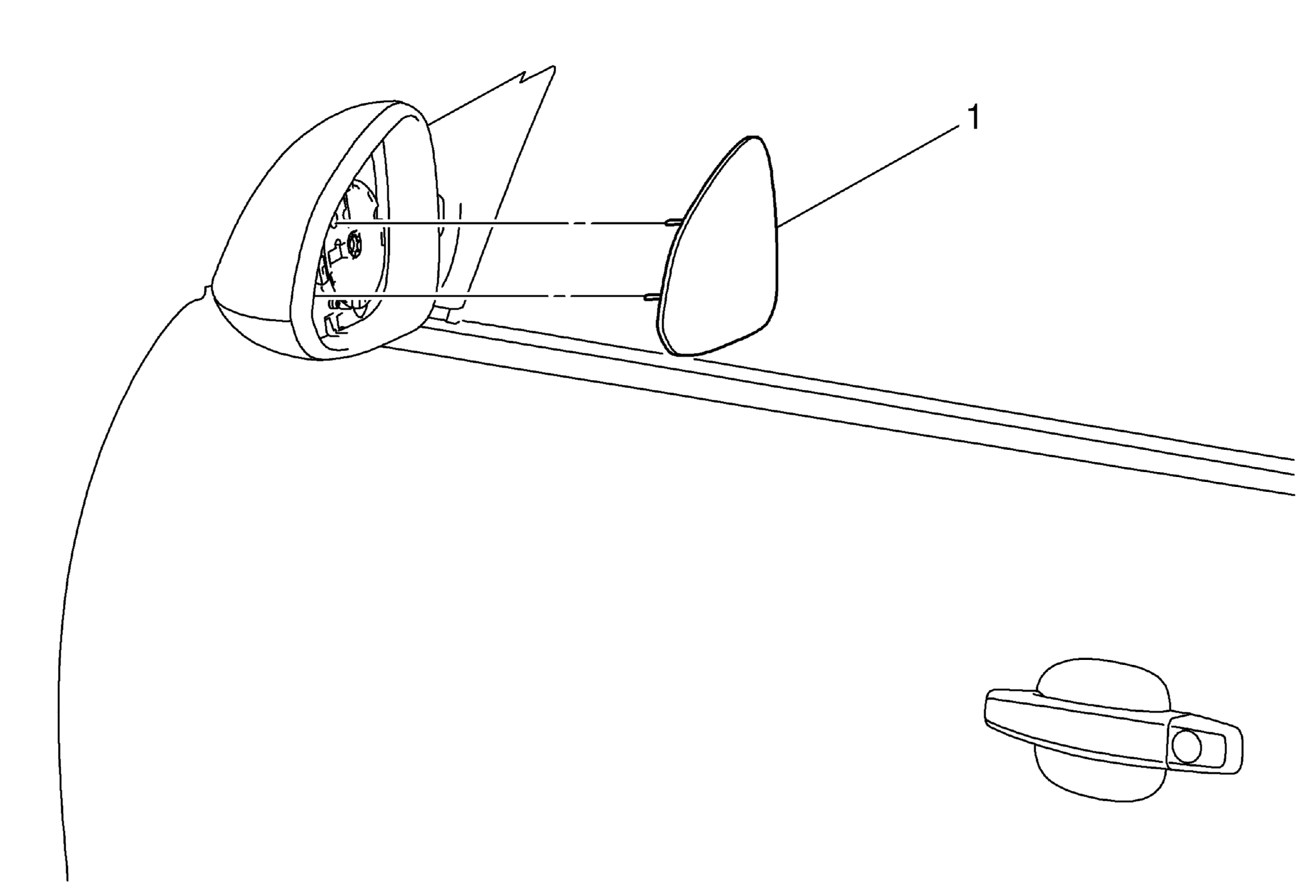

Fig 1: Outside Rearview Mirror Glass

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Outside Rearview Mirror Glass WARNING: Refer to Glass and Sheet Metal Handling Warning . Procedure Release the outside rearview mirror glass backing from the mirror housing by releasing the retaining tabs with an appropriate hook tool and pulling outward. Disconnect the power wire harness electrical connector.

Callout

Component Name

Outside Rearview Mirror Glass

WARNING:

Procedure

Release the outside rearview mirror glass backing from the mirror housing by releasing the retaining tabs with an appropriate hook tool and pulling outward.
Disconnect the power wire harness electrical connector.
