Drivetrain and Front Suspension Frame Transmission Protector Replacement (AWD)

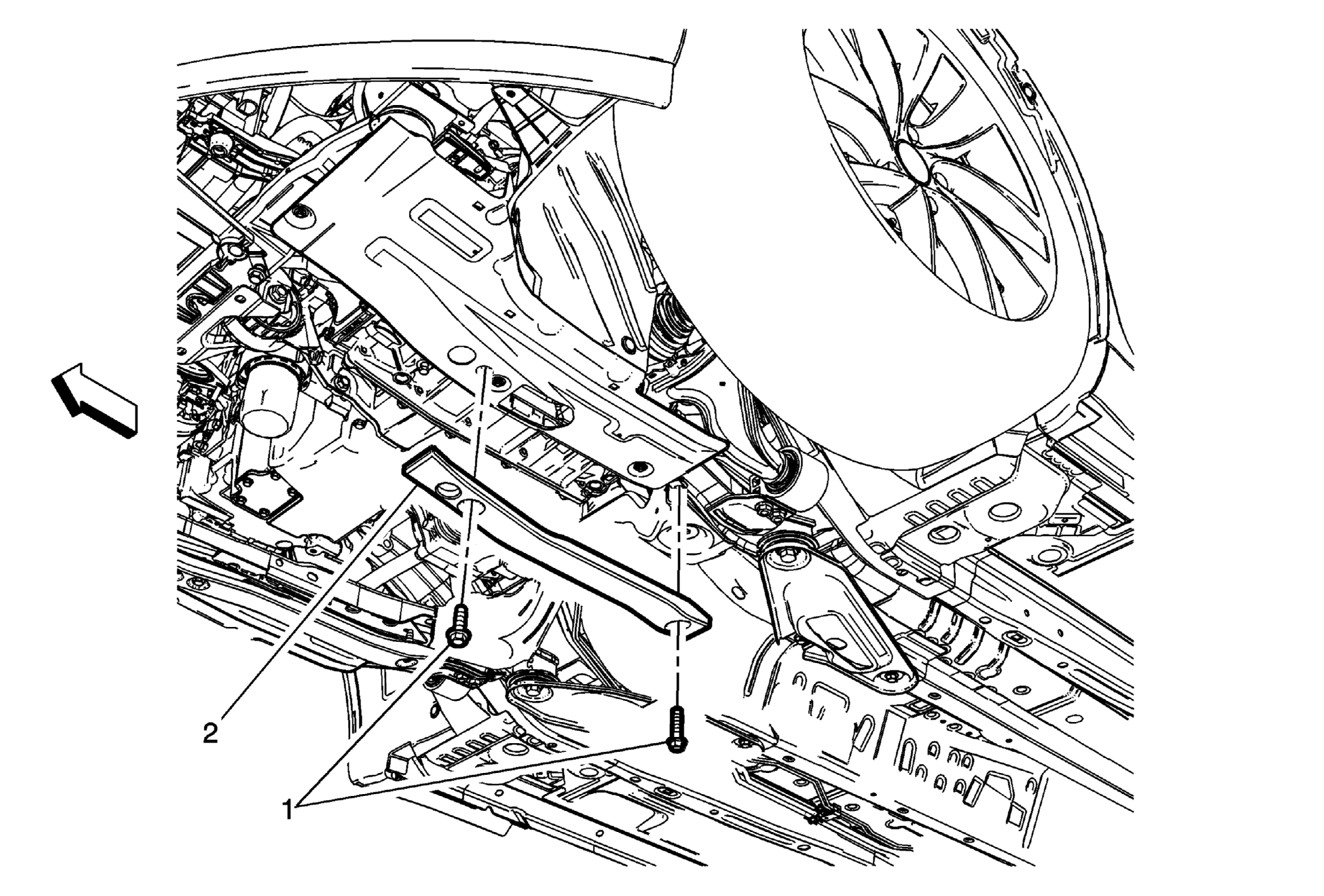

Fig 1: Drivetrain and Front Suspension Frame Transmission Protector (AWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Drivetrain and Front Suspension Frame Transmission Protector Fastener (Qty:2) CAUTION: Refer to Fastener Caution . Tighten:  35 N.m (26 lb ft)
2	Drivetrain and Front Suspension Frame Transmission Protector (Qty:2)
