Rear Compartment Floor Panel Trim Replacement (with Battery Cover, HP6)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear compartment floor panel trim (with blower cover,HP6). Refer to Rear Compartment Floor Panel Trim Replacement (With Battery Cover, HP6) . |
|

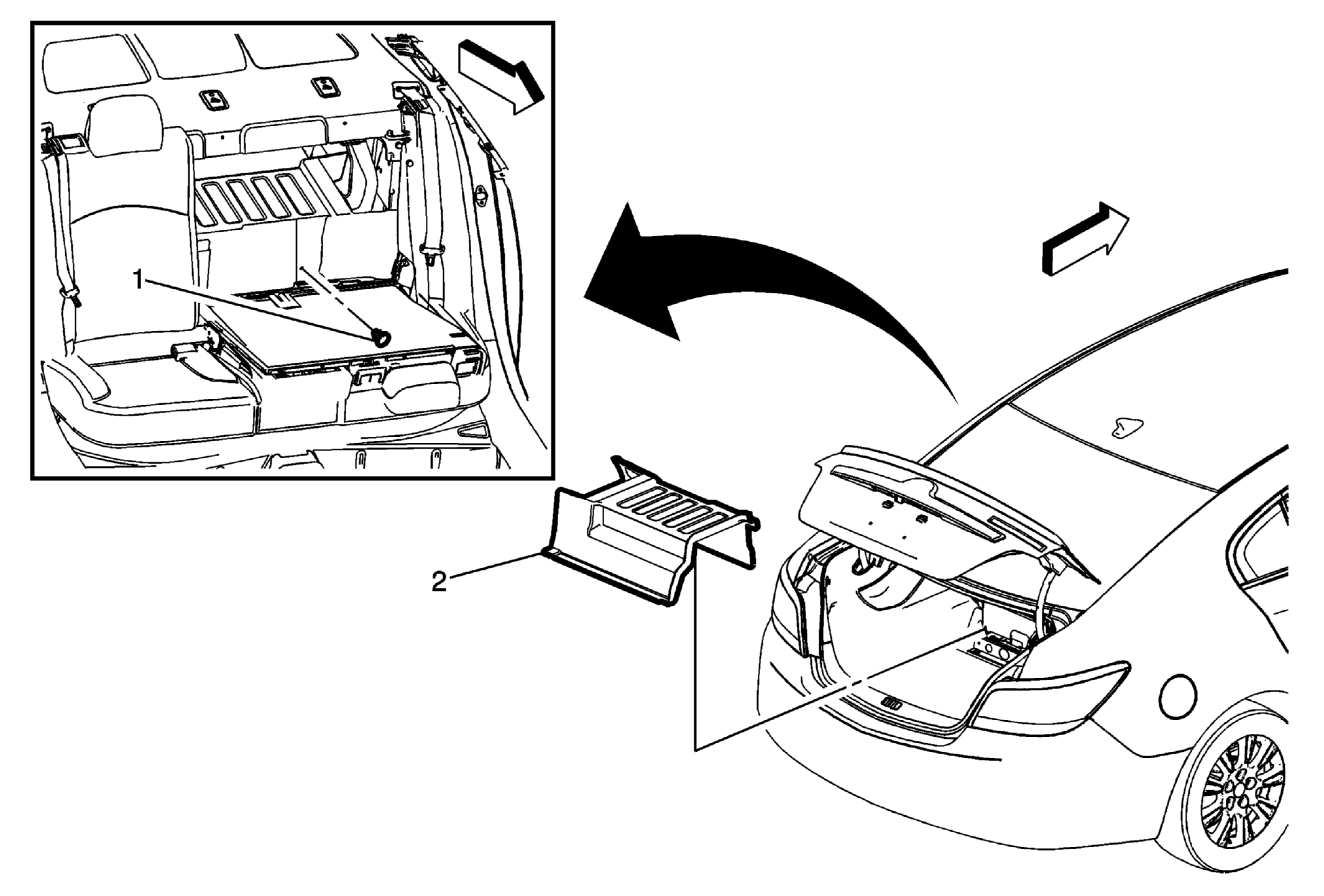

| 1 | Rear Compartment Side Trim Panel (Push-In) Retainer Procedure Pull the rear seat back cushion latch release located on the top of the rear seat back cushion, and fold the rear seat back cushion forward to access the rear compartment side trim panel (Push-In) retainer. |
| 2 | Rear Compartment Floor Panel Trim Assembly (with Battery Cover, HP6) |
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear compartment floor panel trim (with blower cover, HP6). Refer to Rear Compartment Floor Panel Trim Replacement (With Battery Cover, HP6) . |
|
| 1 | Rear Compartment Side Trim Panel (Push-In) Retainer Procedure Pull the rear seat back cushion latch release located on the top of the rear seat back cushion, and fold the rear seat back cushion forward to access the rear compartment side trim panel (Push-In) retainer. |
| 2 | Rear Compartment Floor Panel Trim Assembly (with Battery Cover, HP6) |
