Center Pillar Upper Garnish Molding Replacement

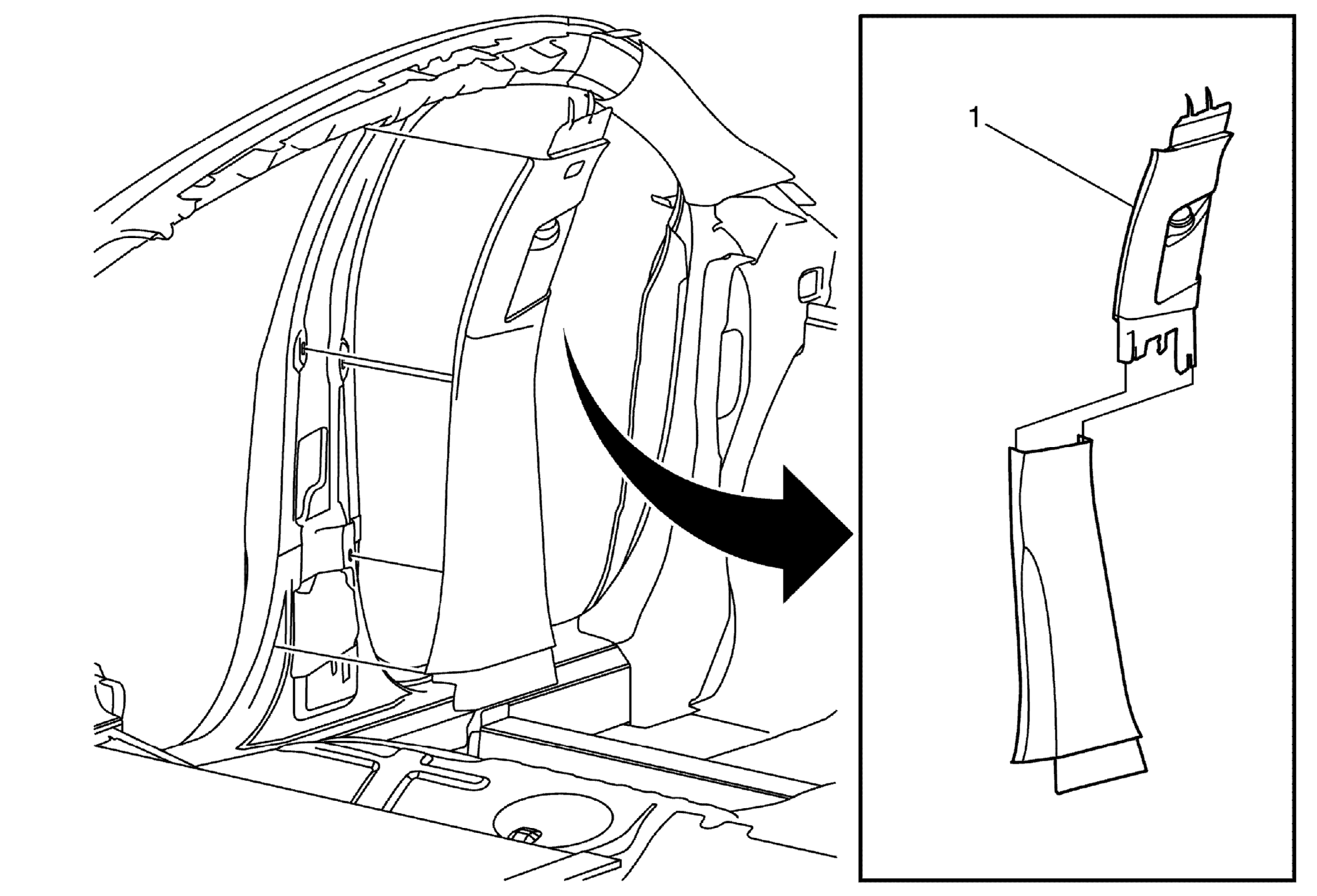

Fig 1: Center Pillar Upper Garnish Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front and rear side door sill trim plate. Refer to Front and Rear Side Door Sill Trim Plate Replacement .
1	Center Pillar Upper Garnish Molding Procedure Remove the center pillar upper and lower garnish molding assembly as one piece. Release the locking retainer on the rear side of the center pillar upper garnish molding to separate the upper from the lower.

Callout

Component Name

Preliminary Procedure
Remove the front and rear side door sill trim plate. Refer to Front and Rear Side Door Sill Trim Plate Replacement .

Center Pillar Upper Garnish Molding

Procedure

Remove the center pillar upper and lower garnish molding assembly as one piece.
Release the locking retainer on the rear side of the center pillar upper garnish molding to separate the upper from the lower.
