Instrument Panel Lower Extension Compartment Panel Replacement

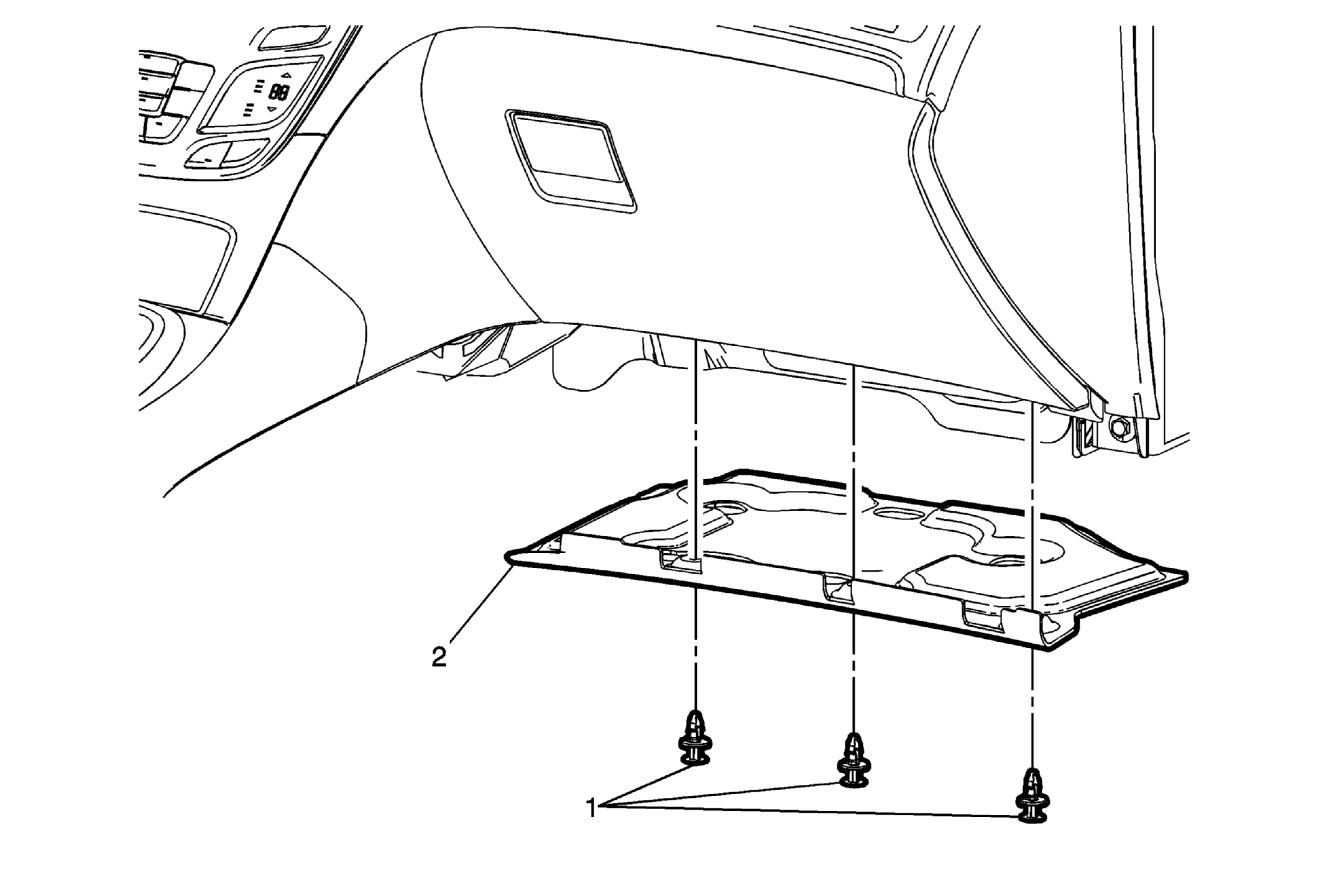

Fig 1: Instrument Panel Lower Extension Compartment Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Instrument Panel Lower Extension Compartment Panel Retainer (Qty:3)
2	Instrument Panel Lower Extension Compartment Panel Procedures Disconnect electrical connections, if applicable. When replacing the instrument panel lower extension compartment panel, transfer all necessary components.

Callout

Component Name

Instrument Panel Lower Extension Compartment Panel Retainer (Qty:3)

Instrument Panel Lower Extension Compartment Panel

Procedures

Disconnect electrical connections, if applicable.
When replacing the instrument panel lower extension compartment panel, transfer all necessary components.
