Front Floor Console Cup Holder Replacement

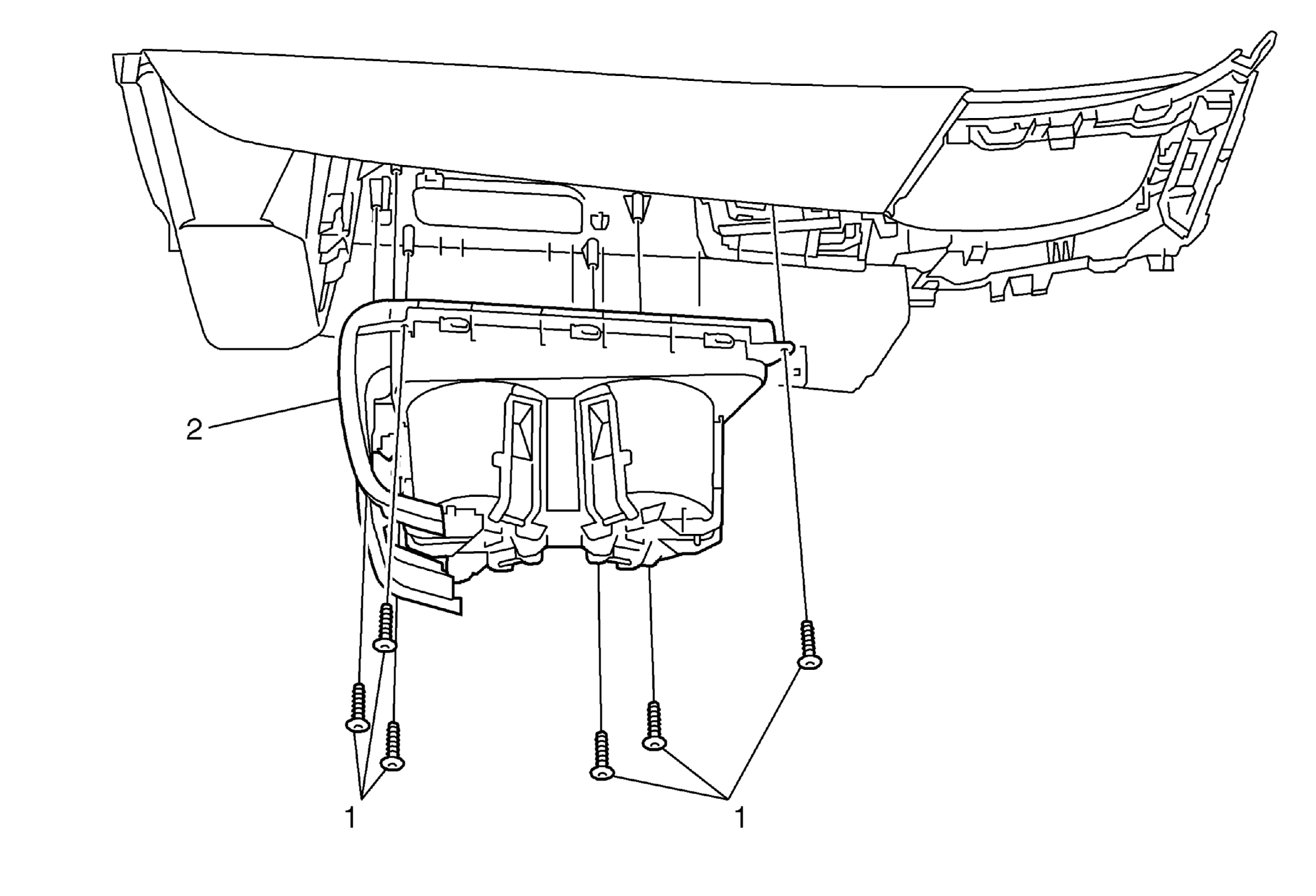

Fig 1: Front Floor Console Cup Holder And Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front floor upper console trim plate. Refer to Front Floor Upper Console Trim Plate Replacement .
1	Front Floor Console Cup Holder Fastener (Qty:6) CAUTION: Refer to Fastener Caution . Tighten  1.2 N.m (11 lb in)
2	Front Floor Console Cup Holder Procedure  When replacing the front floor console cup holder, transfer all necessary components.
