Front Floor Console Cover Replacement

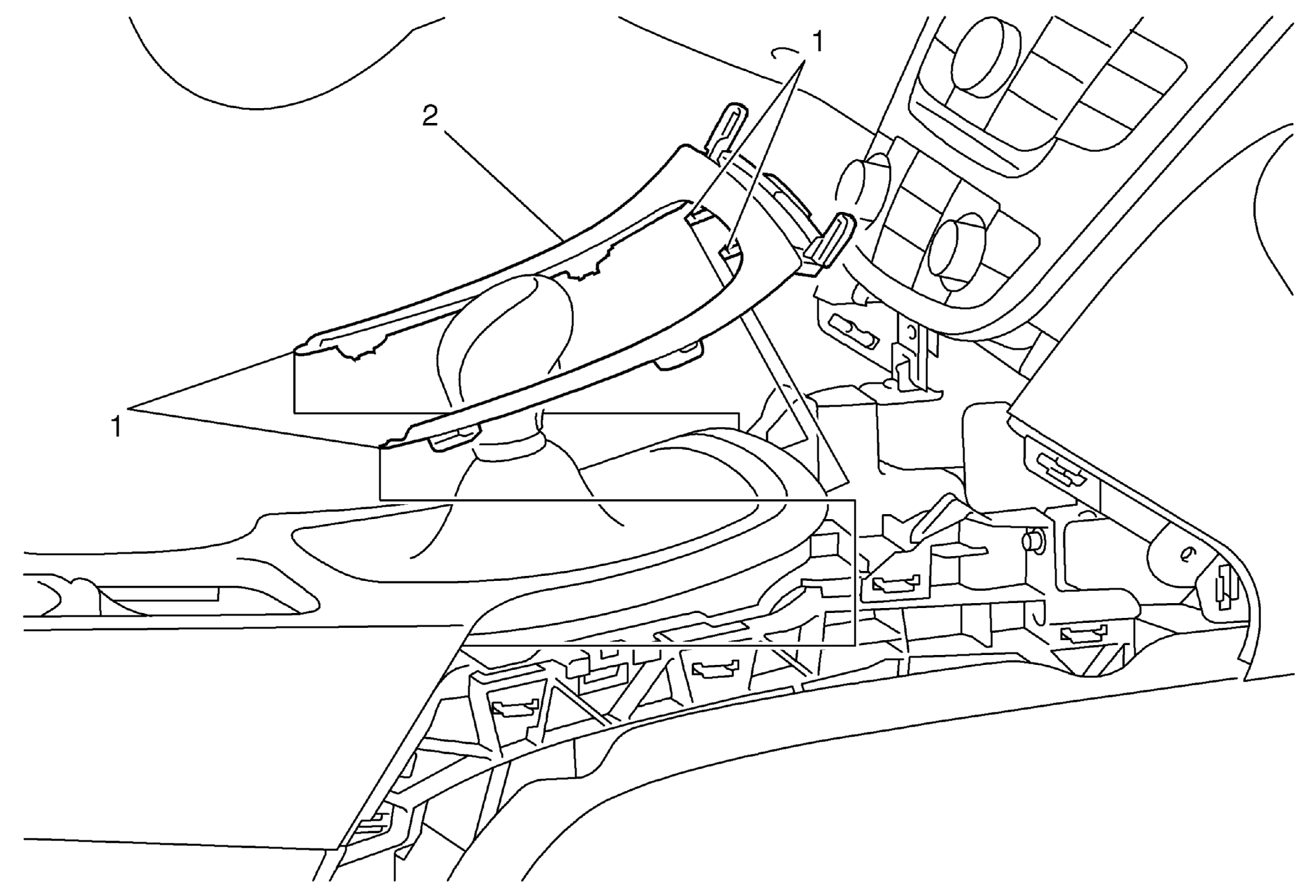

Fig 1: Front Floor Console Cover & Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove both front floor console extension panels. Refer to Front Floor Console Extension Panel Replacement . Remove instrument panel center compartment. Refer to Instrument Panel Center Compartment Replacement . Loosen the front floor console. Refer to Front Floor Console Replacement
1	Front Floor Console Cover Retainer (Qty:4) Procedure Use a flat-bladed plastic trim tool to release the front floor console cover from the front floor upper console trim plate.
2	Front Floor Console Cover

Callout

Component Name

Preliminary Procedures

Remove both front floor console extension panels. Refer to Front Floor Console Extension Panel Replacement .
Remove instrument panel center compartment. Refer to Instrument Panel Center Compartment Replacement .
Loosen the front floor console. Refer to Front Floor Console Replacement

Front Floor Console Cover Retainer (Qty:4)
Procedure
Use a flat-bladed plastic trim tool to release the front floor console cover from the front floor upper console trim plate.

Front Floor Console Cover
