Front Floor Console Compartment Replacement

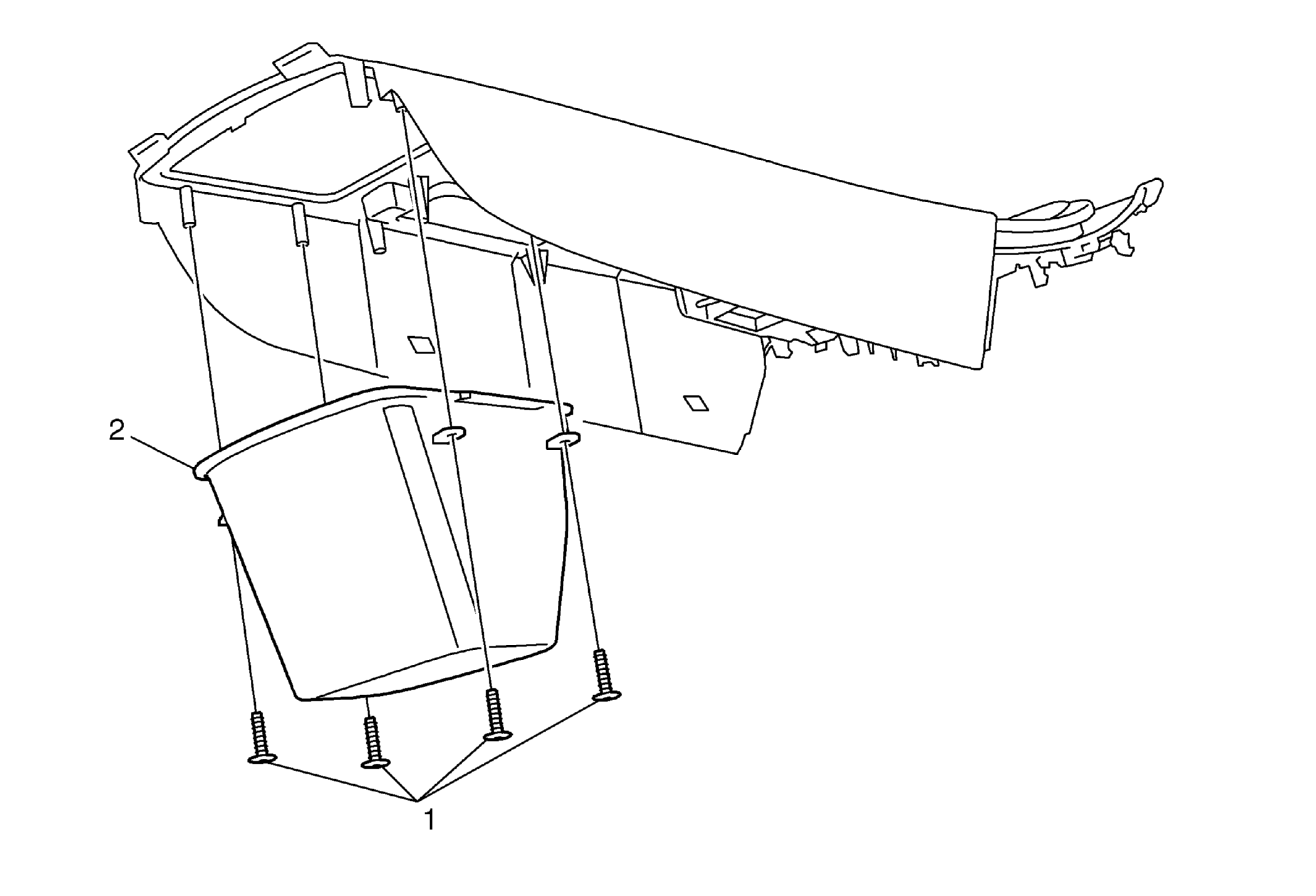

Fig 1: Front Floor Console Compartment And Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front floor upper console trim plate. Refer to Front Floor Upper Console Trim Plate Replacement .
1	Front Floor Console Compartment Fastener (Qty:4)
2	Front Floor Console Compartment
