Front Lower Grille Replacement

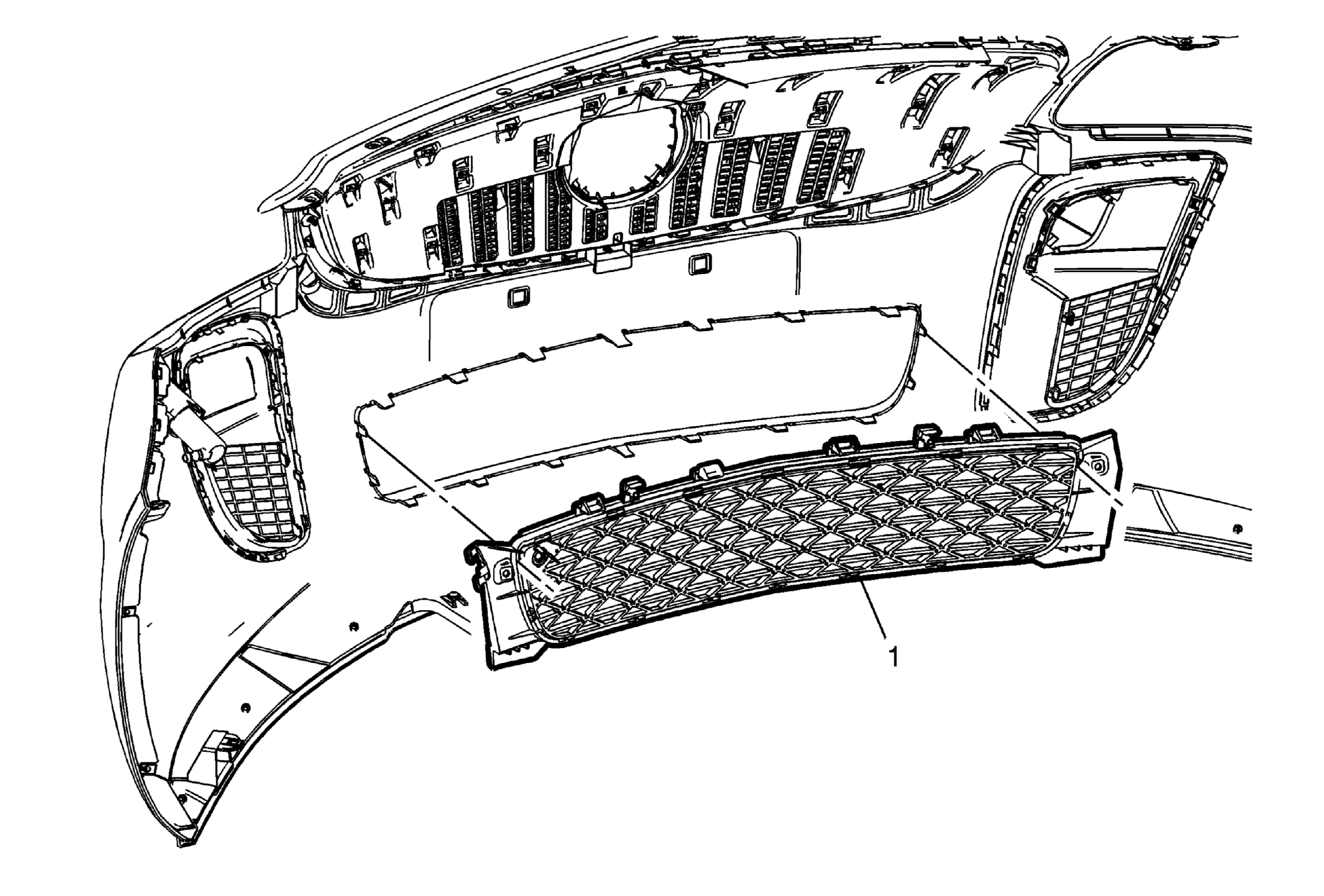

Fig 1: Front Lower Grille

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Front Lower Grille Procedure Release the locking tabs on the front lower grille and pull from the front bumper fascia.
