Front Grille Replacement

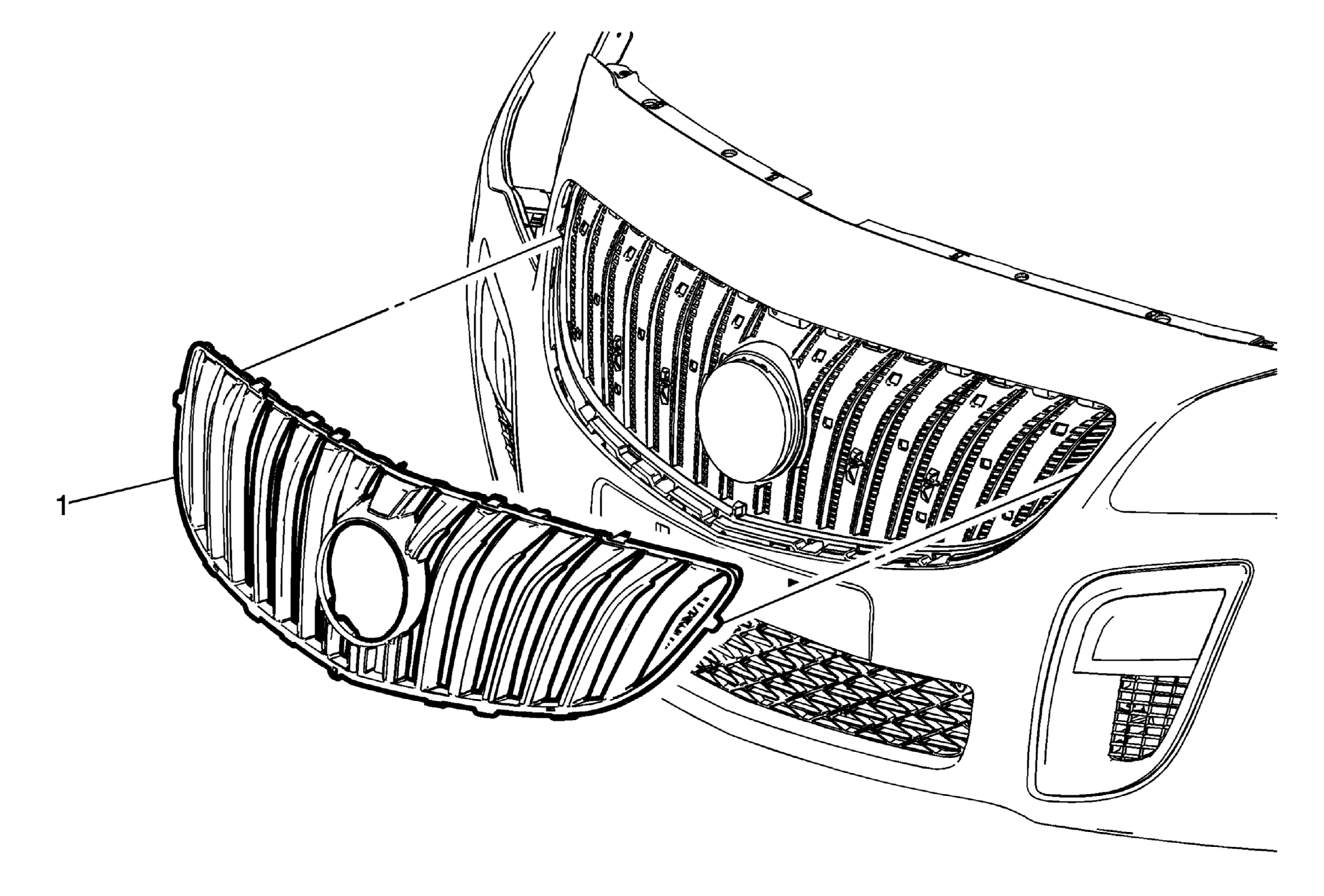

Fig 1: Front Grille

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Radiator Upper Grille Procedure Release the locking tabs from the front grille and pull from the front bumper fascia.
