Front Grille Emblem/Nameplate Replacement

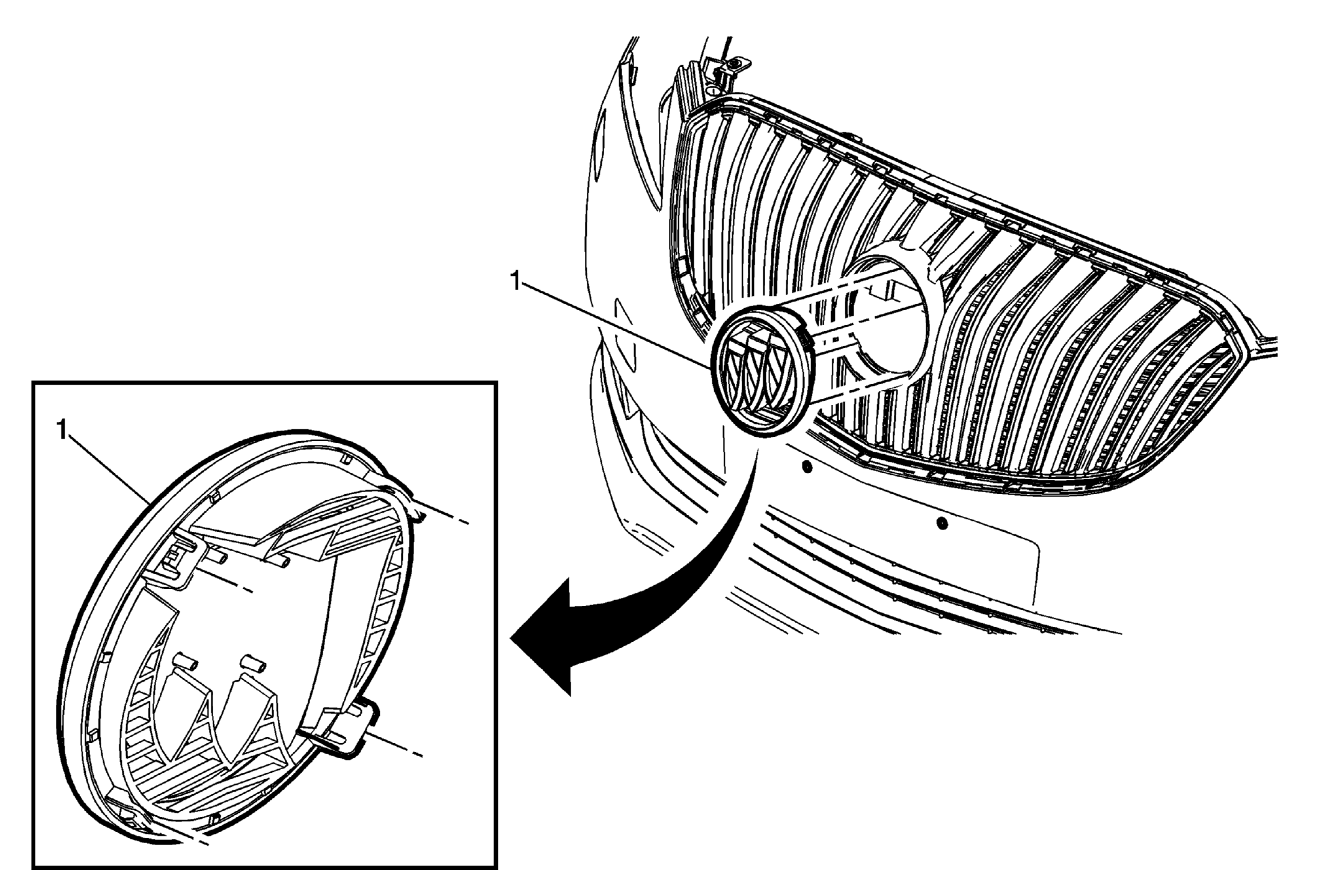

Fig 1: Front Grille Emblem/Nameplate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Front Grille Emblem Procedure  Using a suitable flat bladed tool release the 4 locking tabs and pull the front grille emblem forward.
