Front Bumper Fascia Outer Insert Replacement

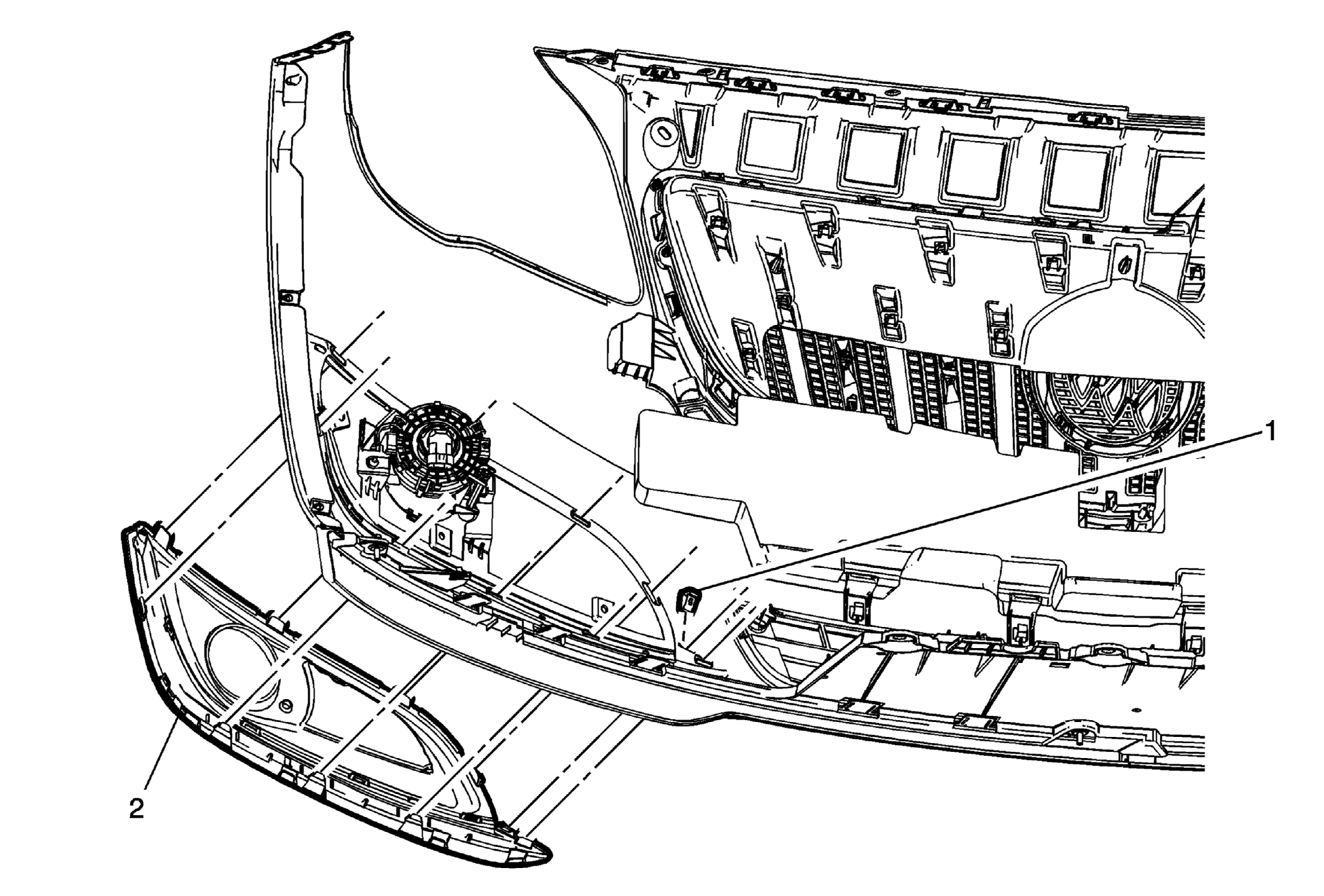

Fig 1: Front Bumper Fascia Outer Insert

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Front Bumper Fascia Outer Insert Molding Retainer
2	Front Bumper Fascia Outer Insert CAUTION: Refer to Exterior Trim Emblem Removal Caution . Procedure  Release the 9 locking tabs on the front bumper fascia outer insert and pull from the front bumper fascia.
