Front Bumper Fascia Outer Insert Molding Replacement

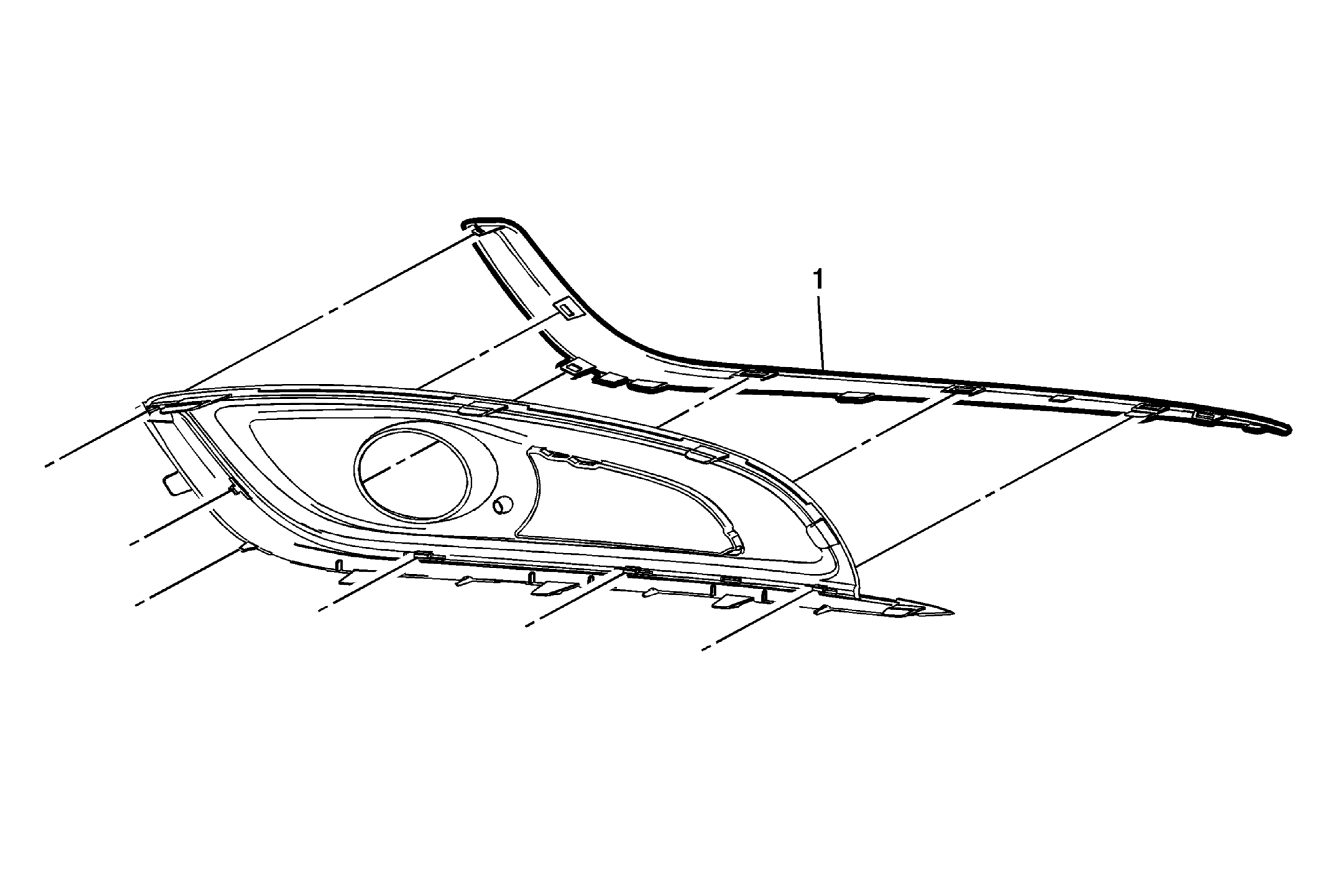

Fig 1: Front Bumper Fascia Outer Insert Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front bumper fascia outer insert. Refer to Front Bumper Fascia Outer Insert Replacement .
1	Front Bumper Fascia Outer Insert Molding CAUTION: Refer to Exterior Trim Emblem Removal Caution . Procedure  Release the 6 locking tabs on the front bumper fascia outer insert molding and pull from the front bumper fascia outer insert.
