Front Bumper Fascia Outer Insert Molding Replacement (GS)

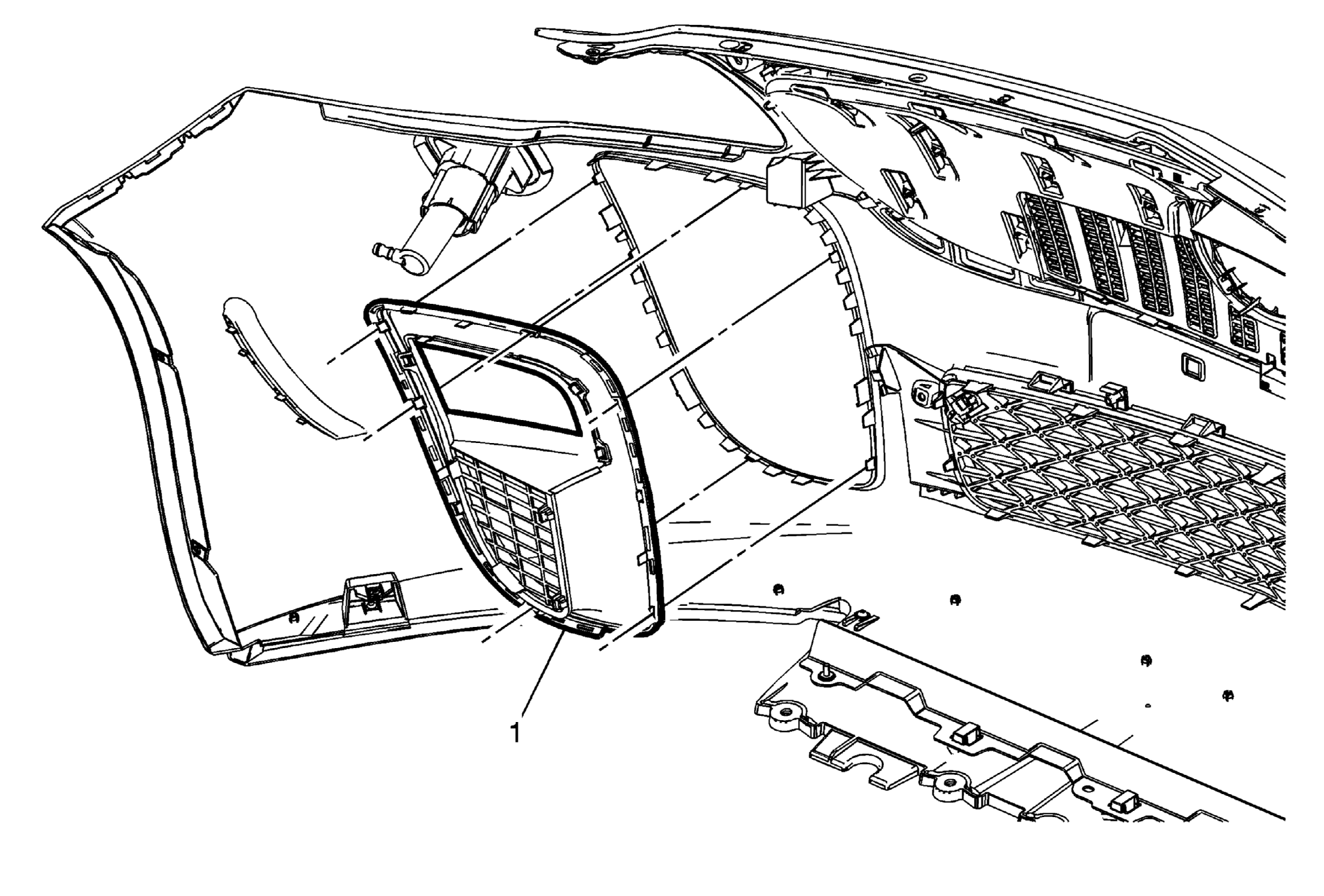

Fig 1: Front Bumper Fascia Outer Insert Molding (GS)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Front Bumper Fascia Outer Insert Molding Procedure  Release the locking tabs on the front bumper fascia outer insert molding and pull from the front bumper fascia.
