Rear Bumper Fascia Lower Bracket Replacement

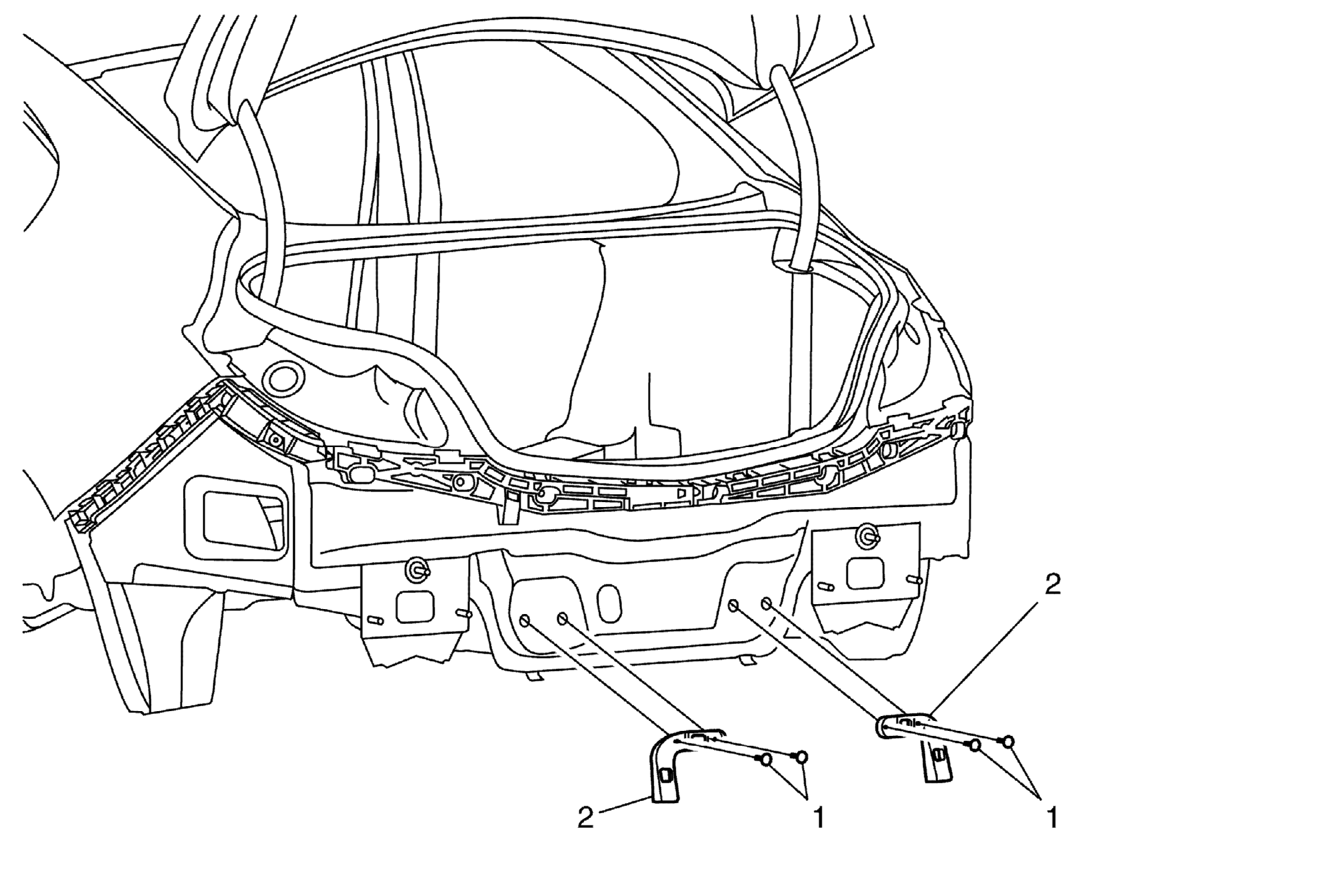

Fig 1: Rear Bumper Fascia Lower Brackets & Rivets

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement . Remove the rear bumper impact bar. Refer to Rear Bumper Impact Bar Replacement .
1	Rear Bumper Fascia Lower Bracket Rivet (Qty:4)
2	Rear Bumper Fascia Lower Bracket

Callout

Component Name

Preliminary Procedure

Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
Remove the rear bumper impact bar. Refer to Rear Bumper Impact Bar Replacement .

Rear Bumper Fascia Lower Bracket Rivet (Qty:4)

Rear Bumper Fascia Lower Bracket
